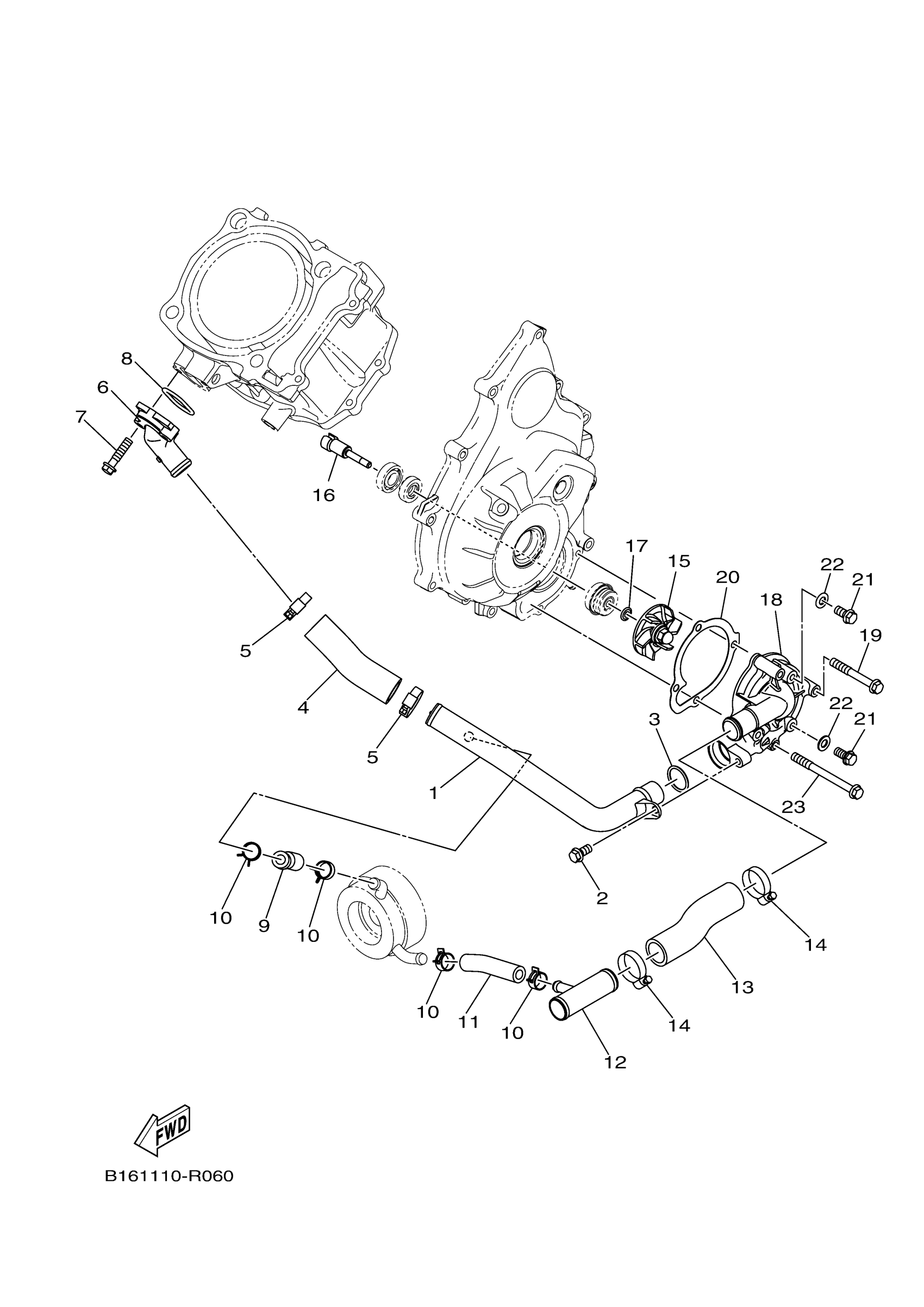

Yamaha YFM70KDXHR (KODIAK 700 4WD) B16A1 2017 WATER PUMP Diagram

#

Description
Price

1

PIPE 1

B16-E2481-00-00

Unavailable

2

BOLT 1

2MB-E5481-60-00

$0.87

3

O-RING

2MB-E2439-00-00

$4.09

4

HOSE,3

B16-E243F-00-00

$43.34

5

CLAMP, HOSE 1

2MB-E1387-00-00

$9.91

6

JOINT 1

2MB-E2469-00-00

$27.13

7

BOLT 1

2MB-E5481-20-00

Unavailable

8

O-RING

2MB-E2843-00-00

$3.69

9

HOSE, 4

B16-E244G-00-00

$8.57

10

CLIP

B16-E2486-00-00

$2.06

11

HOSE 2

B16-E243E-00-00

Unavailable

12

PIPE 4

B16-E2484-00-00

$43.90

13

HOSE 6

B16-E244J-00-00

$27.12

14

CLAMP, HOSE 1

2MB-E1387-00-00

$9.91

15

IMPELLER, WATER PU

2MB-E2451-00-00

$31.19

16

SHAFT, IMPELLER

2MB-E2458-00-00

Unavailable

17

SEAL, WATER PUMP

2MB-E243M-00-00

Unavailable

18

COVER, HOUSING

B16-E2422-00-00

Unavailable

19

BOLT 1

2MB-E5481-B0-00

Unavailable

20

GASKET, HOUSING CO

2MB-E2428-00-00

Unavailable

21

BOLT 1

2MB-E5481-60-00

$0.87

22

GASKET

2MB-E2435-00-00

Unavailable

23

BOLT 1

2MB-E5481-70-00

Unavailable
