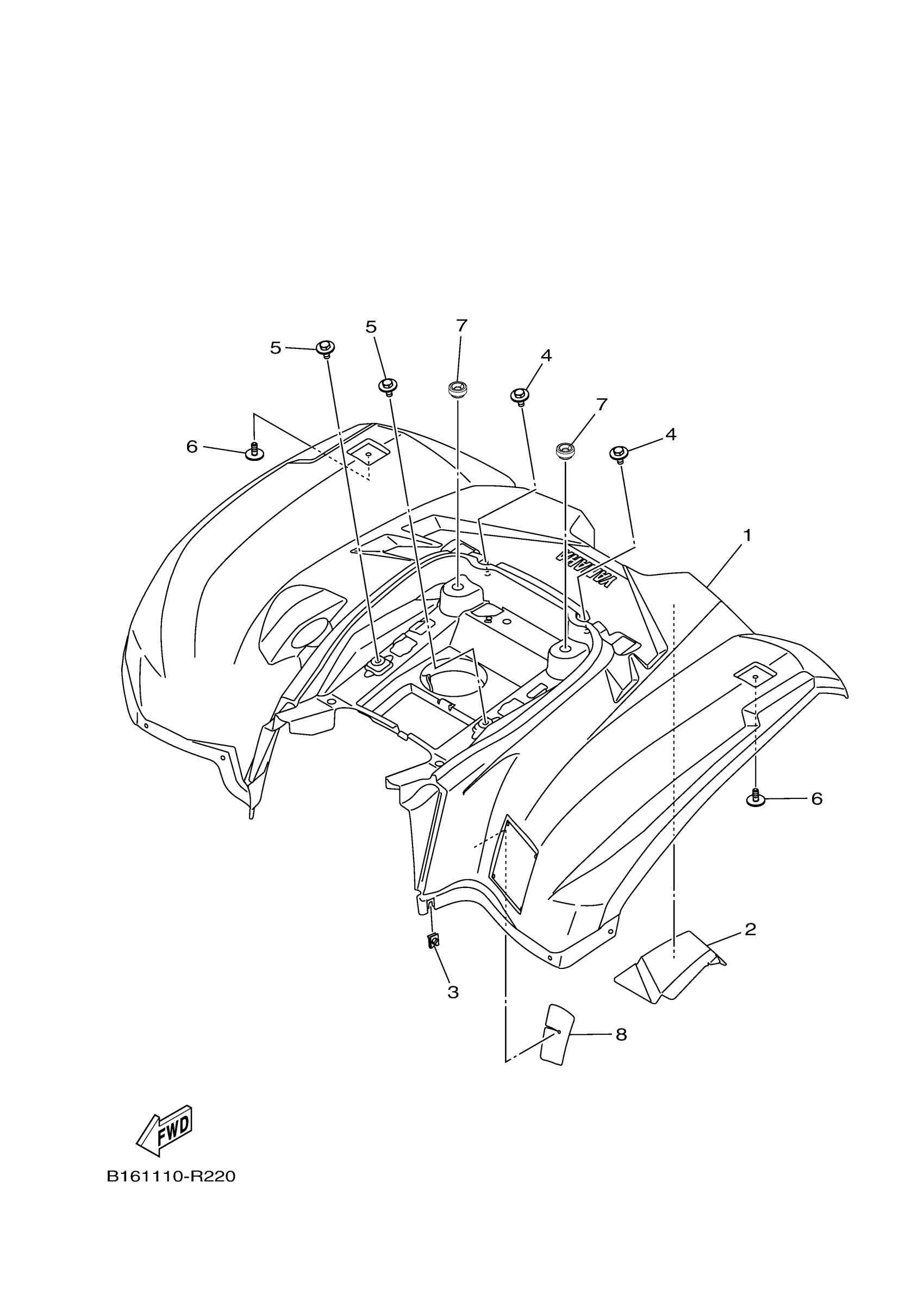

Yamaha YFM70KDXHR (KODIAK 700 4WD) B16A1 2017 REAR FENDER Diagram

#

Description

Price

1

REAR FENDER ASSY (PASTEL DEEP GREEN)

B16-F1600-00-00

$153.15

2

PROTECTOR

B16-21652-00-00

$21.56

3

NUT, SPRING(4ES)

90183-06069-00

$5.69

4

BOLT, WITH WASHER

90119-06152-00

$2.56

5

BOLT, WITH WASHER

90119-06152-00

$2.56

6

BOLT, WITH WASHER

90119-06152-00

$2.56

7

GROMMET

90480-16807-00

$1.20

8

SEAL

B16-F1669-02-00

$2.89
