Partiron

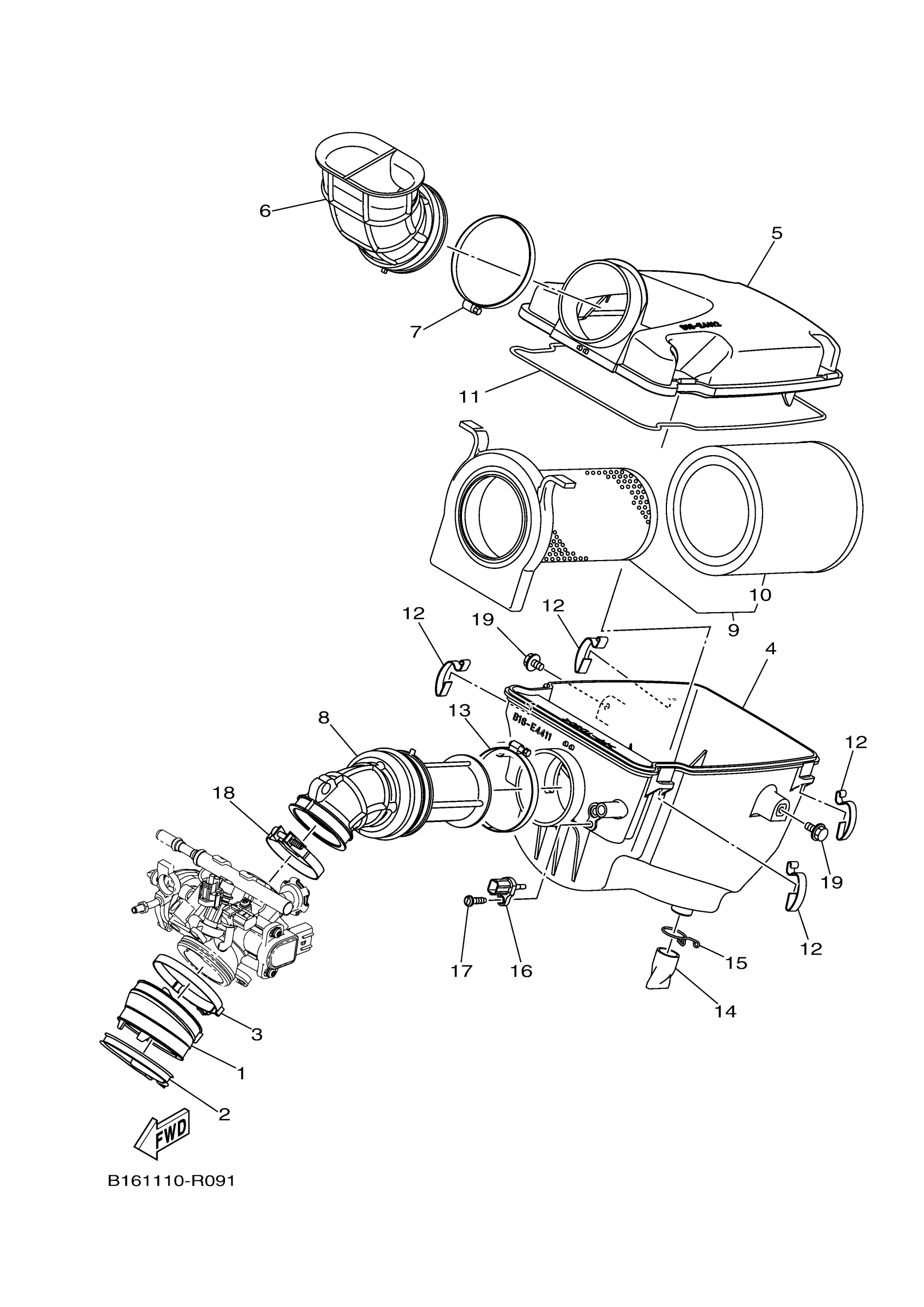

Yamaha YFM70KDXHR (KODIAK 700 4WD) B16A1 2017 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR

2MB-E3586-00-00

$32.91

2

CLAMP, HOSE 2

2MB-E1388-00-00

$16.89

3

HOSE CLAMP ASSY

90450-72004-00

$15.94

4

CASE, AIR CLEANER

B16-E4411-01-00

Unavailable

5

CAP,CLEANER CASE 1

B16-E4412-01-00

$22.29

6

DUCT

B16-E4437-10-00

$29.63

7

BAND

B16-E4455-00-00

$6.74

8

JOINT, AIR CLEANER

B16-E4453-00-00

$83.36

9

ELEMENT ASSY, AIR

BVG-E4450-00-00

Unavailable

10

ELEMENT, AIR CLEAN

BVG-E4451-00-00

Unavailable

11

SEAL

B16-E4457-00-00

$5.92

12

CLIP, CAP FITTING

B16-E4424-00-00

$2.64

13

BAND

B16-E4456-00-00

$6.74

14

PIPE, DRAIN

B16-E443E-00-00

$2.56

15

CLIP

90467-220A1-00

$4.81

16

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

17

SCREW, PANHEAD TAPPING

97702-50520-00

Unavailable

18

HOSE CLAMP ASSY

90450-62006-00

Unavailable

19

BOLT, FLANGE

95812-06010-00

Unavailable
