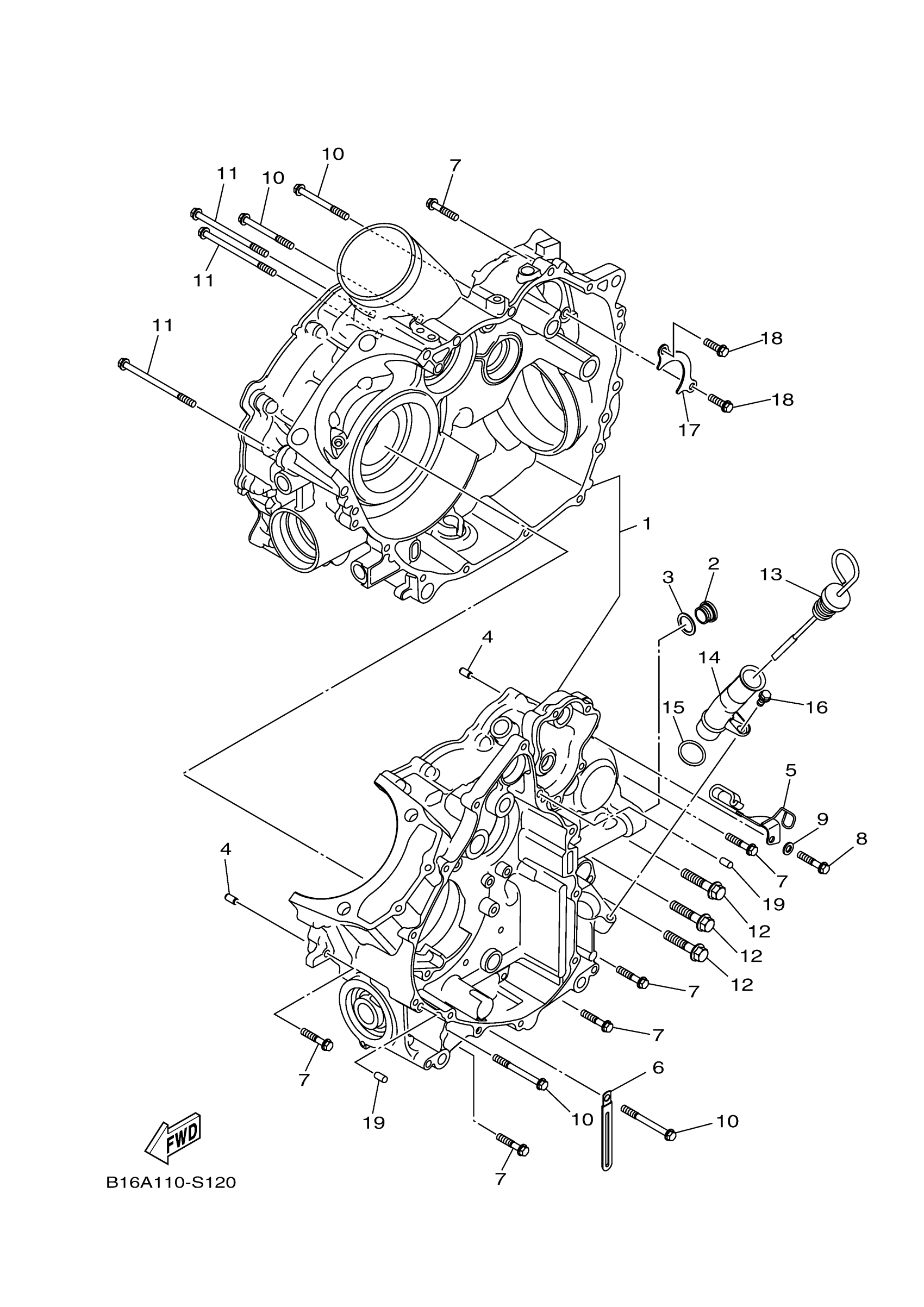

Yamaha YFM70KDXHR (KODIAK 700 4WD) B16A1 2017 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

2MB-E5100-01-00

Unavailable

2

PLUG, BLIND 1

2MB-E5167-00-00

$5.49

3

GASKET, BLIND PLUG

2MB-E5175-00-00

$0.94

4

PIN, DOWEL

2MB-E5184-00-00

$1.98

5

HOLDER

B16-E546C-00-00

Unavailable

6

CLAMP 2

B16-E5484-00-00

$2.55

7

BOLT 1

2MB-E5481-50-00

Unavailable

8

BOLT 1

B16-E5481-00-00

Unavailable

9

WASHER

B16-E5158-00-00

Unavailable

10

BOLT 1

2MB-E5481-C0-00

$1.98

11

BOLT 1

2MB-E5481-90-00

$3.90

12

BOLT

2MB-E2623-00-00

Unavailable

13

PLUG, OIL LEVEL

3B4-15362-01-00

$25.99

14

PIPE, OIL

3B4-15112-02-00

$56.99

15

O-RING

2MB-E2439-00-00

$4.84

16

BOLT 1

2MB-E5481-60-00

Unavailable

17

PLATE, BEARING COV

2MB-E5388-00-00

Unavailable

18

BOLT 1

2MB-E5481-10-00

Unavailable

19

PIN, DOWEL

2MB-E5184-00-00

$1.98
