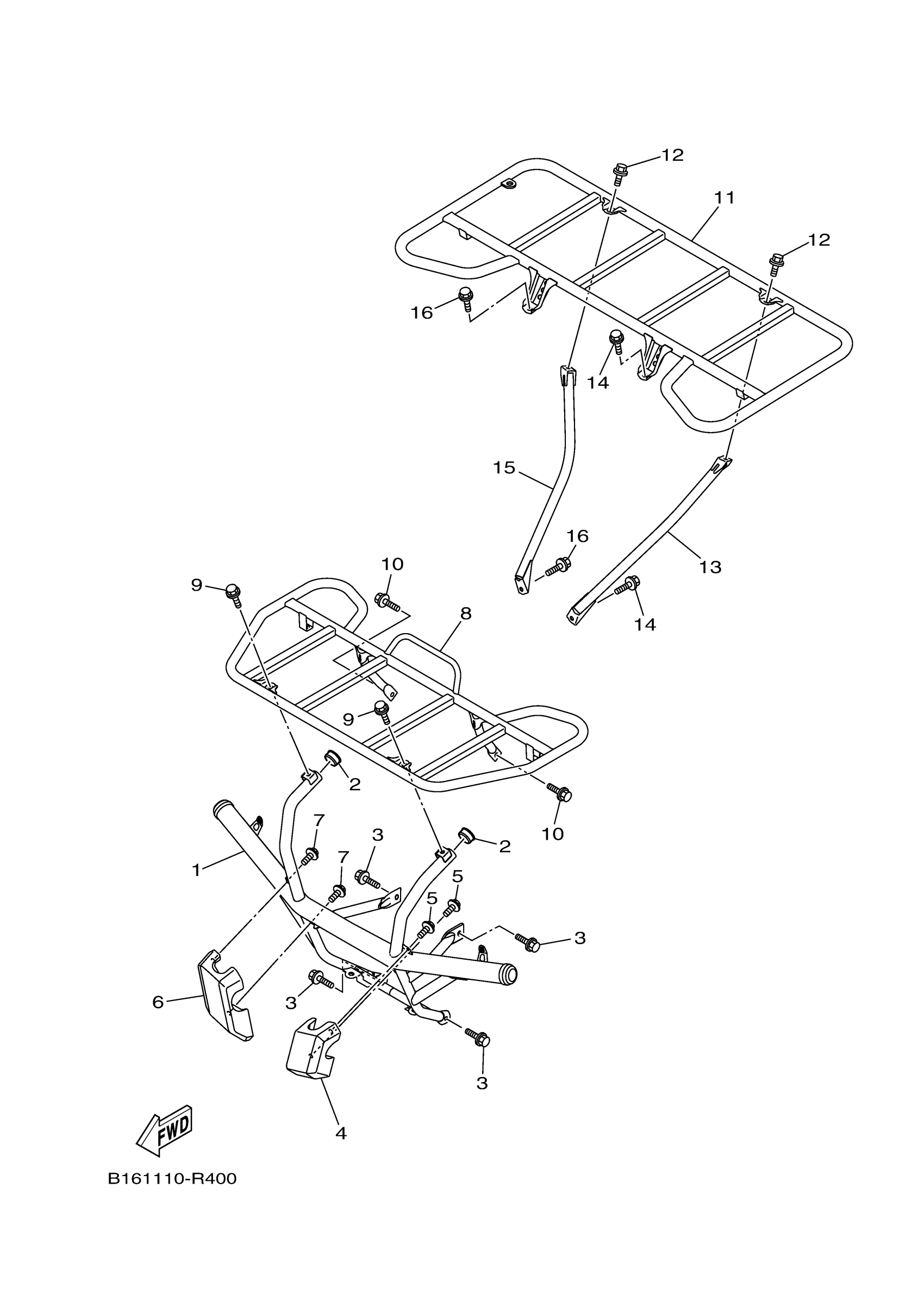

Yamaha YFM70KDXGR (KODIAK 700 4WD) B161 2016 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

B16-F845N-01-00

Unavailable

2

PLUG

90338-26004-00

$5.93

3

BOLT, FLANGE

95817-08014-00

$1.81

4

COVER 1

B16-F842M-01-00

$26.56

5

BOLT, FLANGE

95812-06010-00

$2.71

6

COVER 2

B16-F842N-01-00

$25.18

7

BOLT, FLANGE

95812-06010-00

$2.71

8

CARRIER, FRONT

B16-F4841-01-00

Unavailable

9

BOLT, FLANGE

95817-08012-00

$3.71

10

BOLT, WITH WASHER

90119-08118-00

$5.39

11

CARRIER, REAR

B16-F4842-00-00

$187.12

12

BOLT, FLANGE

95817-08014-00

$1.81

13

FRAME, CARRIER 1

B16-F482J-00-00

$37.04

14

BOLT, WITH WASHER

90119-10044-00

$6.08

15

FRAME, CARRIER 2

B16-F482K-00-00

$37.04

16

BOLT, WITH WASHER

90119-10044-00

$6.08
