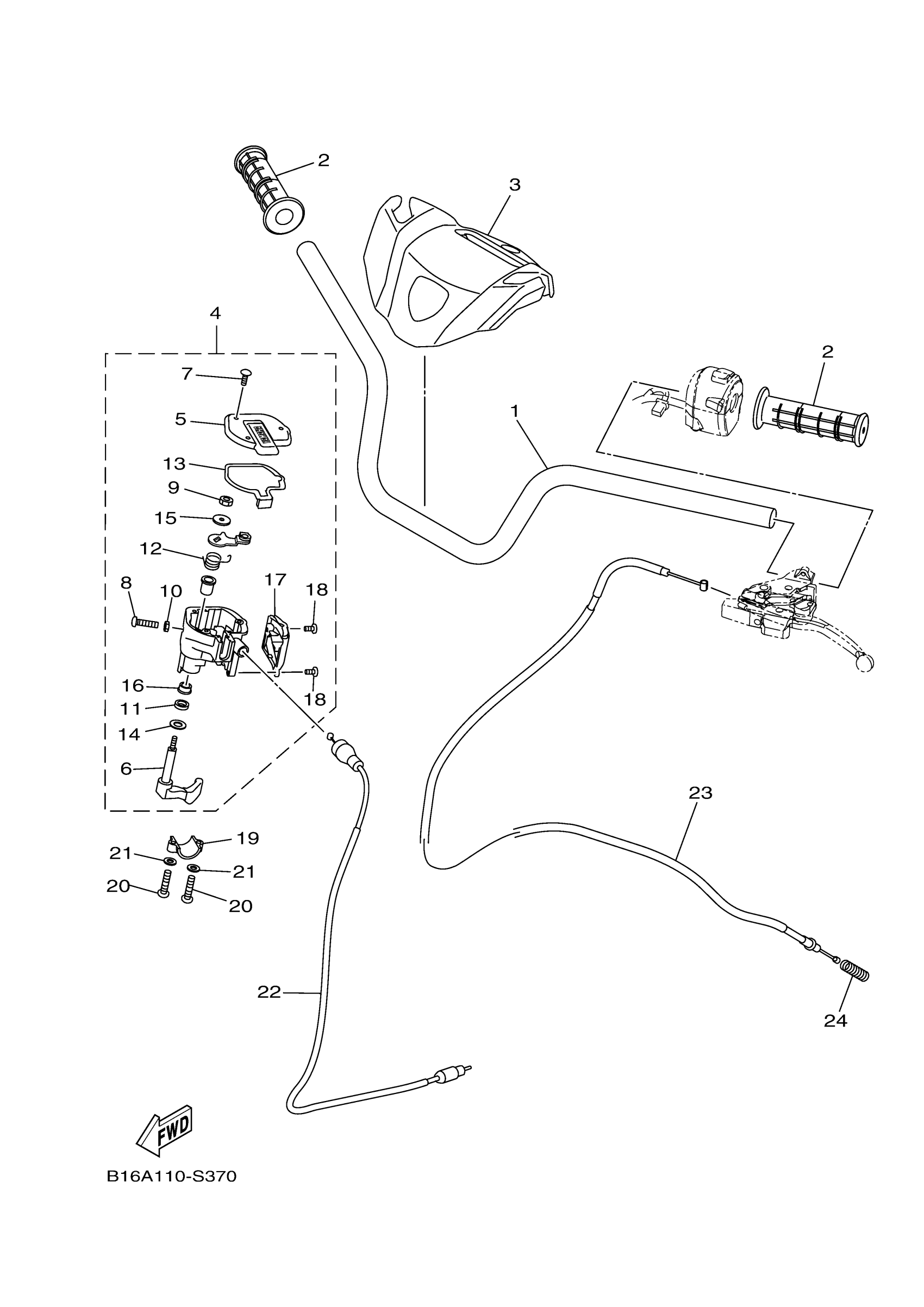

Yamaha YFM70KDHHH (KODIAK 700 4WD HUNTER) B16D 2017 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

B16-F6111-00-00

Unavailable

2

GRIP

5FU-F6241-10-00

$17.49

3

PROTECTOR, HANDLEB

B16-F6124-00-00

Unavailable

4

THROTTLE LEVER ASS

B16-26250-01-00

$109.99

5

CAP, GEAR

28P-2628F-00-00

$35.99

6

LEVER, THROTTLE

28P-2625G-01-00

$55.99

7

SCREW(3HE)

90149-04278-00

$2.39

8

SCREW, PAN HEAD

98517-05020-00

$4.25

9

NUT, U

95617-05100-00

$9.49

10

NUT, HEXAGON SMALL

95317-05700-00

$8.49

11

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

12

SPRING

1NV-26304-00-00

$11.99

13

GASKET

28P-2628G-00-00

$7.99

14

WASHER

1NV-26129-00-00

$6.99

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

COLLAR

1NV-2625K-00-00

Unavailable

17

COVER

B16-26477-00-00

Unavailable

18

SCREW, BINDING

98907-04008-00

Unavailable

19

HOLDER, LEVER LOWER 1

1S3-82913-00-00

Unavailable

20

SCREW, PAN HEAD

98517-05020-00

$4.25

21

WASHER, PLAIN (646)

92990-05600-00

Unavailable

22

CABLE, THROTTLE 1

B16-26311-00-00

Unavailable

23

WIRE, BRAKE 1

B16-26341-01-00

Unavailable

24

SPRING, COMPRESSIO

90501-121A2-00

Unavailable
