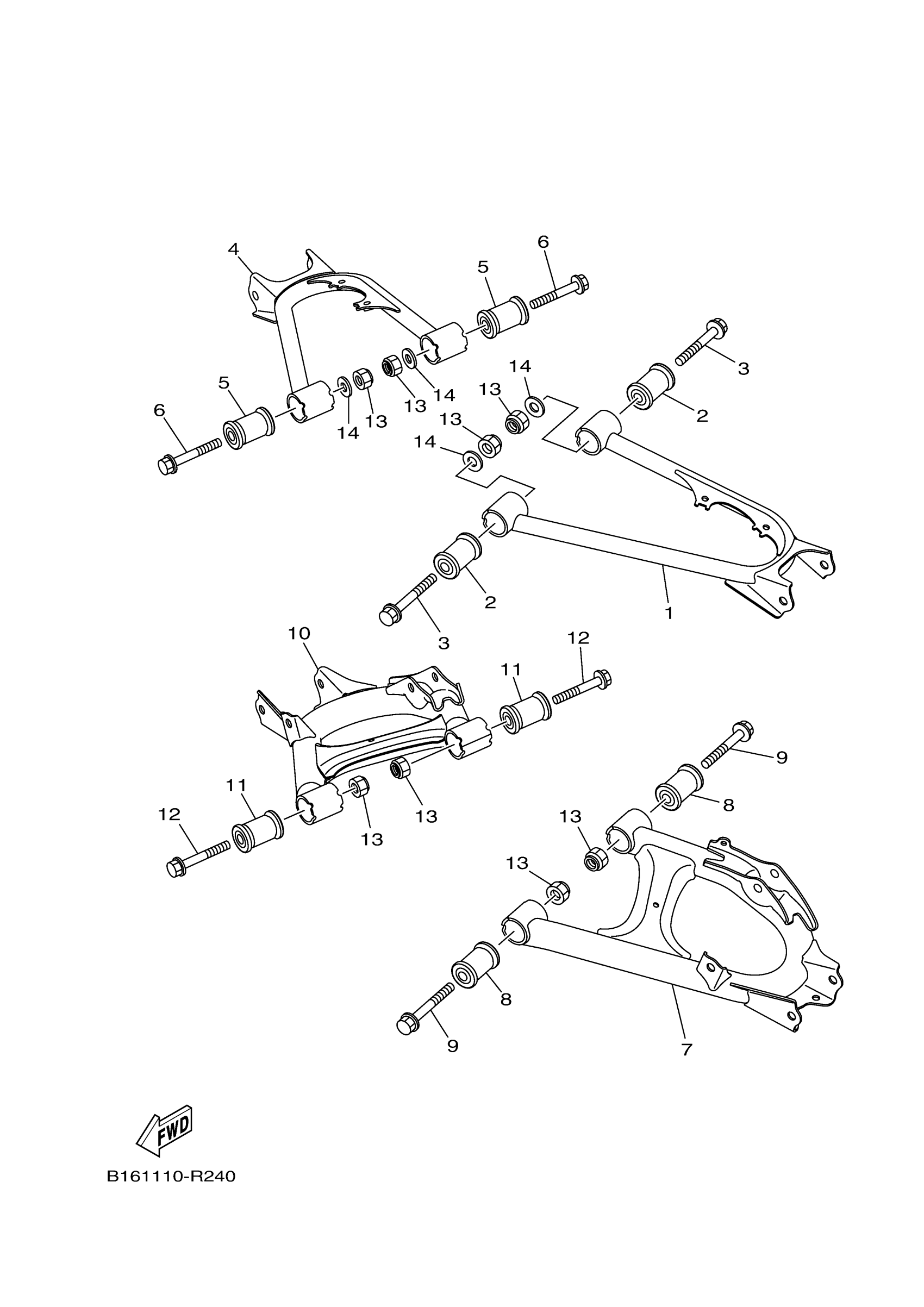

Yamaha YFM70KDHHH (KODIAK 700 4WD HUNTER) B16D 2017 REAR ARM Diagram

#

Description

Price

1

ARM,REAR 1

1HP-F2171-01-00

$31.62

2

BUSH

1HP-F3526-00-00

$20.42

3

BOLT, WASHER BASED

90105-10011-00

$8.55

4

ARM, REAR 2

1HP-F2172-01-00

$30.42

5

BUSH

1HP-F3526-00-00

$20.42

6

BOLT, WASHER BASED

90105-10011-00

$8.55

7

ARM 1

1HP-F217M-01-00

$58.24

8

BUSH

1HP-F3526-00-00

$20.42

9

BOLT, WASHER BASED

90105-10011-00

$8.55

10

ARM 2

1HP-F217N-01-00

Unavailable

11

BUSH

1HP-F3526-00-00

$20.42

12

BOLT, WASHER BASED

90105-10011-00

$8.55

13

NUT, SELF-LOCKING

90185-10012-00

$2.78

14

WASHER, PLATE

90201-10035-00

$3.33
