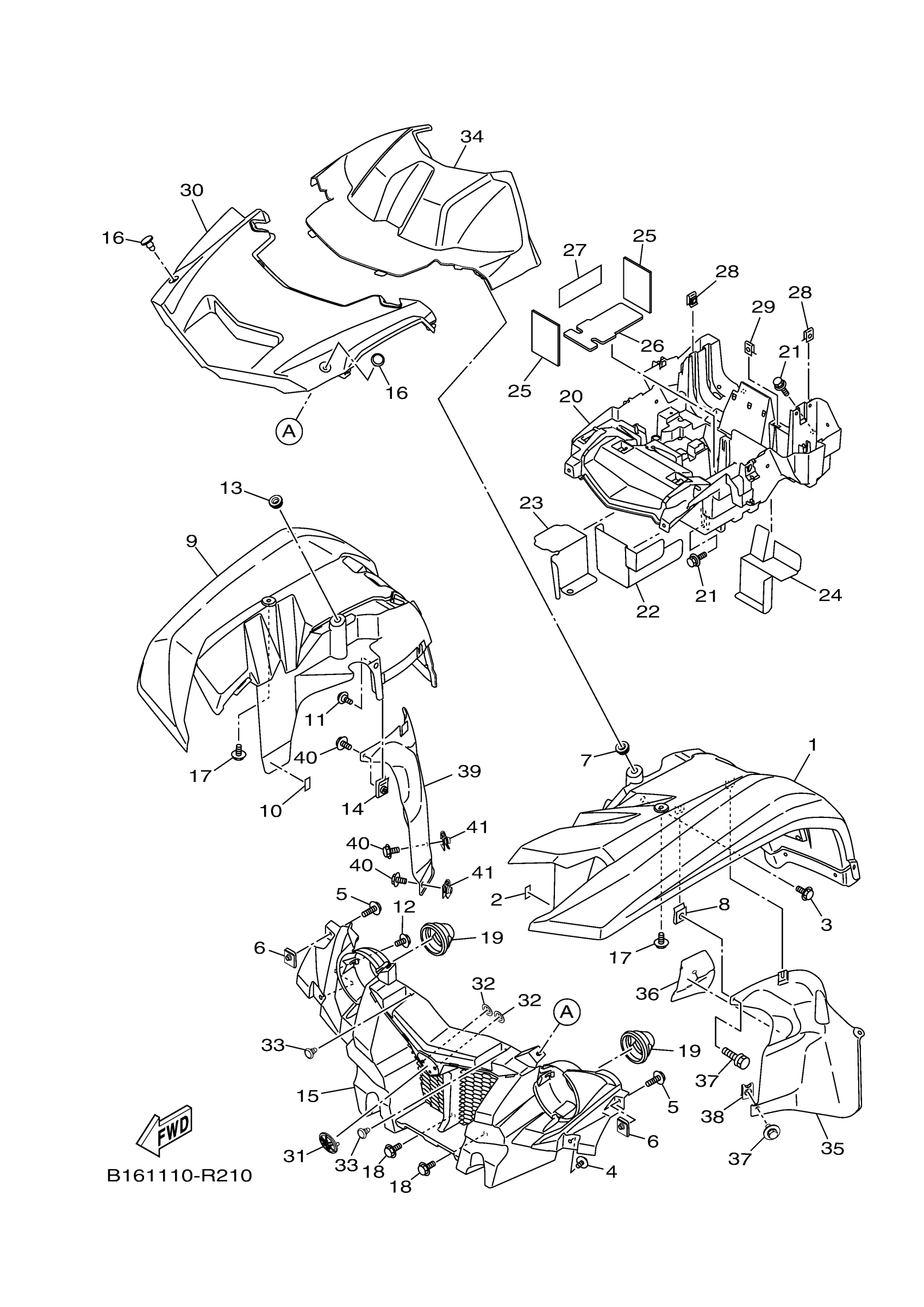

Yamaha YFM70KDHHH (KODIAK 700 4WD HUNTER) B16D 2017 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

B16-F1500-60-00

$289.14

2

DAMPER 1

3B4-21541-00-00

$2.28

3

BOLT

90109-06043-00

Unavailable

4

BOLT, WITH WASHER

90119-06152-00

$2.56

5

BOLT, WITH WASHER(3RB)

90119-05193-00

$1.15

6

NUT, SPRING

90183-051A0-00

$2.49

7

GROMMET

90480-13014-00

$6.39

8

NUT, SPRING(4ES)

90183-06069-00

$5.69

9

FRONT FENDER COMP.

B16-F1501-00-00

$286.09

10

DAMPER 1

3B4-21541-00-00

$2.28

11

BOLT

90109-06043-00

Unavailable

12

BOLT, WITH WASHER

90119-06152-00

$2.56

13

GROMMET

90480-13014-00

$6.39

14

NUT, SPRING(4ES)

90183-06069-00

$5.69

15

GRILLE, FRONT

B16-F8309-00-00

$32.59

16

RIVET

90269-07010-00

Unavailable

17

BOLT, WITH WASHER

90119-06152-00

$2.56

18

BOLT

90109-06043-00

Unavailable

19

CAP

5UH-F8349-00-00

Unavailable

20

BOX, BATTERY 1

1HP-H212B-02-00

Unavailable

21

BOLT, WITH WASHER

90119-06152-00

$2.56

22

INSULATOR 1

1HP-H253E-01-00

Unavailable

23

INSULATOR 2

1HP-H253F-00-00

Unavailable

24

INSULATOR

1HP-H254E-01-00

Unavailable

25

INSU.

3B4-8233W-10-00

Unavailable

26

SEAT, BATTERY

3B4-82122-00-00

Unavailable

27

DAMPER

1HP-H2176-01-00

Unavailable

28

NUT, SPRING(4ES)

90183-06069-00

$5.69

29

NUT, SPRING

90183-05008-00

Unavailable

30

PANEL, FRONT

B16-F3391-00-00

Unavailable

31

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

32

NUT, SPRING

90183-06071-00

$0.50

33

RIVET

90269-07010-00

Unavailable

34

PANEL, ACCESSORY

B16-F839R-00-00

Unavailable

35

FENDER, INNER

1HP-F1552-00-00

Unavailable

36

SEAL 1

1HP-F1575-01-00

Unavailable

37

BOLT, WITH WASHER

90119-06152-00

$2.56

38

NUT, SPRING(4ES)

90183-06069-00

$5.69

39

FENDER, INNER 2

1HP-F1553-00-00

Unavailable

40

BOLT, WITH WASHER

90119-06152-00

$2.56

41

NUT, SPRING(4ES)

90183-06069-00

$5.69
