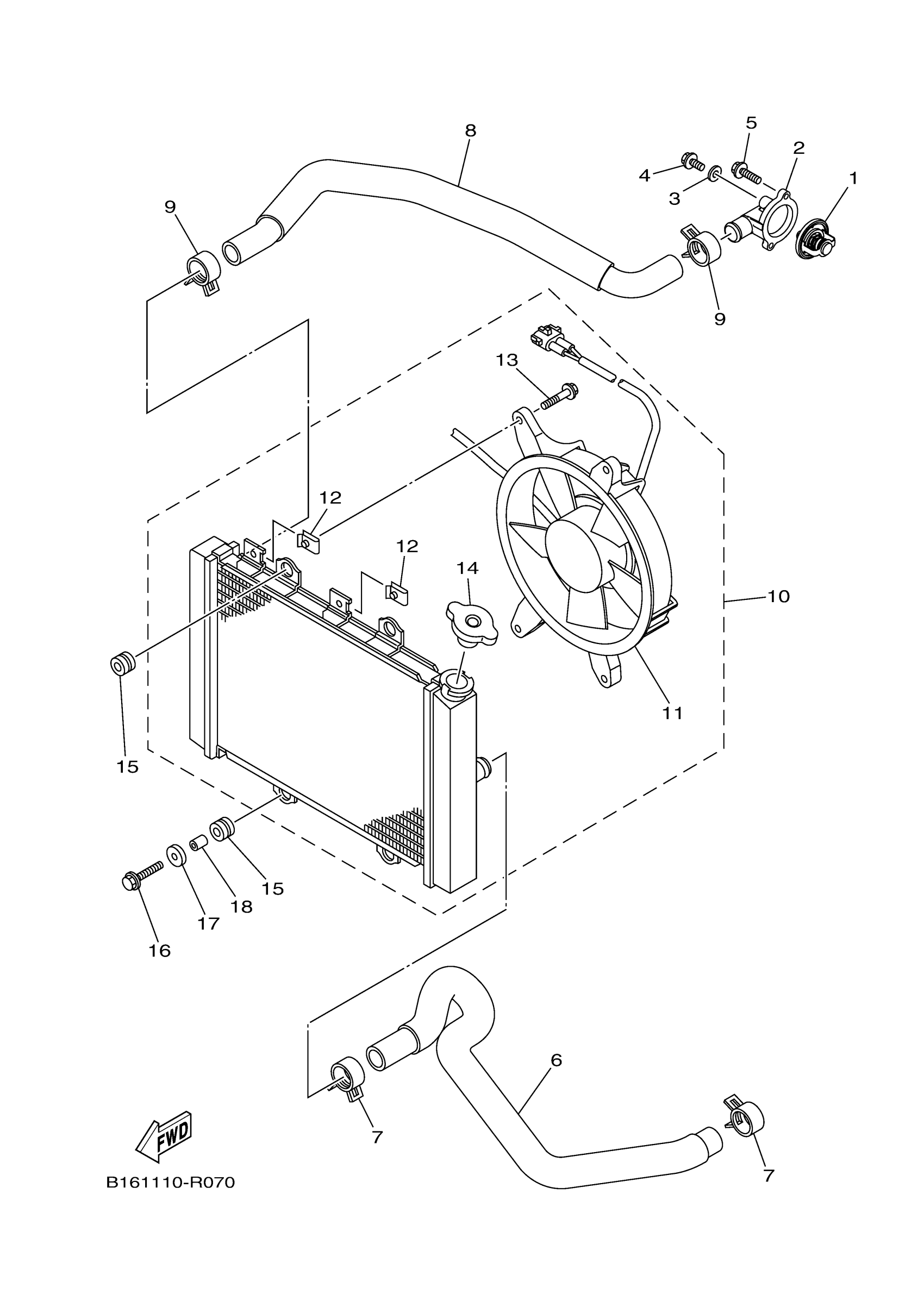

Yamaha YFM70KDHGH (KODIAK 700 4WD HUNTER) B166 2016 RADIATOR HOSE Diagram

#

Description
Price

1

THERMOSTAT

2MB-E2411-00-00

$90.99

2

COVER, THERMOSTAT

B16-E2413-00-00

Unavailable

3

GASKET

2MB-E2435-00-00

$1.66

4

BOLT 1

2MB-E5481-60-00

$1.40

5

BOLT 1

2MB-E5481-10-00

$1.04

6

HOSE 1

B16-E2576-00-00

$32.99

7

CLIP

90467-26189-00

$7.49

8

HOSE 3

B16-E2578-00-00

$22.99

9

CLIP

90467-26189-00

$7.49

10

RADIATOR ASSY

B16-E2460-02-00

$329.99

11

BLOWER ASSY

B16-E2405-01-00

Unavailable

12

. NUT SPRING

1HP-E2535-00-00

Unavailable

13

BOLT, BLOWER HOLDING

1HP-E2675-00-00

$4.68

14

CAP, RADIATOR

1XD-E2462-00-00

$15.49

15

GROMMET(2GH)

90480-12475-00

$8.49

16

BOLT, FLANGE

95817-06020-00

Unavailable

17

WASHER

90209-06012-00

Unavailable

18

COLLAR

90387-06113-00

Unavailable
