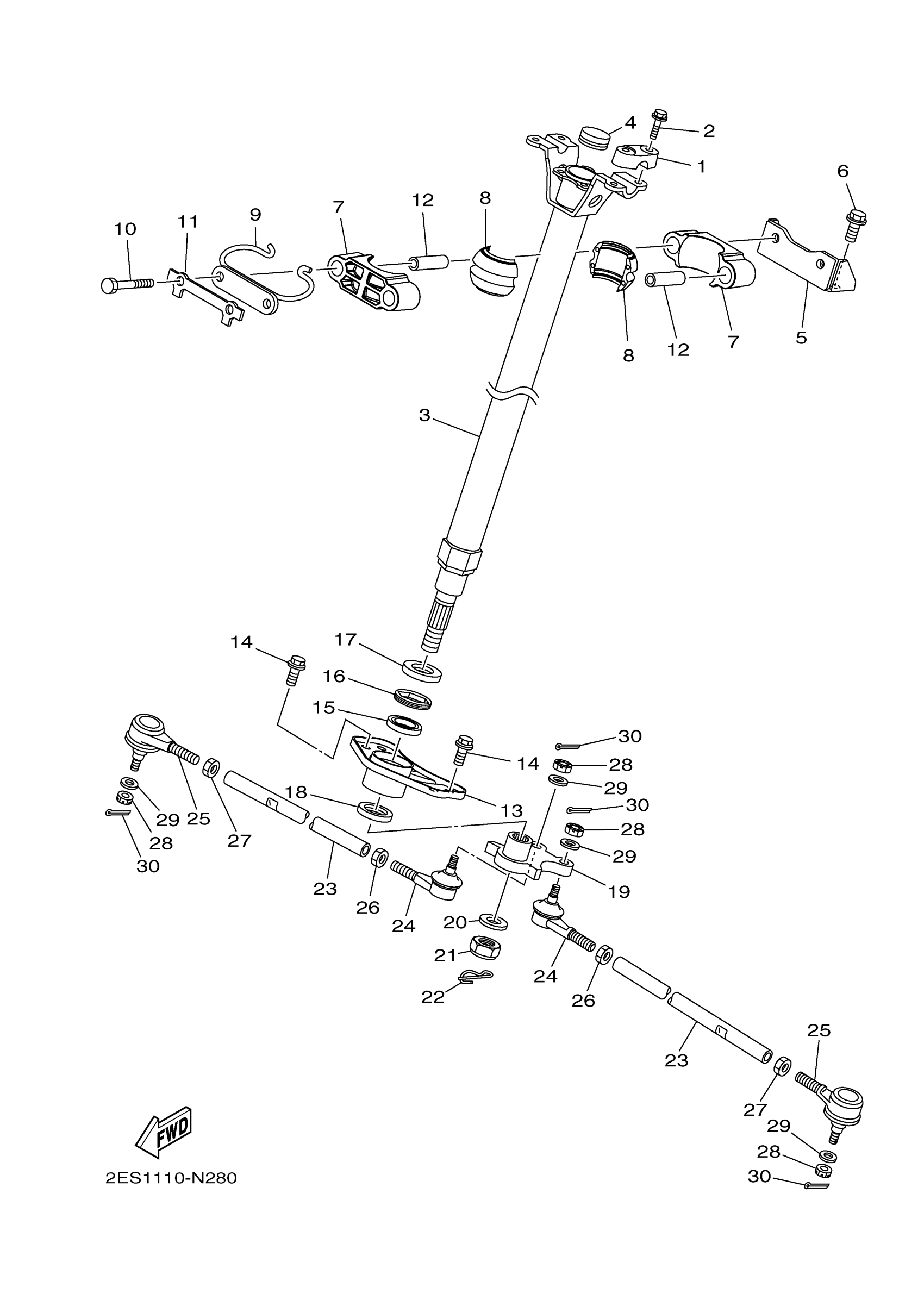

Yamaha YFM70KDANG (KODIAK 700) B6KG 2022 STEERING Diagram

#

Description
Price

1

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

2

BOLT, FLANGE

95812-08030-00

$3.81

3

COLUMN, STEERING

1ND-F3813-11-00

$168.99

4

PLUG, TAPER(2HR)

90336-28053-00

$10.49

5

SUPT., STRG. COLUM

1HP-F2517-10-00

$16.49

6

BOLT, FLANGE

90105-10876-00

$11.49

7

BRACKET, STEERING

1CT-F1957-00-00

Unavailable

8

PLANE BEARING, STE

1CT-F3812-00-00

$7.99

9

BRACKET, STEERING

1CT-F3868-00-00

$8.99

10

BOLT

97012-08080-00

Unavailable

11

WASHER, LOCK 1

1CT-F3894-00-00

Unavailable

12

COLLAR, 2

1CT-F1545-01-00

$3.23

13

BRACKET, STEERING

1CU-F131H-00-00

$27.99

14

BOLT, FLANGE

90105-08237-00

$3.28

15

BEARING

93306-203YN-00

$11.49

16

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

17

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

18

HOLDER, BEARING

2GU-23872-00-00

Unavailable

19

ARM, PITMAN

B16-F3816-00-00

Unavailable

20

WASHER, PLATE

90201-14021-00

Unavailable

21

NUT, SELF-LOCKING

90185-14009-00

Unavailable

22

PIN, COTTER

91490-20035-00

Unavailable

23

ROD, TIE

5KM-23831-00-00

Unavailable

24

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

25

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

26

NUT (682)

95380-10700-00

Unavailable

27

NUT

90170-10010-00

Unavailable

28

NUT, CASTLE

90171-10001-00

Unavailable

29

WASHER (25G)

90209-10229-00

Unavailable

30

PIN, COTTER

91490-20025-00

Unavailable
