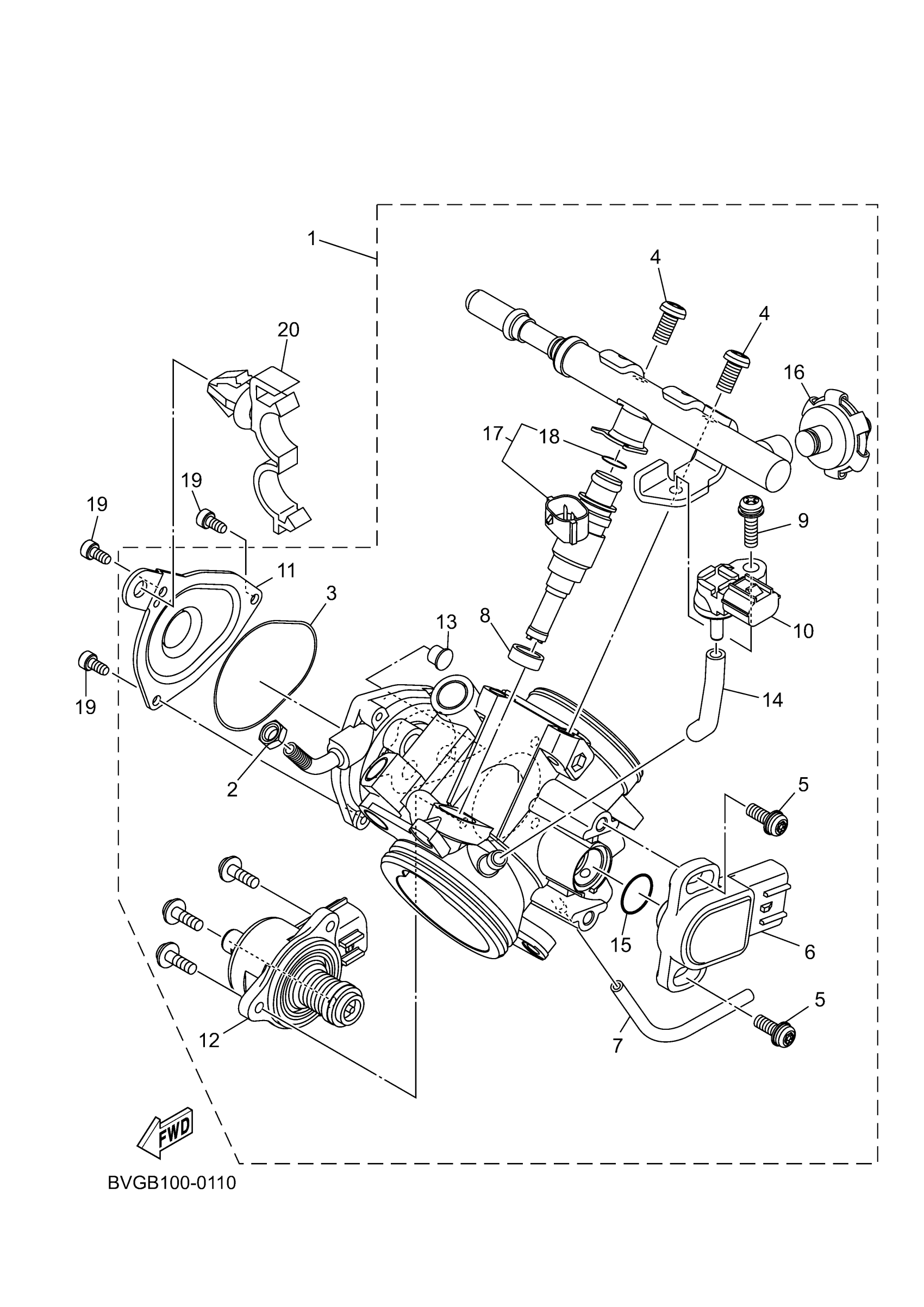

Yamaha YFM70GPZTM (GRIZZLY EPS XT R) DH99 2026 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

BVG-13750-00-00

$885.99

2

NUT, CABLE ADJUSTING

1S3-14161-00-00

$6.38

3

O-RING

5LP-14147-00-00

$10.17

4

SCREW, PAN

98517-06012-00

$3.14

5

SCREW

8CC-14216-10-00

$7.12

6

THROTTLE SENSOR AS

3B4-85885-01-00

$63.34

7

HOSE, AIR

1XD-13543-00-00

$42.46

8

GASKET, MANIFOLD

8FP-13556-00-00

$12.27

9

SCREW

2C0-14216-00-00

$3.03

10

SENSOR, PRESSURE

5S7-82380-00-00

$161.56

11

COVER 1

B16-14293-00-00

$12.92

12

VALVE, CONTROL

63P-1312A-02-00

Unavailable

13

GUIDE, CABLE

1UY-14155-00-00

$15.83

14

PIPE

8FP-14349-20-00

$4.92

15

O-RING

5YP-14562-00-00

$6.62

16

DAMPER

5VK-13982-00-00

$49.71

17

INJECTOR ASSY

3B4-13761-00-00

$198.78

18

O-RING

5PS-14147-00-00

$9.05

19

BOLT

91312-04008-00

$2.34

20

CLAMP

90464-20010-00

$2.17
