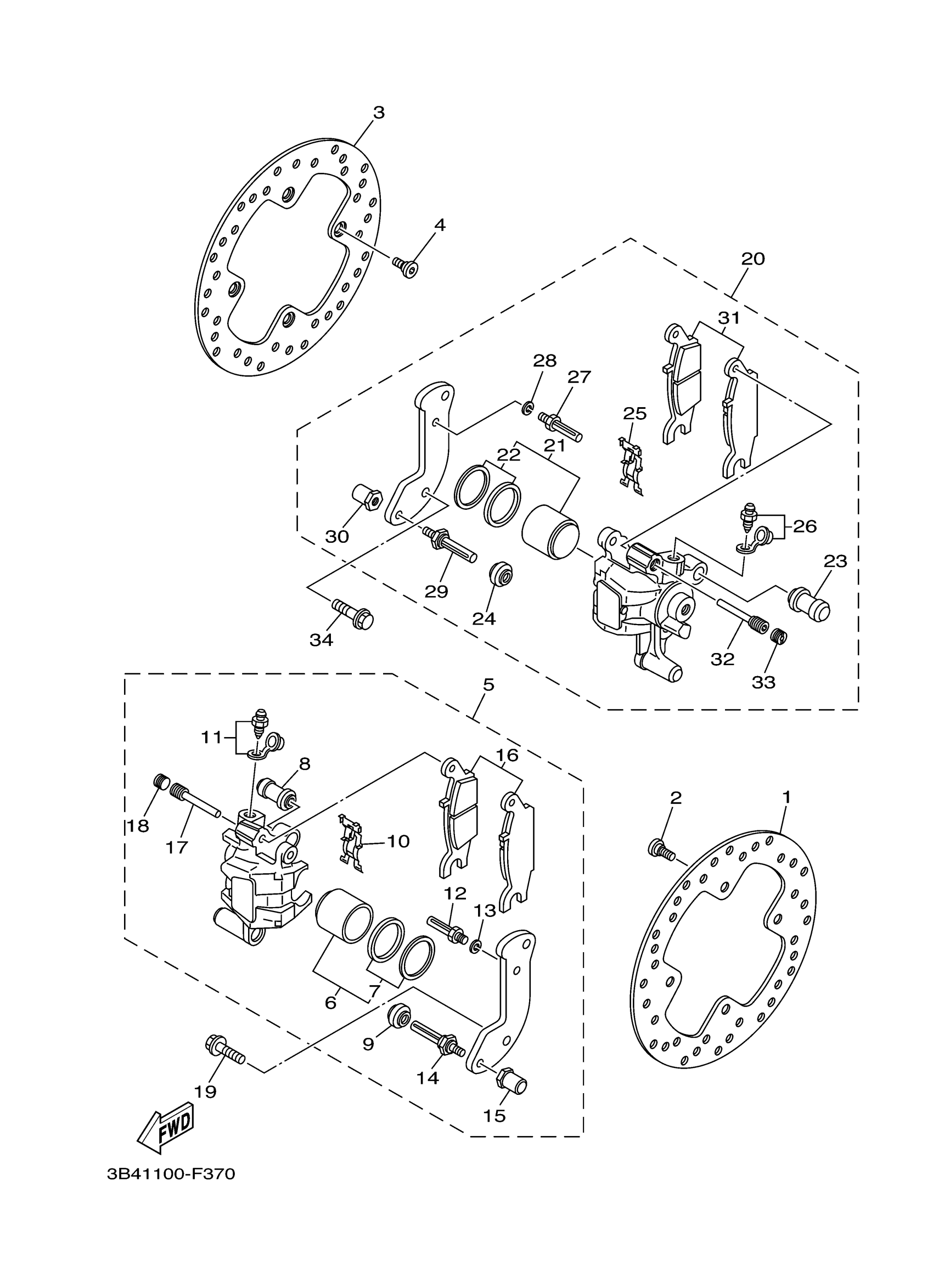

Yamaha YFM70GPZTM (GRIZZLY EPS XT R) DH99 2026 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 1

1HP-F582V-00-00

$60.44

2

BOLT

90109-08087-00

$2.65

3

DISC, REAR BRAKE 1

1HP-F582V-00-00

$60.44

4

BOLT

90109-08087-00

$2.65

5

CALIPER ASSY, REAR 1

3B4-2580V-11-00

$269.27

6

PISTON ASSY, CALIPER

3B4-W0057-20-00

$73.65

7

CALIPER SEAL KIT

3B4-W0047-00-00

$12.52

8

BOOT 2

1UY-25937-51-00

$12.27

9

BOOT, CALIPER

3JD-25917-00-00

$7.51

10

SUPPORT, PAD

5DH-25919-50-00

$17.74

11

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

12

BOLT

1UY-25926-51-00

$3.34

13

WASHER, SPRING

1UY-25938-51-00

$7.51

14

BOLT

3JD-25926-00-00

$6.43

15

NUT

3JD-25961-00-00

$6.94

16

BRAKE PAD KIT 2

3B4-W0046-00-00

$40.38

17

PIN, PAD

3GD-25933-00-00

$22.89

18

PLUG

5DH-25916-00-00

$7.45

19

BOLT, FLANGE

90105-08161-00

$5.86

20

CALIPER ASSY, REAR 2

3B4-2580W-11-00

$287.80

21

PISTON ASSY, CALIPER

3B4-W0057-20-00

$73.65

22

CALIPER SEAL KIT

3B4-W0047-00-00

$12.52

23

BOOT 2

1UY-25937-51-00

$12.27

24

BOOT, CALIPER

3JD-25917-00-00

$7.51

25

SUPPORT, PAD

5DH-25919-50-00

$17.74

26

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

27

BOLT

1UY-25926-51-00

$3.34

28

WASHER, SPRING

1UY-25938-51-00

$7.51

29

BOLT

3JD-25926-00-00

$6.43

30

NUT

3JD-25961-00-00

$6.94

31

BRAKE PAD KIT 2

3B4-W0046-10-00

$40.38

32

PIN, PAD

3GD-25933-00-00

$22.89

33

PLUG

5DH-25916-00-00

$7.45

34

BOLT, FLANGE

90105-08161-00

$5.86
