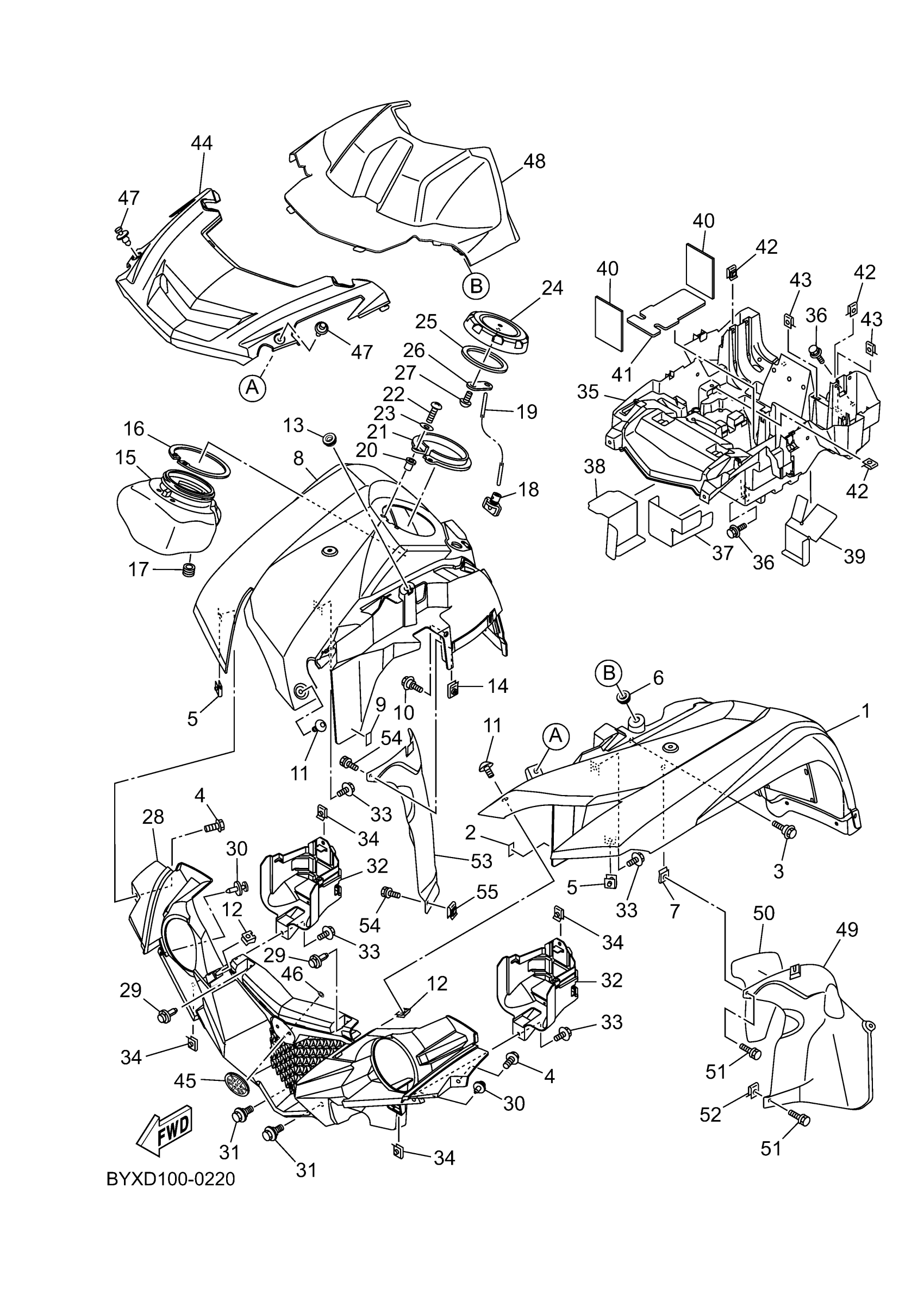

Yamaha YFM70GPZTM (GRIZZLY EPS XT R) DH99 2026 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

B4F-F1500-70-00

$261.86

2

DAMPER 1

3B4-21541-00-00

$2.45

3

BOLT

90109-06043-00

$2.31

4

BOLT, WITH WASHER

90119-06159-00

$6.29

5

NUT, SPRING(4ES)

90183-06069-00

$5.93

6

GROMMET

90480-13014-00

$6.85

7

NUT, SPRING(4ES)

90183-06069-00

$5.93

8

FRONT FENDER COMP.

2UD-F1501-20-00

$116.41

9

DAMPER 1

3B4-21541-00-00

$2.45

10

BOLT

90109-06043-00

$2.31

11

BOLT,HEX SKT HEAD

90111-06814-00

$1.55

12

NUT, SPRING(4ES)

90183-06069-00

$5.93

13

GROMMET

90480-13014-00

$6.85

14

NUT, SPRING(4ES)

90183-06069-00

$5.93

15

BOX 1

1HP-F838K-00-00

$19.71

16

SEAL, BOX 1

3B4-2838M-00-00

$10.29

17

GROMMET

90480-13004-00

$6.08

18

PLUG, DRAIN

3B4-215A1-00-00

$8.03

19

STOPPER, OPEN

3B4-2845L-00-00

$4.74

20

NUT(1KT)

90179-05523-00

$4.33

21

HOLDER

3B4-2839N-01-00

$4.29

22

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.40

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

CAP

1HP-F151B-00-00

Unavailable

25

SEAL

3B4-28307-00-00

$5.43

26

PLATE 2

3B4-28487-00-00

$5.93

27

SCREW, TAPPING (GLOVE BOX)

90164-05800-00

$1.91

28

GRILLE, FRONT

2UD-F8309-00-00

$30.09

29

RIVET

90269-07010-00

$3.75

30

RIVET

90269-06081-00

$5.69

31

BOLT

90109-06043-00

$2.31

32

COVER, HEADLIGHT

2UD-F838E-00-00

$5.80

33

BOLT, WITH WASHER(3RB)

90119-05193-00

$1.23

34

NUT, SPRING

90183-051A0-00

$2.66

35

BOX, BATTERY 1

1HP-H212B-02-00

$26.00

36

BOLT, WITH WASHER

90119-06152-00

$2.74

37

INSULATOR 1

1HP-H253E-01-00

$5.25

38

INSULATOR 2

1HP-H253F-00-00

$5.54

39

INSULATOR

1HP-H254E-01-00

$4.58

40

INSU.

3B4-8233W-10-00

$6.38

41

SEAT, BATTERY

3B4-82122-00-00

$12.48

42

NUT, SPRING(4ES)

90183-06069-00

$5.93

43

NUT, SPRING

90183-05008-00

$6.68

44

FRONT PANEL COMP.

2UD-F330D-C0-00

Unavailable

45

TUNING FORK MARK

2UD-F175B-00-00

$13.06

46

NUT, SPRING

90183-06071-00

$0.54

47

RIVET

90269-07010-00

$3.75

48

PANEL ACCESS. COMP

B31-F83V0-10-00

$155.22

49

FENDER, INNER

1HP-F1552-00-00

$8.93

50

SEAL 1

1HP-F1575-01-00

$3.35

51

BOLT, WITH WASHER

90119-06152-00

$2.74

52

NUT, SPRING(4ES)

90183-06069-00

$5.93

53

FENDER, INNER 2

1HP-F1553-00-00

$18.23

54

BOLT, WITH WASHER

90119-06152-00

$2.74

55

NUT, SPRING(4ES)

90183-06069-00

$5.93
