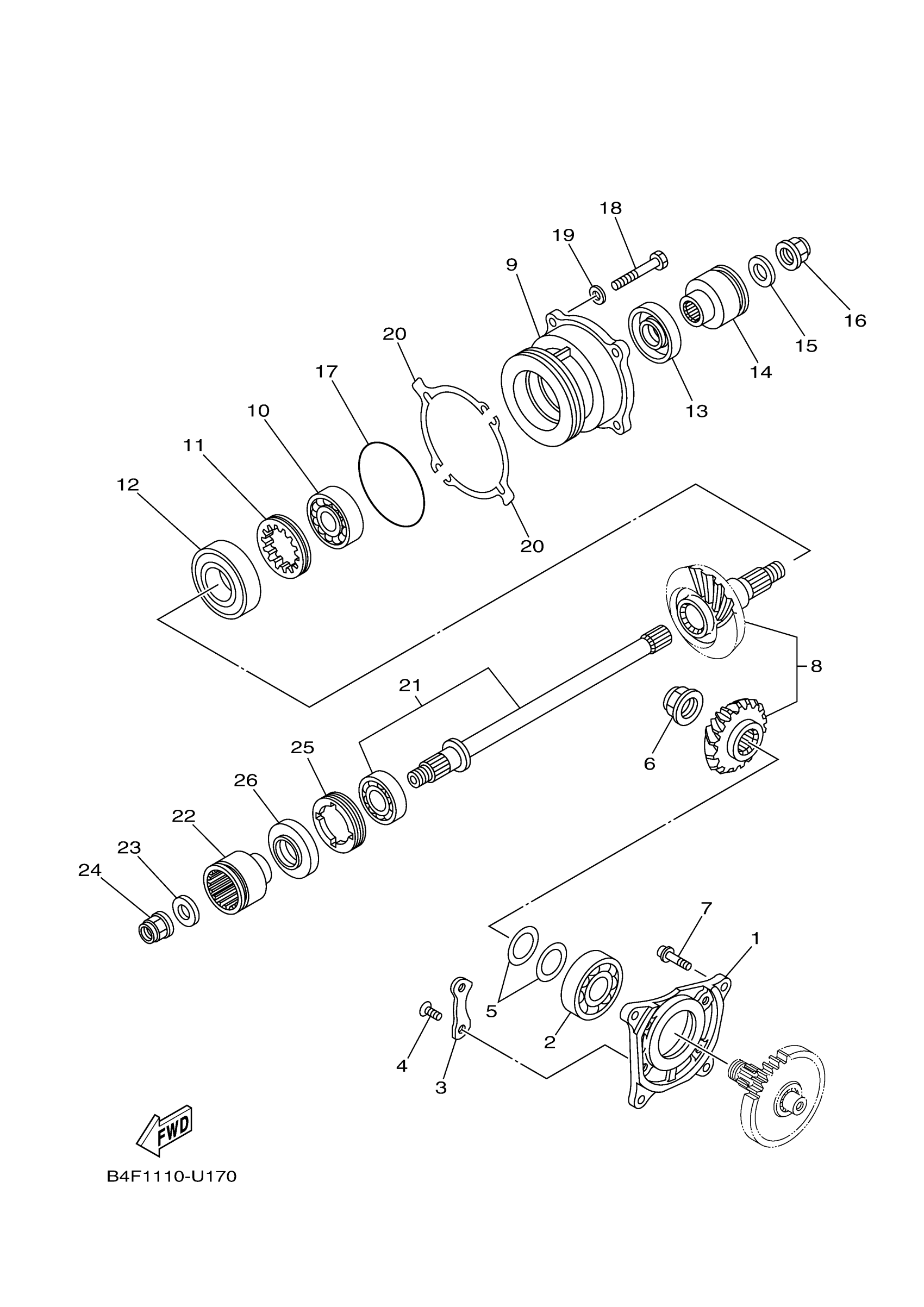

Yamaha YFM70GPZSB (GRIZZLY EPS XT R) BYXN 2025 MIDDLE DRIVE GEAR Diagram
#
Description
Price
1
HOUSING, BEARING
3B4-17521-00-00
Unavailable
2
BEARING(3RR)
93306-30560-00
Unavailable
9
HOUSING, BEARING
3B4-17551-00-00
Unavailable
10
BEARING(1LX)
93306-37204-00
Unavailable
11
NUT
90179-60001-00
Unavailable
12
BEARING
93306-20654-00
Unavailable
13
OIL SEAL
93102-30010-00
Unavailable
14
COUPLING
3B4-17832-10-00
Unavailable
15
WASHER, PLATE(3JP)
90201-166R5-00
Unavailable
16
Nut
90179-16006-00
Unavailable
17
O-RING (14X)
93210-78544-00
Unavailable
18
BOLT, HEXAGON
97017-08030-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
SHIM, PINION (0.1T)
3B4-17531-00-00
Unavailable
20
SHIM, PINION (0.15T)
3B4-17531-10-00
Unavailable
20
SHIM, PINION (0.2T)
3B4-17531-20-00
Unavailable
20
SHIM, PINION (0.3T)
3B4-17531-30-00
Unavailable
20
SHIM, PINION (0.4T)
3B4-17531-40-00
Unavailable
20
SHIM, PINION (0.5T)
3B4-17531-50-00
Unavailable
20
SHIM, PINION (0.6T)
3B4-17531-60-00
Unavailable
21
MIDDLE DRIVEN SHAFT ASSY
1XD-1755A-00-00
Unavailable
22
COUPLING
3B4-17832-10-00
Unavailable
23
WASHER, PLATE
90201-16021-00
Unavailable
24
Nut
90179-16006-00
Unavailable
25
NUT(4KB)
90179-55660-00
Unavailable
26
OIL SEAL
93102-30010-00
Unavailable
