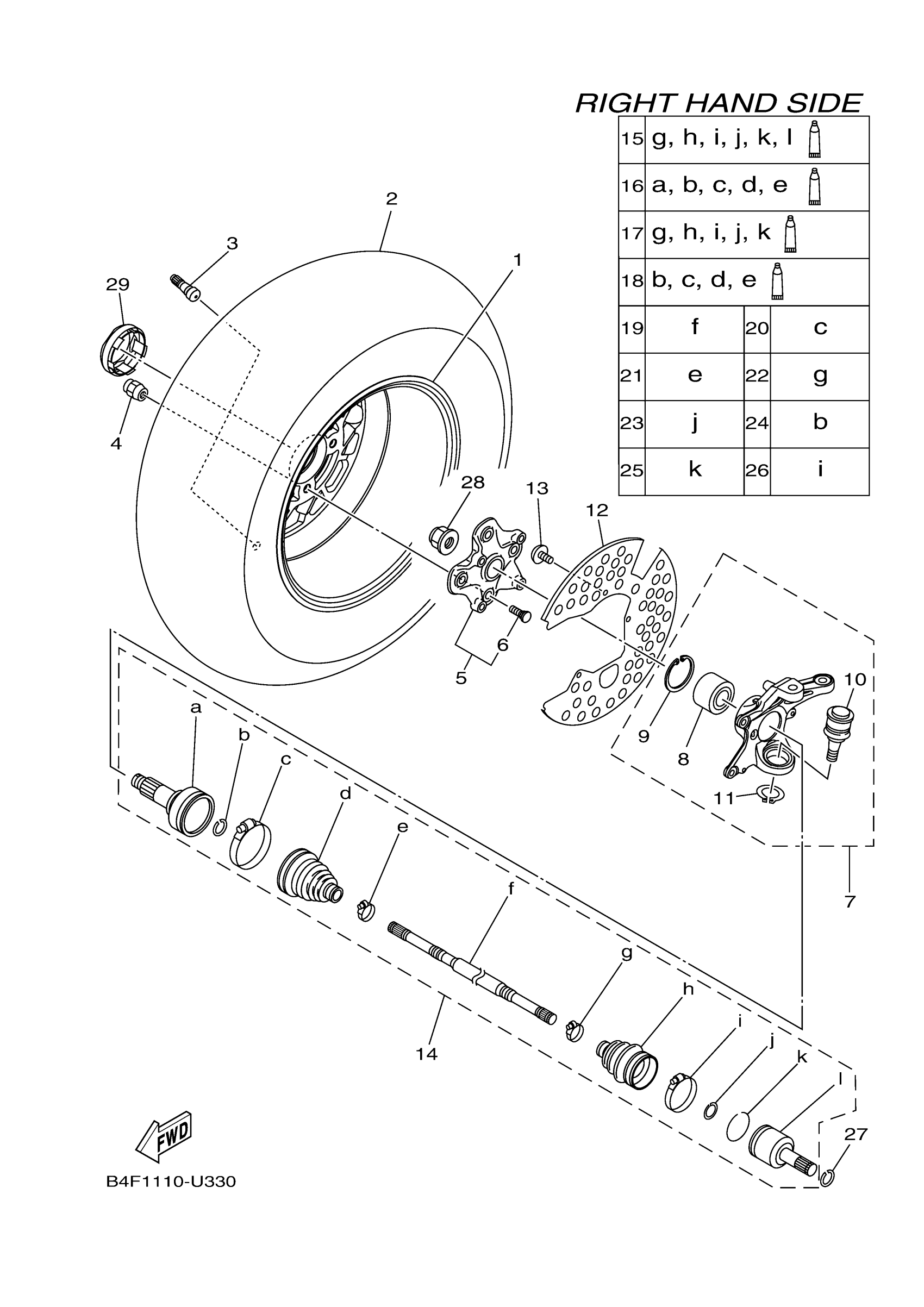

Yamaha YFM70GPZSB (GRIZZLY EPS XT R) BYXN 2025 FRONT WHEEL 2 Diagram
#
Description
Price
1
CAST WHEEL, FRONT
B4F-F5168-50-00
Unavailable
2
TIRE (AT27X10-14 MU01Y 6PR TL)
94110-14807-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
16
BALL JOINT SET
2UD-2510F-00-00
Unavailable
17
BOOT SET(DOUBLE OF
2UD-2510H-00-00
Unavailable
18
BOOT SET (BALL JOI
2UD-2510G-00-00
Unavailable
19
SHAFT
2UD-2518E-00-00
Unavailable
20
BOOT BAND(DOUBLE O
2UD-2511H-00-00
Unavailable
21
BOOT BAND (SMALL)
2UD-2512G-00-00
Unavailable
22
BOOT BAND (SMALL)
2UD-2512G-10-00
Unavailable
23
SNAP RING
3B4-2512J-00-00
Unavailable
24
CIRCLIP
2UD-2512H-00-00
Unavailable
25
CIRCLIP
3B4-25182-00-00
Unavailable
26
BOOT BAND(DOUBLE O
2UD-2511H-10-00
Unavailable
27
CIRCLIP(2HR)
93450-22119-00
Unavailable
28
NUT
90179-20016-00
Unavailable
29
WHEEL CAP ASSY.
1RB-F530B-00-00
Unavailable
