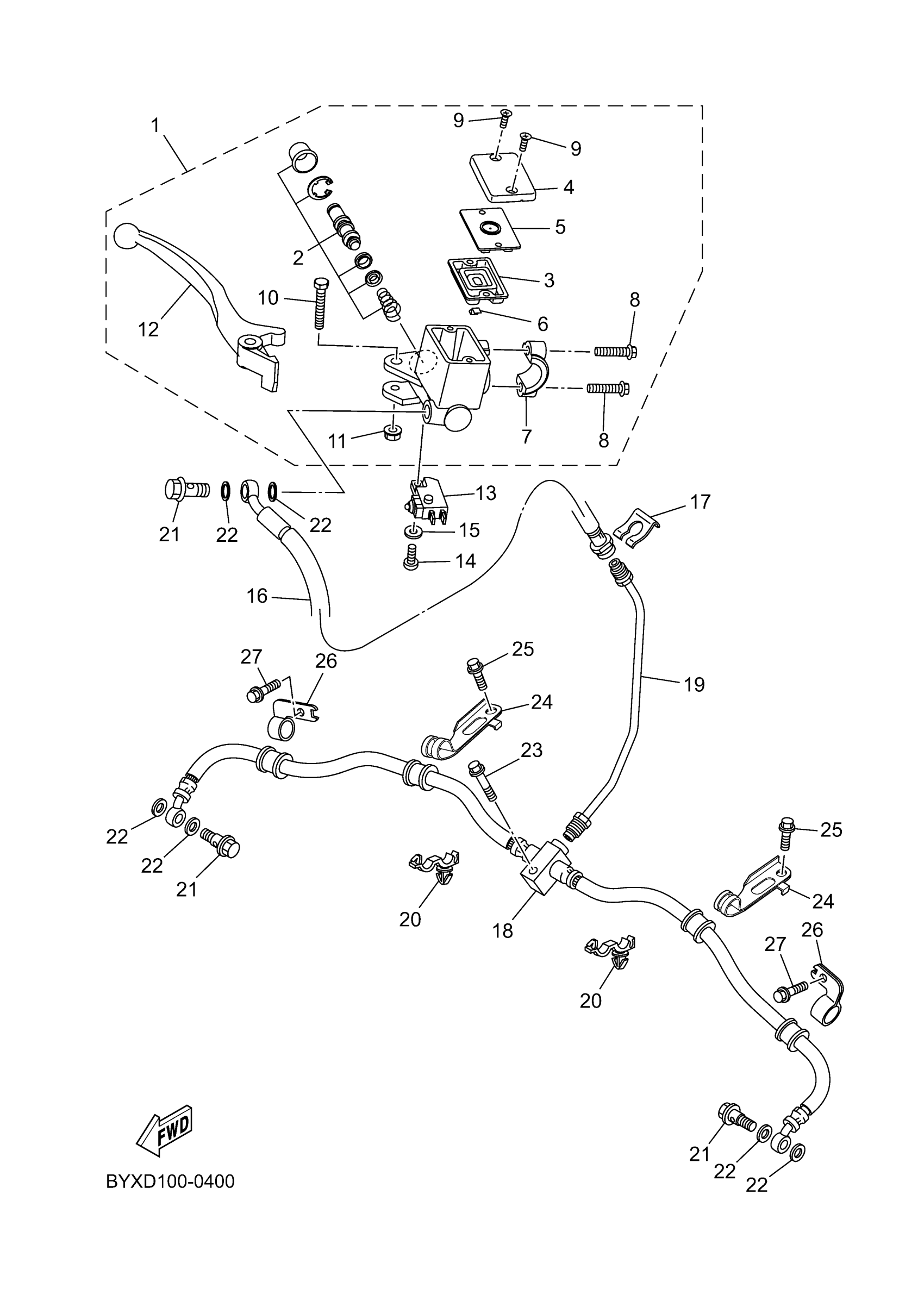

Yamaha YFM70GPZSB (GRIZZLY EPS XT R) BYXN 2025 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER AS

B16-F583T-01-00

Unavailable

2

CYLINDER KIT, MAST

B16-F5807-00-00

Unavailable

3

DIAPHRAGM, RESERVO

B16-F5854-00-00

$4.24

4

CAP, RESERVOIR

B16-F5852-00-00

$7.49

5

PLATE, DIAPHRAGM

B16-F585B-00-00

$5.60

6

. SEPARATOR

B16-F5889-00-00

Unavailable

7

BRACKET, MASTER CY

B16-F5867-00-00

Unavailable

8

BOLT

B16-F6332-00-00

$4.77

9

SCREW, FLAT

98707-04012-00

$2.18

10

BOLT, LEVER

B16-F589F-10-00

$4.24

11

NUT, FLANGE

95702-06500-00

$2.39

12

LEVER, BRAKE

B16-F3922-00-00

$28.99

13

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$31.99

14

SCREW, PAN HEAD

98511-04012-00

Unavailable

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

HOSE, BRAKE 1

2UD-F5872-02-00

Unavailable

17

CIRCLIP

2GU-25866-00-00

Unavailable

18

HOSE, BRAKE 2

BYX-F5873-00-00

Unavailable

19

PIPE, BRAKE

BVG-F5871-00-00

Unavailable

20

CLAMP

90464-20010-00

Unavailable

21

BOLT, UNION

90401-10015-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

BOLT, FLANGE

95817-06025-00

Unavailable

24

HOLDER, BRAKE HOSE

BVG-F5886-00-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable

26

HOLDER, BRAKE HOSE

2PG-25876-00-00

Unavailable

27

BOLT, FLANGE

95817-06012-00

Unavailable
