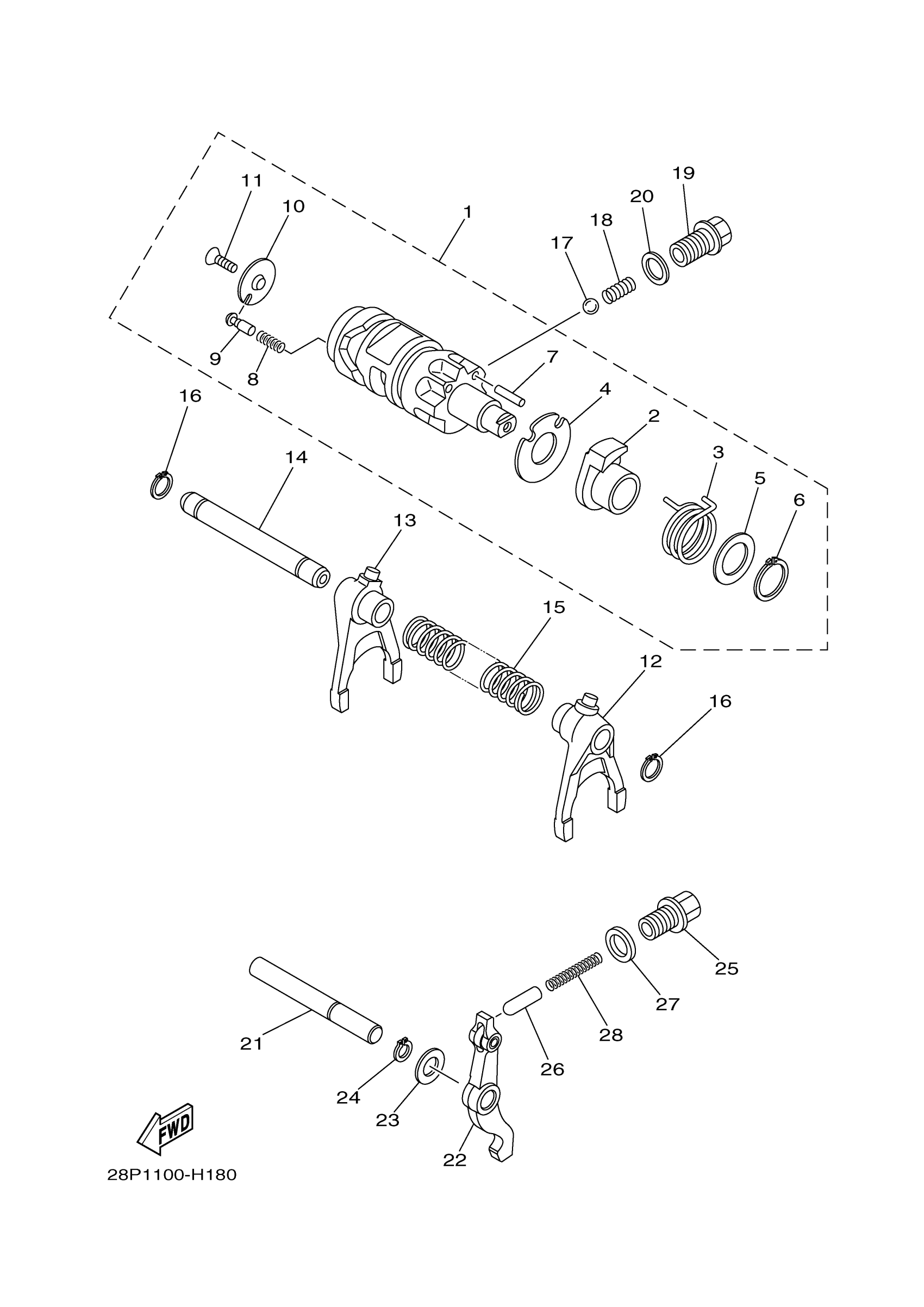

Yamaha YFM70GPZNB (GRIZZLY EPS XTR) BLTC 2022 SHIFT CAM & FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

3B4-18540-21-00

Unavailable

2

CAM, LEVER

5KM-18171-00-00

$46.99

3

SPRING, TORSION

90508-32132-00

Unavailable

4

PLATE, SHIFT CAM

3B4-18331-00-00

Unavailable

5

. SPACER

90560-20040-00

Unavailable

6

CIRCLIP (525)

93410-20038-00

$3.76

7

PIN, DOWEL (363)

93604-18100-00

$3.55

8

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

9

POINT, NEUTRAL

5KM-18542-00-00

$15.49

10

PLATE, SIDE 2

4UN-18566-00-00

$19.99

11

SCREW

90149-05015-00

$5.60

12

FORK, SHIFT 1

3B4-18511-11-00

$116.99

13

FORK, SHIFT 2

3B4-18512-11-00

Unavailable

14

BAR, SHIFT FORK GUIDE 1

3B4-18531-00-00

Unavailable

15

SPRING, COMPRESSION

90501-140A2-00

$8.49

16

CIRCLIP(10Y)

99009-12400-00

Unavailable

17

BALL

93503-08007-00

Unavailable

18

SPRING, COMPRESSION (465)

90501-10353-00

Unavailable

19

BOLT, FLANGE

90105-14003-00

Unavailable

20

GASKET(59V)

90430-14194-00

Unavailable

21

SHAFT, SHIFTER

3B4-18318-00-00

Unavailable

22

STOPPER LEVER ASSY

28P-18140-02-00

Unavailable

23

WASHER, PLATE(55K)

90201-127J6-00

Unavailable

24

CIRCLIP(10Y)

99009-12400-00

Unavailable

25

BOLT

90109-14002-00

Unavailable

26

STOPPER, CAM

1J7-18547-00-00

Unavailable

27

GASKET 256131670000

90430-14043-00

Unavailable

28

SPRING, COMPRESSION

90501-090A1-00

Unavailable
