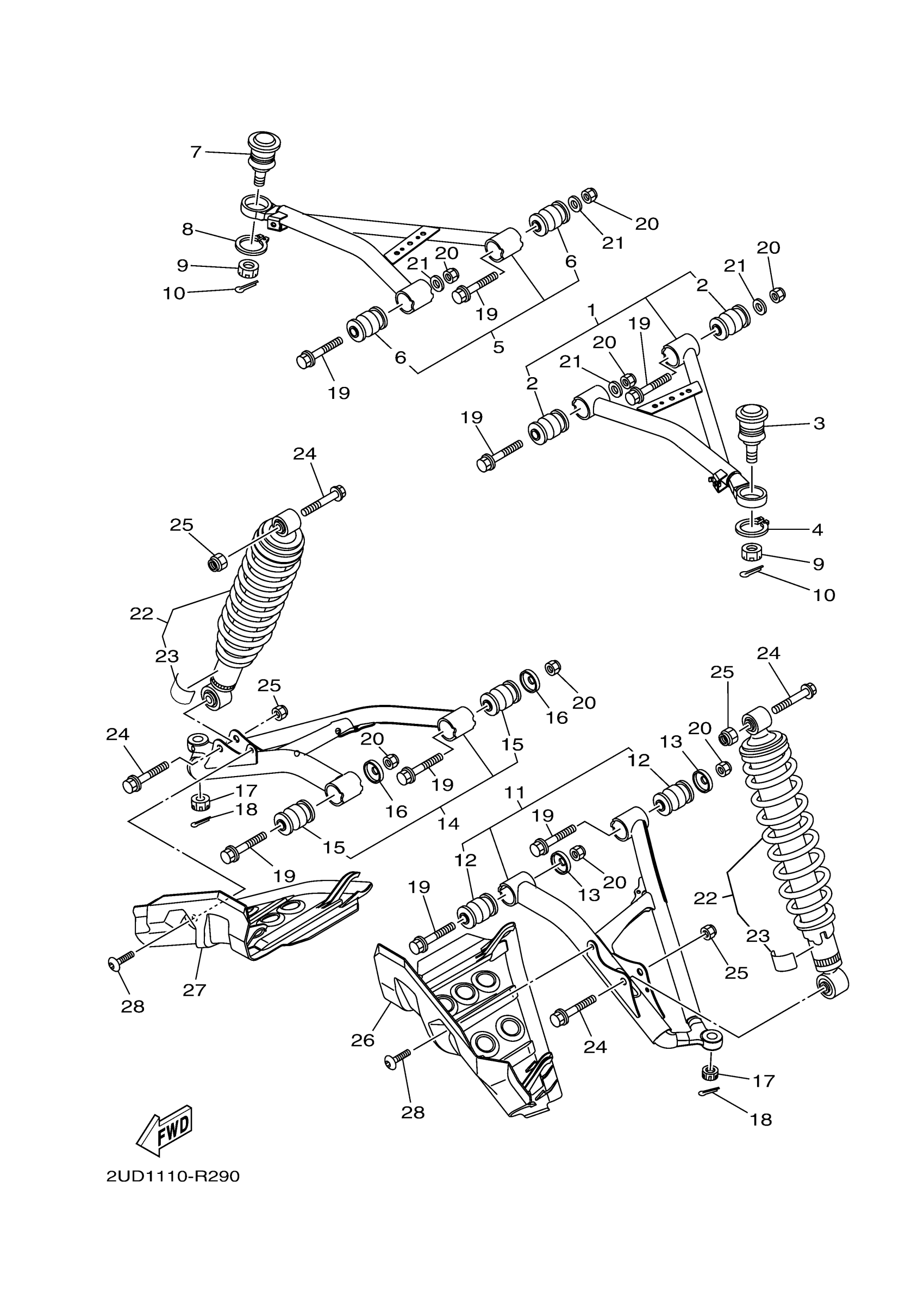

Yamaha YFM70GPXHG (GRIZZLY EPS) 2UDB 2017 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
19
BOLT, WASHER BASED
90105-10011-00
Unavailable
20
NUT, SELF-LOCKING
90185-10012-00
Unavailable
21
WASHER, PLATE
90201-10035-00
Unavailable
22
SHOCK ABSORBER ASSY 2
2UD-F3390-02-00
Unavailable
23
LABEL,WARNING
1HP-F2259-01-00
Unavailable
24
BOLT, FLANGE
90105-10131-00
Unavailable
25
NUT, SELF-LOCKING
90185-10012-00
Unavailable
26
COVER, UNDER 1
2BG-F3123-00-00
Unavailable
27
COVER, LOWER 2
2BG-F3133-00-00
Unavailable
28
BOLT
90109-06264-00
Unavailable
