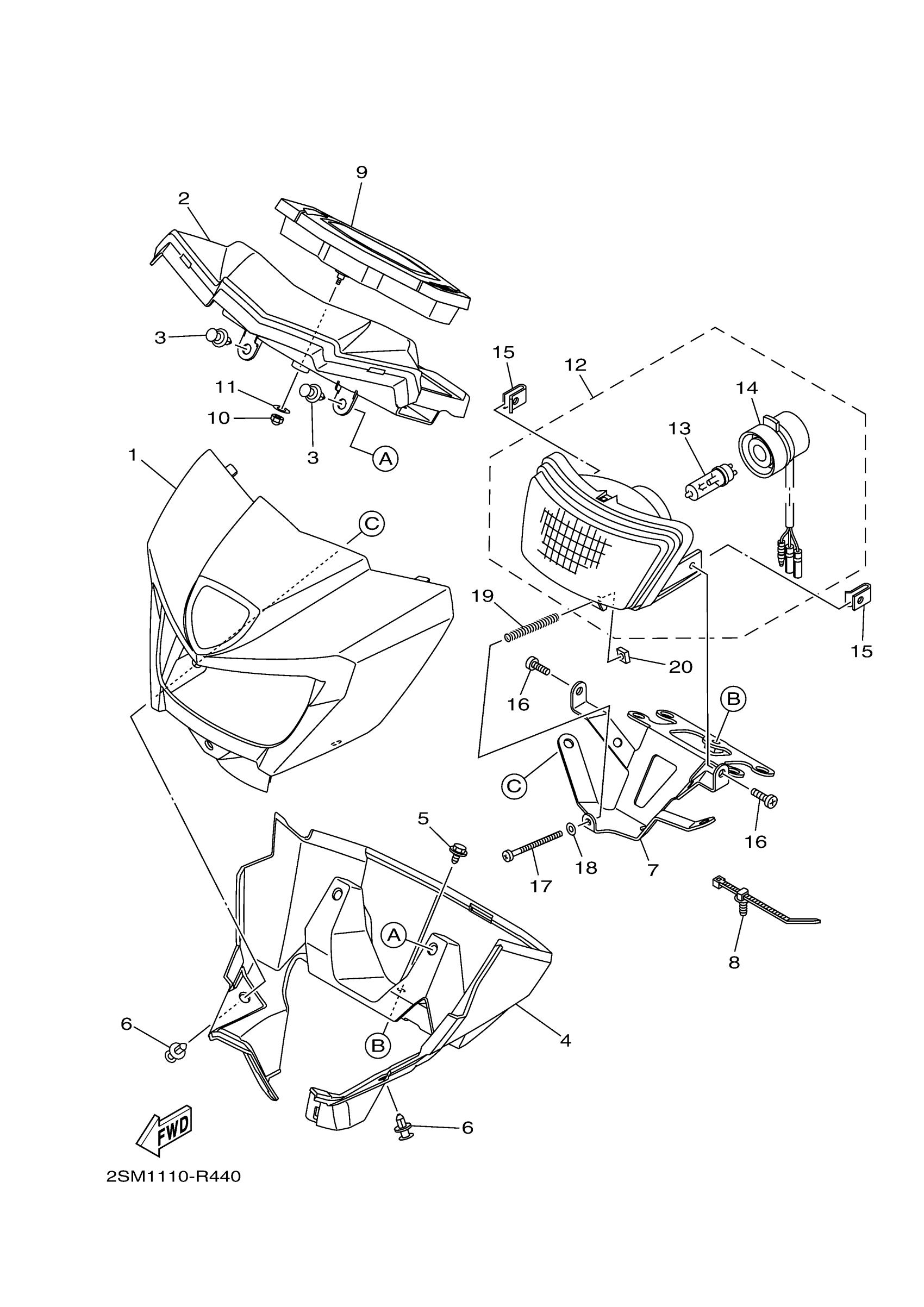

Yamaha YFM70GPXGR (GRIZZLY EPS 4WD) 2UD12 2016 HEADLIGHT 2 Diagram

#

Description
Price

1

COVER, HEADLIGHT

2SM-H4144-00-00

$70.99

1

COVER, HEADLIGHT

2SM-H4144-10-00

$15.49

1

COVER, HEADLIGHT

2SM-H4144-20-00

$11.49

2

COVER, METER

2UD-H3559-00-00

$7.99

3

RIVET

90269-07010-00

$4.35

4

COVER,HDLBR UPR 1

2SM-F6143-01-00

$9.49

5

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

6

RIVET

90269-07010-00

$4.35

7

STAY

2SM-F6292-00-00

Unavailable

8

CLAMP

1NS-F1338-00-00

$3.33

9

METER ASSY

2UD-83500-01-00

Unavailable

10

NUT, CROWN

95302-05800-00

$2.17

11

WASHER, PLATE

90201-05039-00

$8.49

12

HEADLIGHT ASSY

2PA-84300-00-00

$91.99

13

BULB, HEADLIGHT

5VM-84314-00-00

$42.99

14

SOCKET CORD ASSY 1

2PA-84340-00-00

Unavailable

15

NUT

5VM-84117-00-00

Unavailable

16

SCREW, PAN

98517-05012-00

Unavailable

17

SCREW, ADJUSTING

5BF-8433E-00-00

Unavailable

18

WASHER, PLAIN (646)

92990-04600-00

Unavailable

19

SPRING, COMPRESSION

90501-100A3-00

Unavailable

20

NUT, ADJUSTING

5VM-84334-00-00

Unavailable
