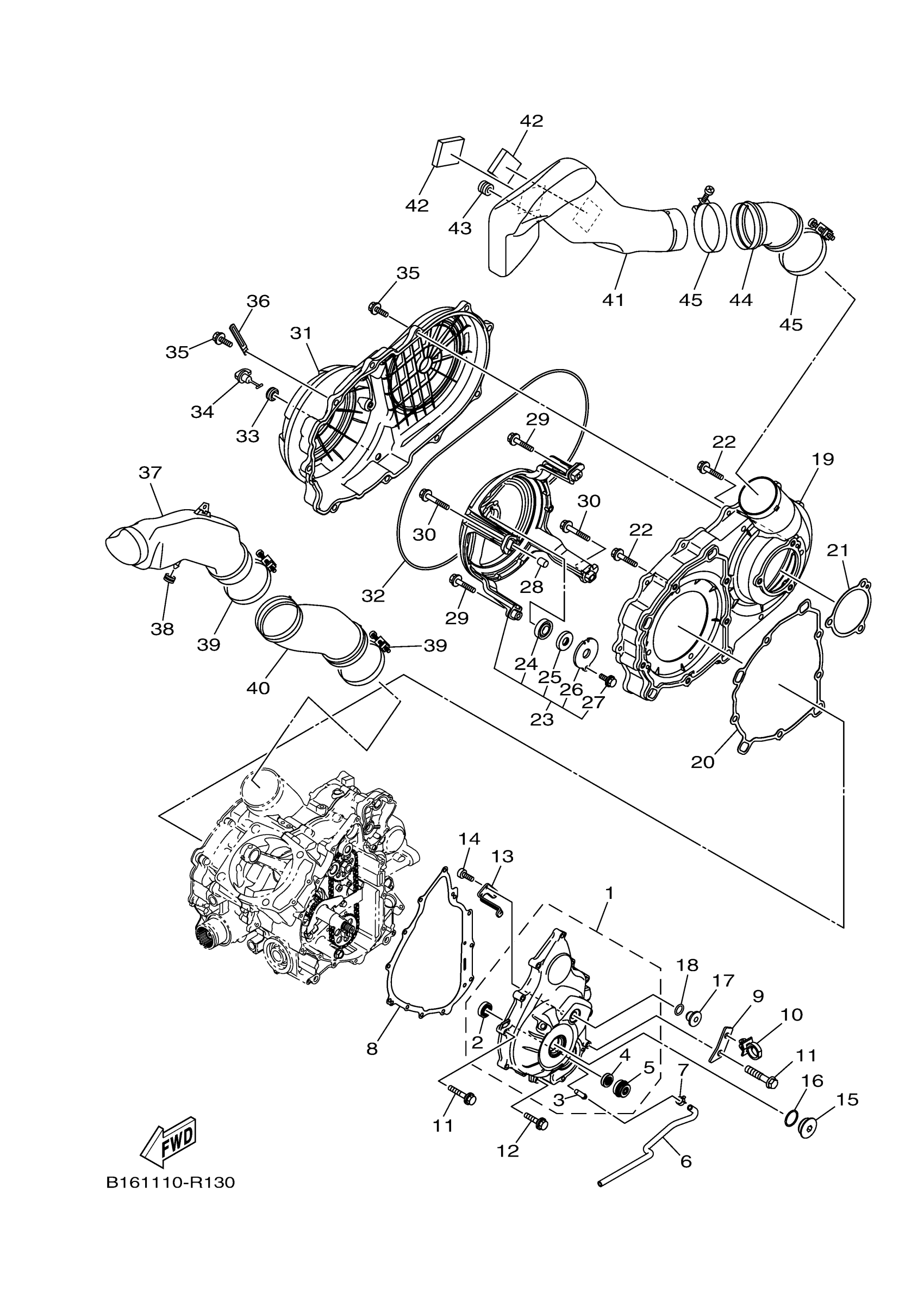

Yamaha YFM70GPXGL (GRIZZLY EPS 4WD) 2UD11 2016 CRANKCASE COVER 1 Diagram

#

Description
Price

1

CRANKCASE COVER AS

2MB-E5409-00-00

$324.08

2

BEARING

2MB-E5596-01-00

$12.02

3

PIPE, DRAIN

2MB-E243K-00-00

$4.43

4

OIL SEAL

2MB-E511A-00-00

$8.70

5

SEAL, MECHANICAL

2MB-E2438-00-00

$44.34

6

HOSE 5

2MB-E244H-00-00

$10.38

7

CLIP

2MB-E5179-00-00

$2.83

8

GASKET, CRANKCASE

2MB-E5451-00-00

$13.06

9

PLATE

B16-E5191-00-00

$3.20

10

CLAMP

B16-H1128-00-00

$3.40

11

BOLT 1

2MB-E5481-50-00

$1.52

12

BOLT 1

2MB-E5481-20-00

$0.95

13

PLATE

2MB-E5113-00-00

$8.88

14

BOLT

2MB-E5187-00-00

$1.51

15

PLUG, BLIND 2

2MB-E5168-00-00

$5.69

16

O-RING

2MB-E511C-00-00

$3.91

17

PLUG, BLIND 2

2MB-E5169-00-00

$4.08

18

O-RING

2MB-E4G97-00-00

$2.37

19

COVER, CRANKCASE 2

B16-E5421-00-00

$78.58

20

GASKET

2MB-E5453-00-00

$29.29

21

SEAL, CRANKCASE

2MB-E5315-00-00

$6.75

22

BOLT 2

2MB-E5482-10-00

$2.32

23

HOUSING ASSY

2MB-E5480-00-00

$263.78

24

BEARING

2MB-E5693-00-00

$17.28

25

OIL SEAL

2MB-E4005-00-00

$6.06

26

PLATE, BEARING COV

2MB-E5381-00-00

$3.62

27

BOLT 2

2MB-E5482-00-00

$1.40

28

PIN, DOWEL

2MB-E5181-00-00

$2.92

29

BOLT 2

2MB-E5482-10-00

$2.32

30

BOLT 2

2MB-E5482-30-00

$1.52

31

COVER, CRANKCASE 3

B16-E5431-00-00

$129.62

32

SEAL, CRANKCASE

2MB-E5379-00-00

$15.83

33

GROMMET

2MB-E5365-00-00

$2.91

34

PLUG, DRAIN

2MB-E5351-00-00

$8.70

35

BOLT

2MB-E5768-00-00

$1.52

36

CLAMP 2

B16-E5484-00-00

$3.25

37

DUCT, AIR

1HP-E5471-00-00

$24.83

38

GROMMET(4FU)

90480-13567-00

$3.88

39

CLAMP,HOSE

90460-85135-00

$7.28

40

SEAL, AIR DUCT

B16-E5472-00-00

$17.62

41

DUCT, AIR

1HP-E5473-00-00

$19.58

42

SEAT, BATTERY

1S3-82123-00-00

$3.09

43

GROMMET

90480-13014-00

$6.85

44

SEAL, AIR DUCT

1HP-E5474-00-00

$8.80

45

CLAMP,HOSE

90460-85135-00

$7.28
