Description

Price

1

TANK, RECOVERY

1HP-F1871-01-00

Unavailable

2

CAP

1S3-21875-00-00

$9.99

3

HOSE

90445-08841-00

$3.40

4

HOSE (L420)

90445-08840-00

Unavailable

5

CLIP 101235600

90467-08003-00

$10.49

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

PLATE

1HP-F176E-01-00

$4.41

8

TOP COVER COMP.

B16-F171C-30-00

$116.99

9

GROMMET(4FU)

90480-13567-00

$4.99

10

GROMMET(4DN)

90480-01558-00

$4.19

11

BOLT, WITH WASHER

90119-06152-00

$7.49

12

LID COVER COMP.

B16-F17P0-30-00

$76.99

13

PIN, HINGE

3B4-2177K-00-00

$12.99

14

SIDE COVER COMP. 1

B16-F17E0-70-00

$94.99

15

INSULATOR, SIDE COVER

B16-F174A-02-00

$7.49

16

SEAL 4

B16-F173N-02-00

Unavailable

17

DAMPER

3B4-2174Y-00-00

Unavailable

18

SEAL 3

B16-F173M-02-00

Unavailable

19

NUT, SPRING(4ES)

90183-06069-00

Unavailable

20

DAMPER, LOCATING 4

3B4-2177N-01-00

Unavailable

21

SIDE COVER COMP. 2

B16-F17F0-70-00

Unavailable

22

NUT, SPRING(4ES)

90183-06069-00

Unavailable

23

RIVET

90269-07010-00

Unavailable

24

DAMPER, PLATE

90520-50800-00

Unavailable

25

BOLT, WITH WASHER

90119-06152-00

$7.49

26

BOX

B16-F177A-01-00

Unavailable

27

DAMPER, PLATE

90520-10027-00

Unavailable

28

GROMMET(4DN)

90480-01558-00

$4.19

29

BOLT

90109-06202-00

Unavailable

30

. PLUG, BLIND

90605-502U1-00

Unavailable

31

NUT(1KT)

90179-05523-00

Unavailable

32

SCREW, WITH WASHER

90159-05053-00

Unavailable

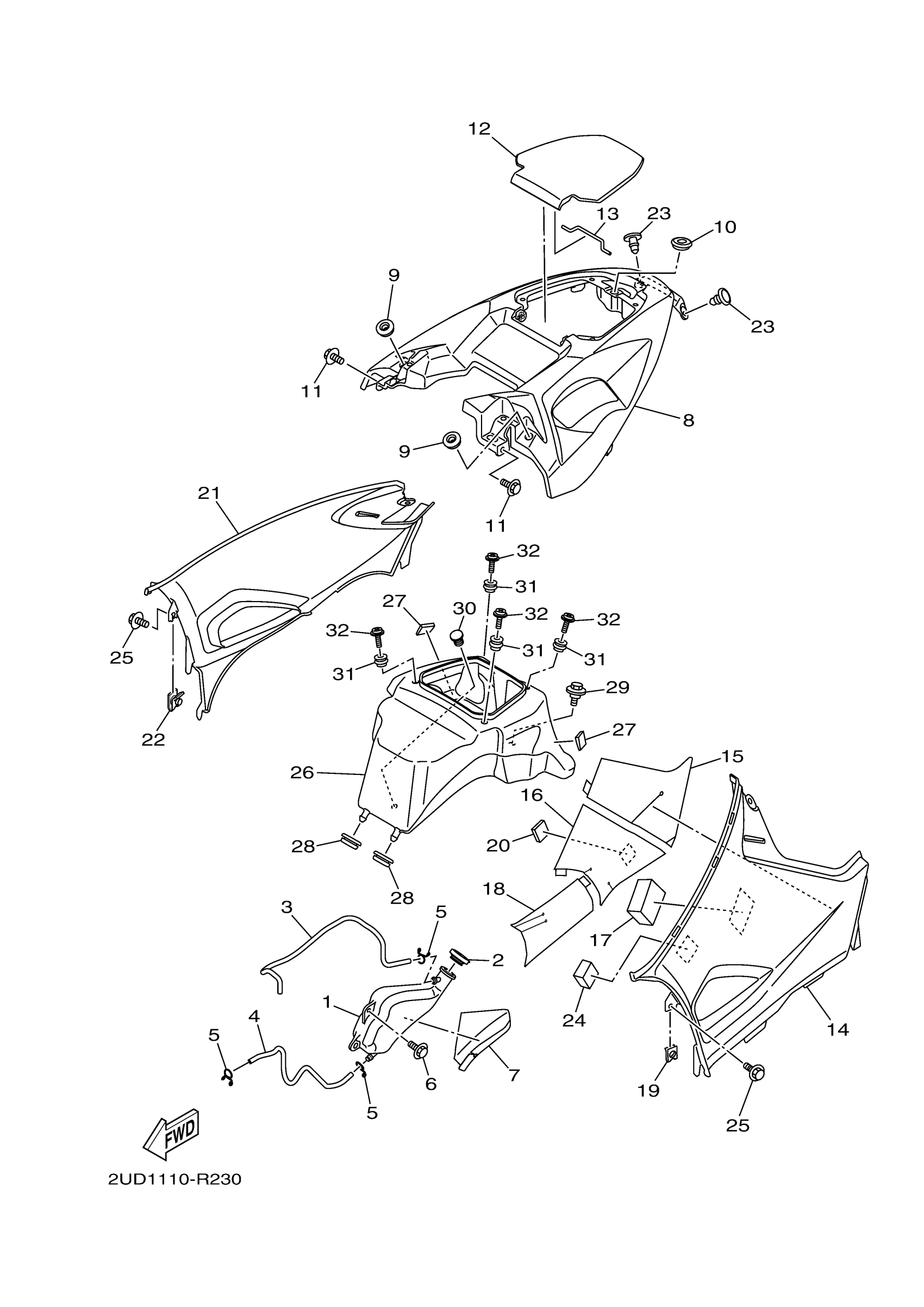

Yamaha YFM70GPSSL (GRIZZLY EPS SE) BYXK 2025 SIDE COVER Diagram

TANK, RECOVERY

CAP

HOSE

HOSE (L420)

CLIP 101235600

BOLT, WITH WASHER

PLATE

TOP COVER COMP.

GROMMET(4FU)

GROMMET(4DN)

BOLT, WITH WASHER

LID COVER COMP.

PIN, HINGE

SIDE COVER COMP. 1

INSULATOR, SIDE COVER

SEAL 4

DAMPER

SEAL 3

NUT, SPRING(4ES)

DAMPER, LOCATING 4

SIDE COVER COMP. 2

NUT, SPRING(4ES)

RIVET

DAMPER, PLATE

BOLT, WITH WASHER

BOX

DAMPER, PLATE

GROMMET(4DN)

BOLT

. PLUG, BLIND

NUT(1KT)

SCREW, WITH WASHER
