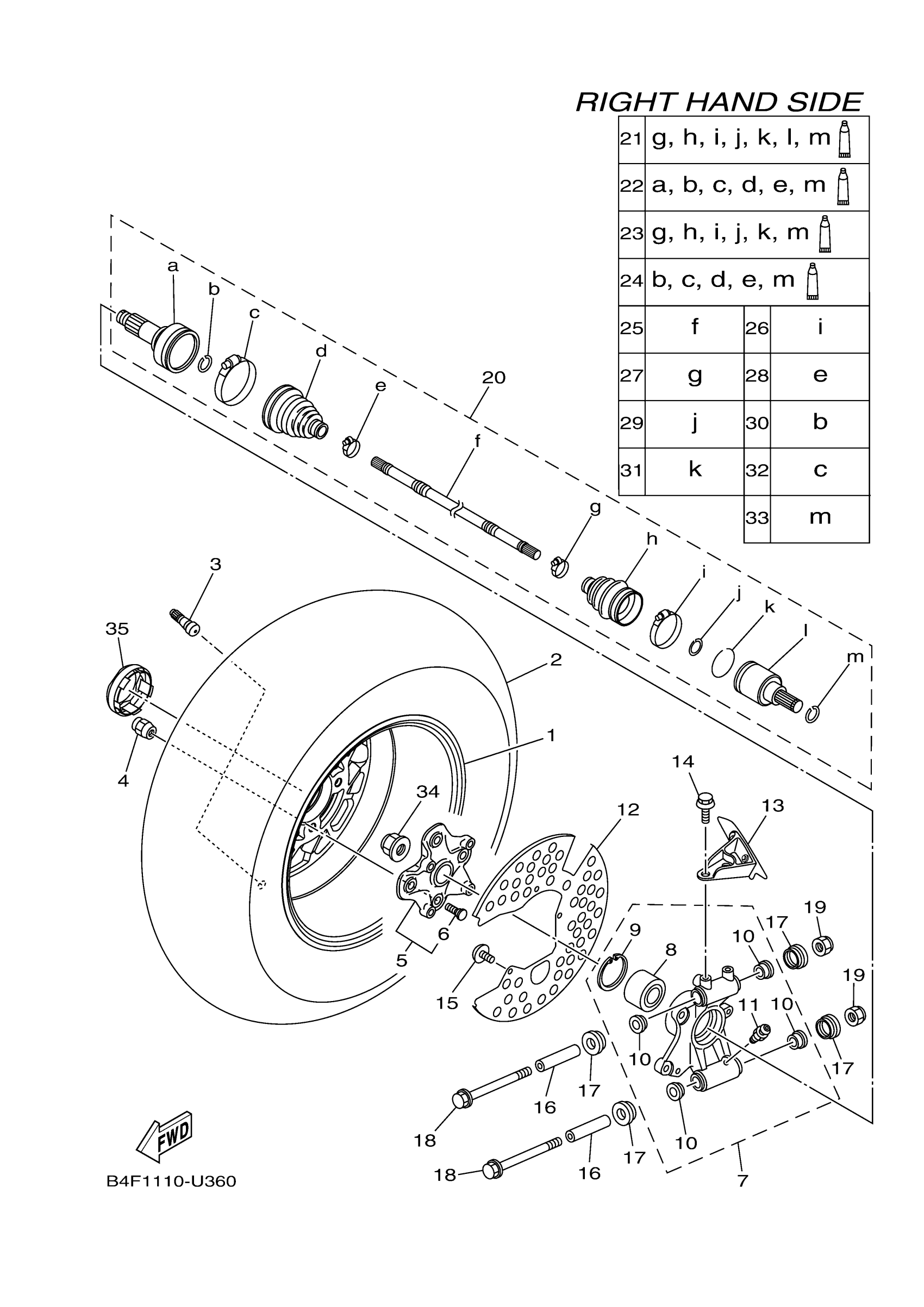

Yamaha YFM70GPSSL (GRIZZLY EPS SE) BYXK 2025 REAR WHEEL 2 Diagram

#

Description
Price

1

CAST WHEEL, FRONT

B4F-F5168-60-00

Unavailable

2

TIRE (AT27X10-14 MU01Y 6PR TL)

94110-14807-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT

90179-10032-00

$13.49

5

HUB ASSY 2

B16-F510D-03-00

$47.99

6

BOLT, SERRATION

90114-10014-00

$7.49

7

REAR KNUCKLE ASSY.

2BG-F532F-01-00

$151.99

8

BEARING

93305-00602-00

$101.99

9

CIRCLIP

99009-55500-00

$9.49

10

BUSH, SOLID(2NL)

90381-17067-00

$11.49

11

NIPPLE, GREASE

93700-06M03-00

Unavailable

12

RING, WHEEL 1

B4F-F514A-00-00

$9.49

13

PLATE 2

1HP-F539G-00-00

$16.49

14

BOLT

90109-06840-00

Unavailable

15

BOLT,HEX. SOCKET BUTTON

90111-06096-00

$8.49

16

SPACER

5KM-23448-00-00

Unavailable

17

COVER, THRUST 1

3JN-23517-00-00

Unavailable

18

BOLT, FLANGE

90105-10212-00

Unavailable

19

NUT, SELF-LOCKING

90185-10012-00

Unavailable

20

REAR DRIVE SHAFT A

2UD-2531H-01-00

Unavailable

21

DOUBLE OFF SET JOI

B16-2530V-01-00

Unavailable

22

BALL JOINT SET

28P-2510F-10-00

Unavailable

23

BOOT SET(DOUBLE OF

B16-2510H-01-00

Unavailable

24

BOOT SET (BALL JOI

28P-2510G-10-00

Unavailable

25

SHAFT

2UD-2518E-10-00

Unavailable

26

BOOT BAND(DOUBLE O

B16-2511H-00-00

Unavailable

27

BOOT BAND (SMALL)

B16-2512G-00-00

Unavailable

28

BOOT BAND (SMALL)

28P-2512G-00-00

Unavailable

29

SNAP RING

B16-2512J-00-00

Unavailable

30

CIRCLIP

3B4-2512H-00-00

Unavailable

31

CIRCLIP

B16-25182-00-00

Unavailable

32

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

33

CLIP, SPRING

3B4-2536E-00-00

Unavailable

34

NUT

90179-20016-00

Unavailable

35

WHEEL CAP ASSY.

1RB-F530B-10-00

Unavailable
