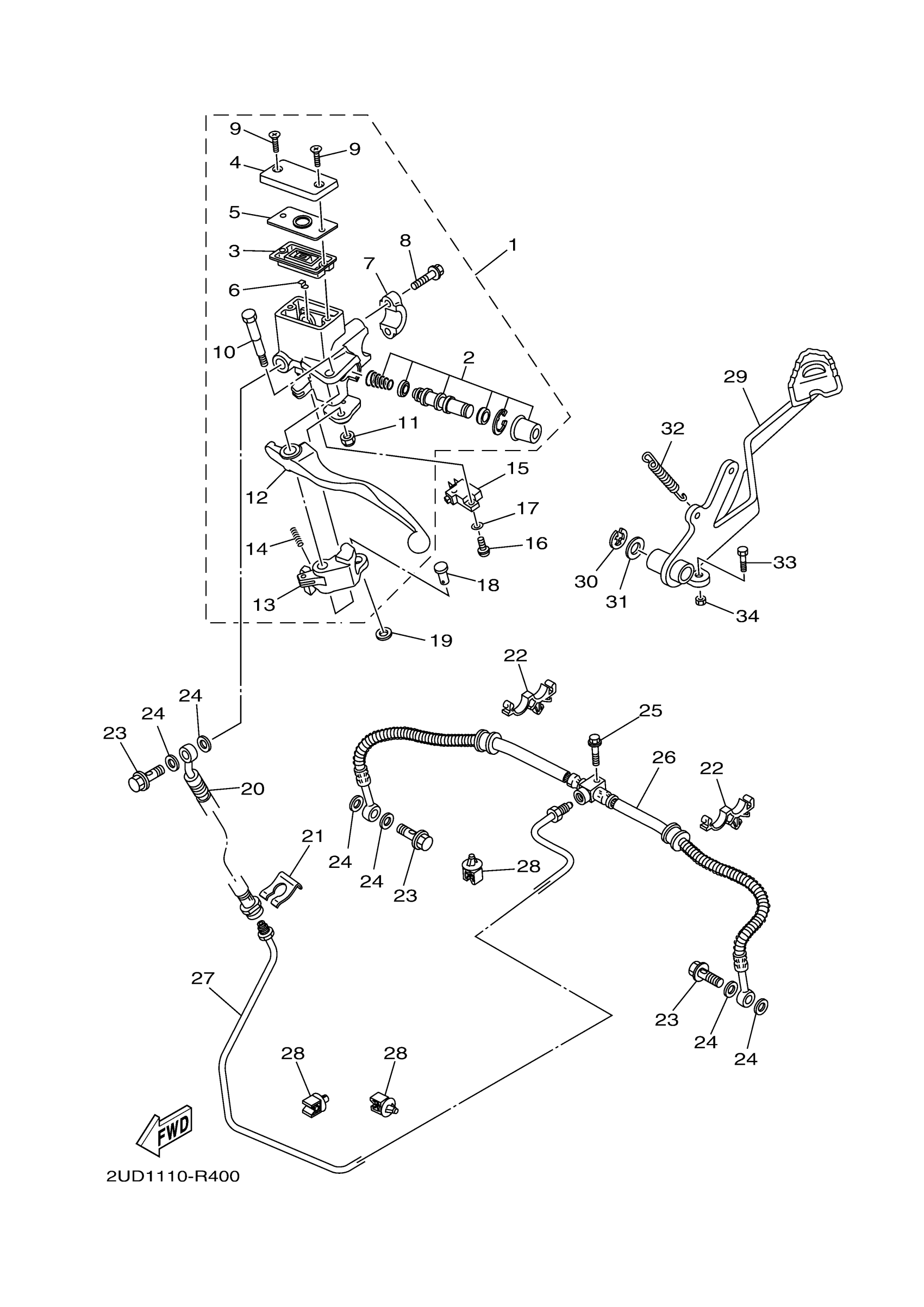

Yamaha YFM70GPSSL (GRIZZLY EPS SE) BYXK 2025 REAR MASTER CYLINDER Diagram
#
Description
Price
1
RR. MASTER CYLINDE
2UD-F583V-00-00
Unavailable
2
CYLINDER KIT, MAST
B16-F5807-00-00
Unavailable
6
. SEPARATOR
B16-F5889-00-00
Unavailable
7
BRACKET, MASTER CY
B16-F5867-00-00
Unavailable
12
LEVER, BRAKE
2UD-F3912-00-00
Unavailable
14
SPRING, SEAT
2UD-F5865-00-00
Unavailable
16
SCREW, PAN HEAD
98511-04012-00
Unavailable
17
WASHER, PLAIN (646)
92990-04600-00
Unavailable
18
PIN W/HOLE 307181180000
90240-08013-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
HOSE, BRAKE 1
2UD-F5872-02-00
Unavailable
21
CIRCLIP
2GU-25866-00-00
Unavailable
22
CLAMP
90464-16006-00
Unavailable
23
BOLT, UNION
90401-10015-00
Unavailable
24
WASHER, PLATE(481)
90201-10118-00
Unavailable
25
BOLT, FLANGE
95817-06025-00
Unavailable
26
HOSE, BRAKE 3
2BG-F5874-02-00
Unavailable
27
PIPE, BRAKE 2
1HP-F5882-02-00
Unavailable
28
CLAMP 1
5KM-81677-00-00
Unavailable
29
PEDAL, BRAKE
1HP-F7211-01-00
Unavailable
30
CIRCLIP
99002-10600-00
Unavailable
31
WASHER, PLATE
90201-14023-00
Unavailable
32
SPRING, TENSION
90506-20014-00
Unavailable
33
BOLT
97012-06014-00
Unavailable
34
NUT, HEXAGON
95380-06600-00
Unavailable
