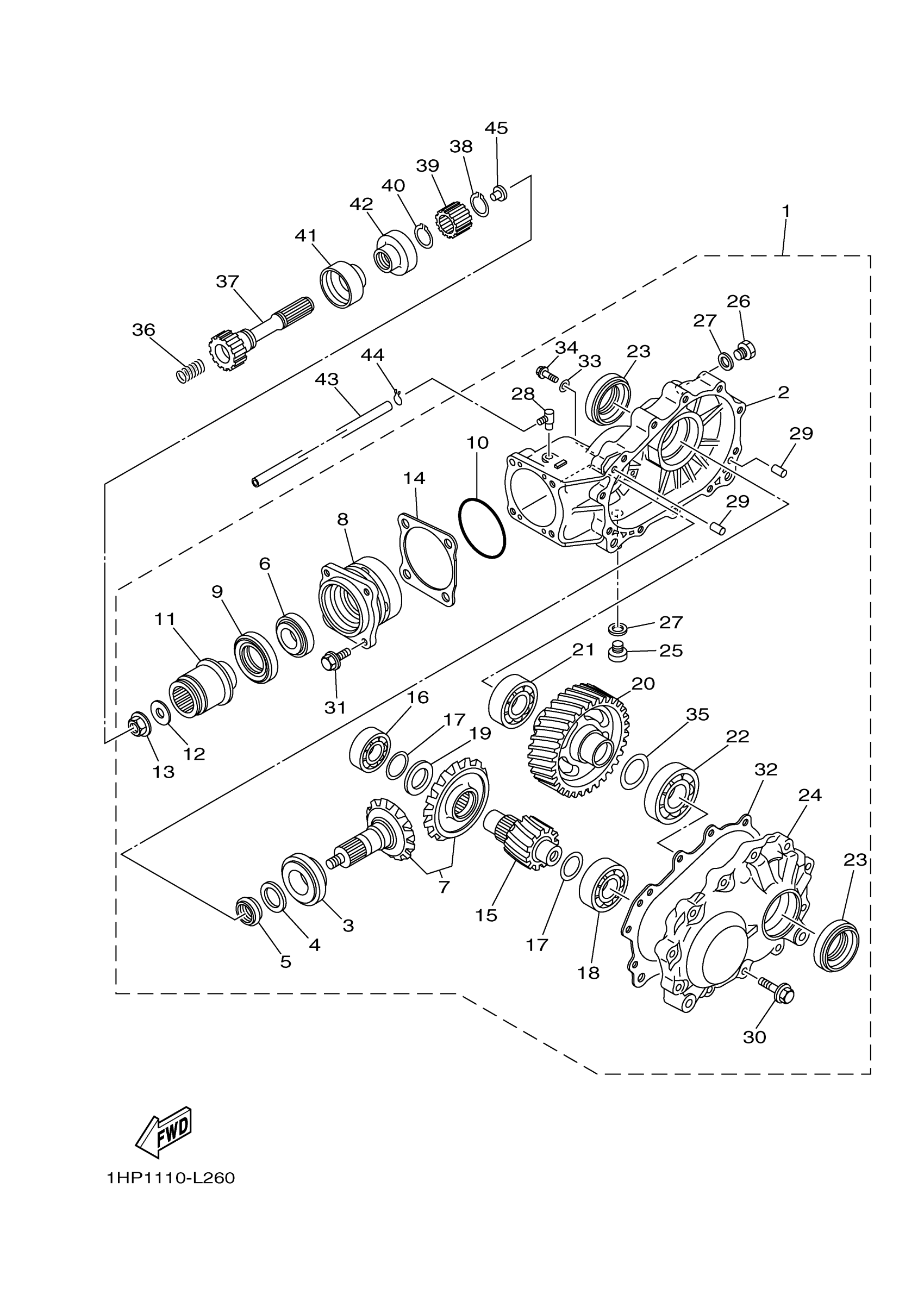

Yamaha YFM70GPSSL (GRIZZLY EPS SE) BYXK 2025 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

1HP-46101-00-00

$1,352.99

2

HOUSING, DRIVE SHAFT

3B4-46151-00-00

$241.99

3

BEARING (70E)

93332-00046-00

$53.99

4

WASHER, PLATE (1J7)

90201-25634-00

$11.49

5

SPACER, EXPANSION

3B4-46129-00-00

$7.99

6

BEARING TAPER 52-25 (70R)

93332-00053-00

Unavailable

7

RING GEAR SET

3B4-461A0-00-00

$437.99

8

HOUSING, PINION BEARING

3B4-46144-00-00

$112.99

9

OIL SEAL(2HR)

93102-35380-00

$22.99

10

O-RING

93210-626A7-00

$14.99

11

COUPLING

3B4-46126-10-00

$96.99

12

WASHER, PLATE

90201-12029-00

$7.49

13

NUT (4X7)

90179-12325-00

$5.60

14

SHIM, DRIVE PISTON (0.3T)

2HR-46127-00-30

$15.49

14

SHIM, DRIVE PISTON (0.3T)

2HR-46127-00-30

$15.49

14

SHIM, DRIVE PISTON (0.40T)

2HR-46127-00-40

Unavailable

14

SHIM, DRIVE PISTON (0.40T)

2HR-46127-00-40

Unavailable

14

SHIM, DRIVE PISTON (0.50T)

2HR-46127-00-50

Unavailable

14

SHIM, DRIVE PISTON (0.50T)

2HR-46127-00-50

Unavailable

15

GEAR, PINION 1

3B4-46316-00-00

Unavailable

16

BEARING (6K8)

93306-205U1-00

Unavailable

17

SHIM, THRUST (0.25T)

3B4-46119-00-00

Unavailable

17

SHIM, THRUST (0.30T)

3B4-46119-10-00

Unavailable

17

SHIM, THRUST (0.35T)

3B4-46119-20-00

Unavailable

17

SHIM, THRUST (0.40T)

3B4-46119-30-00

Unavailable

17

SHIM, THRUST (0.45T)

3B4-46119-40-00

Unavailable

17

SHIM, THRUST (0.50T)

3B4-46119-50-00

Unavailable

18

BEARING(3RR)

93306-30560-00

Unavailable

19

SHIM,THRUST (4.5T)

3B4-4621F-00-00

Unavailable

19

SHIM,THRUST (4.8T)

3B4-4621F-10-00

Unavailable

19

SHIM,THRUST (5.1T)

3B4-4621F-20-00

Unavailable

19

SHIM,THRUST (5.4T)

3B4-4621F-30-00

Unavailable

20

GEAR, WHEEL 1

3B4-46326-01-00

Unavailable

21

BRG,R-B 6007 62MM 150G KY

93306-00702-00

Unavailable

22

BRG,R-B 6207 72MM 280G (688)

93306-207U0-00

Unavailable

23

OIL SEAL(2HR)

93102-35380-00

$22.99

24

HOUSING, BEARING

3B4-46152-00-00

Unavailable

25

PLUG, STRAIGHT SCREW

90340-14002-00

Unavailable

26

PLUG, STRAIGHT(2E9)

90340-14029-00

Unavailable

27

GASKET

214-11198-01-00

Unavailable

28

BREATHER

5UG-15371-00-00

Unavailable

29

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

30

BOLT, FLANGE

95822-08035-00

Unavailable

31

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

32

GSKT., CASE

3B4-4631A-01-00

Unavailable

33

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

34

BOLT, FLANGE

95022-08012-00

Unavailable

35

SHIM (0.25T)

3B4-46344-00-00

Unavailable

35

SHIM (0.30T)

3B4-46344-10-00

Unavailable

35

SHIM (0.35T)

3B4-46344-20-00

Unavailable

35

SHIM (0.40T)

3B4-46344-30-00

Unavailable

35

SHIM (0.45T)

3B4-46344-40-00

Unavailable

35

SHIM (0.50T)

3B4-46344-50-00

Unavailable

36

SPRING, COMPRESSION (400)

90501-20361-00

Unavailable

37

SHAFT, DRIVE

1HP-G6172-00-00

Unavailable

38

CIRCLIP(1EY)

99009-19400-00

Unavailable

39

COUPLING

5KM-46126-00-00

Unavailable

40

CIRCLIP (537)

93410-22039-00

Unavailable

41

SEAL 2

5KM-46137-00-00

Unavailable

42

SEAL 1

5KM-46136-00-00

Unavailable

43

HOSE (L1700)

90445-070G6-00

Unavailable

44

CLIP (1J7)

90467-07029-00

Unavailable

45

DAMPER

5KM-46559-00-00

Unavailable
