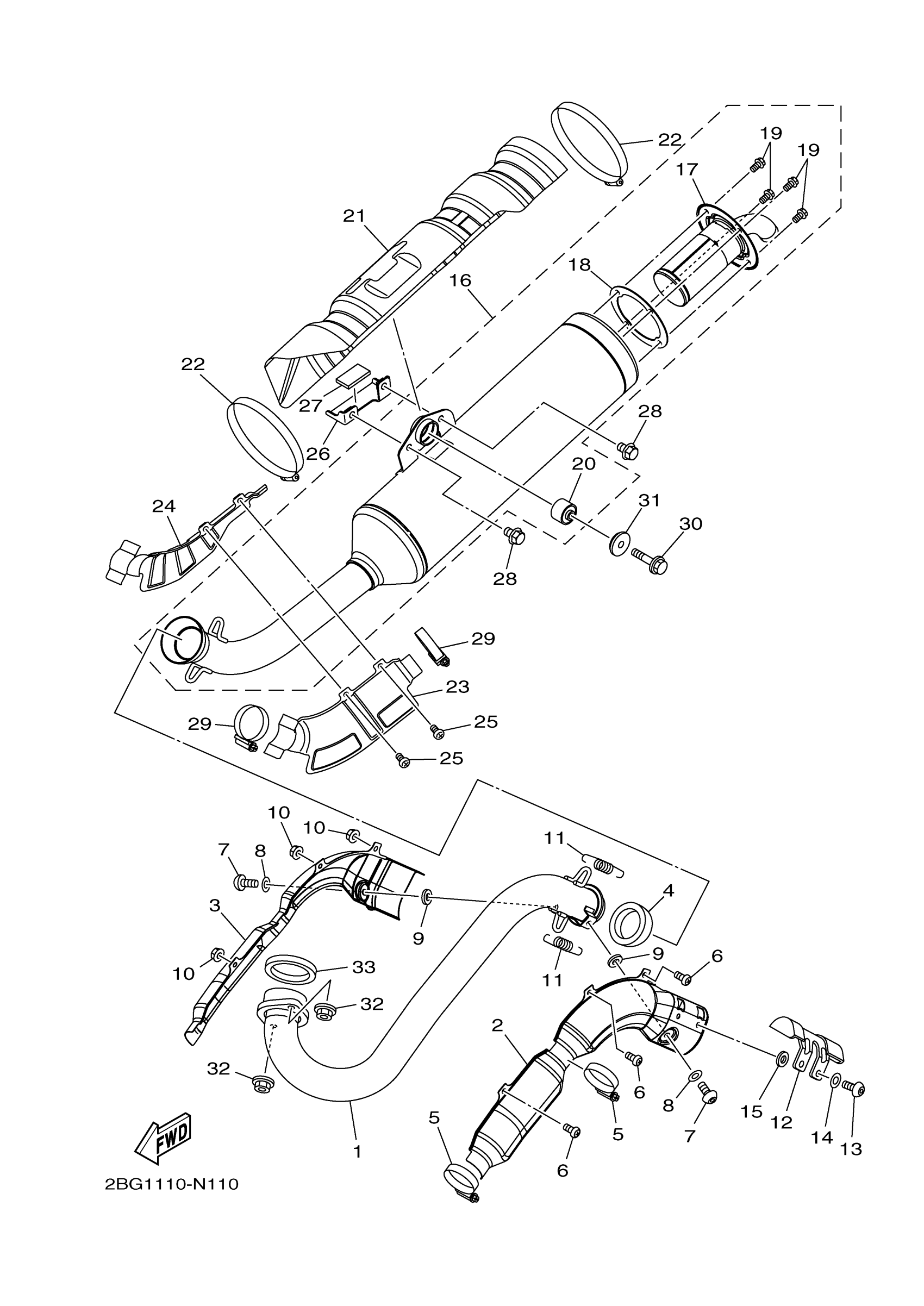

Yamaha YFM70GPSRS (GRIZZLY EPS SE) BYX7 2024 EXHAUST Diagram

PIPE, EXHAUST 1

2BG-E4611-01-00

Unavailable

COVER, EXHAUST

2BG-E4627-00-00

$42.99

PROTECTOR, EXT. PI

B16-E463B-00-00

$58.99

GASKET,MUFFLER

1HP-E4714-00-00

$33.99

HOSE CLAMP ASSY

90450-45806-00

$21.99

SCREW, PAN

98517-06012-00

$3.78

BOLT, BUTTON HEAD

92012-06010-00

$4.30

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

WASHER, PLATE

90201-05037-00

$4.72

NUT, FLANGE

95702-06500-00

$2.39

SPRING, TENSION

90506-30006-00

$16.99

PROTECTOR, SILENCE

1HP-E4758-00-00

Unavailable

BOLT, BUTTON HEAD

92012-06012-00

$4.35

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

WASHER, PLATE

90201-05015-00

$8.49

MUFFLER COMP. 1

B16-E4703-01-00

Unavailable

SPARK ARRESTER ASS

2BG-E4780-00-00

Unavailable

GASKET, SILENCER

2BG-E4755-00-00

Unavailable

BOLT, FLANGE

95022-06012-00

Unavailable

DAMPER,FOOTREST

1HP-F7414-00-00

Unavailable

PROTECTOR, MUFFLER

1HP-E4718-00-00

Unavailable

HOSE CLAMP ASSY

90450-99805-00

Unavailable

PROTECTOR ASSY 1

1HP-E471C-00-00

Unavailable

PROTECTOR ASSY., 2

1HP-E472C-00-00

Unavailable

SCREW, PAN

98517-06012-00

$3.78

STOPPER 1

1HP-E477U-00-00

Unavailable

MAT 1

1HP-E4733-00-00

Unavailable

BOLT, FLANGE

95817-08012-00

Unavailable

HOSE CLAMP ASSY

90450-45806-00

$21.99

BOLT, FLANGE

95817-08040-00

Unavailable

WASHER

3B4-14759-01-00

Unavailable

NUT,FLANGE(J10)

95702-08500-00

Unavailable

GASKET, EXHAUST PIPE

3EG-14613-00-00

Unavailable
