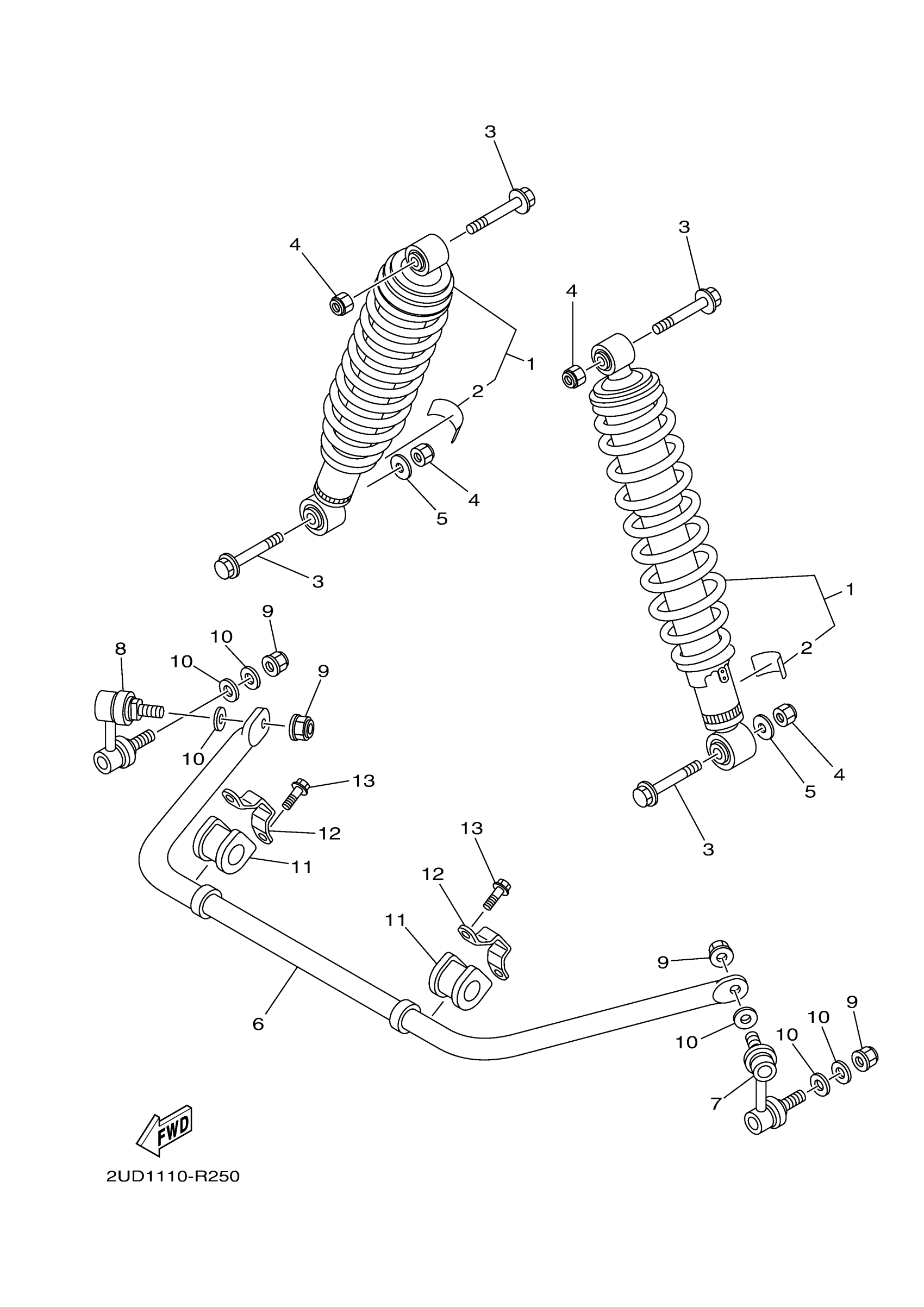

Yamaha YFM70GPSHS (GRIZZLY EPS 4WD SE) 2UDM 2017 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCKABSORBER,RR

2UD-F2200-61-00

$188.57

2

LABEL,WARNING

1HP-F2259-01-00

$15.43

3

BOLT, FLANGE

90105-10131-00

$4.93

4

NUT, SELF-LOCKING

90185-10012-00

$2.78

5

WASHER, PLATE

90201-10035-00

$3.42

6

BAR, STABILIZER

1HP-G7491-01-00

Unavailable

7

JOINT, STABILIZER 1

16B-2385L-10-00

$59.51

8

JOINT, STABILIZER 2

16B-2385M-10-00

$60.41

9

NUT, S/L FLANGE

95602-10200-00

$2.14

10

WASHER, PLATE

90201-10035-00

$3.42

11

BUSH, STABILIZER F

1HP-F386G-00-00

Unavailable

12

COVER, STABILIZER

1HP-F386H-00-00

$3.65

13

BOLT, FLANGE

95817-08014-00

$1.81
