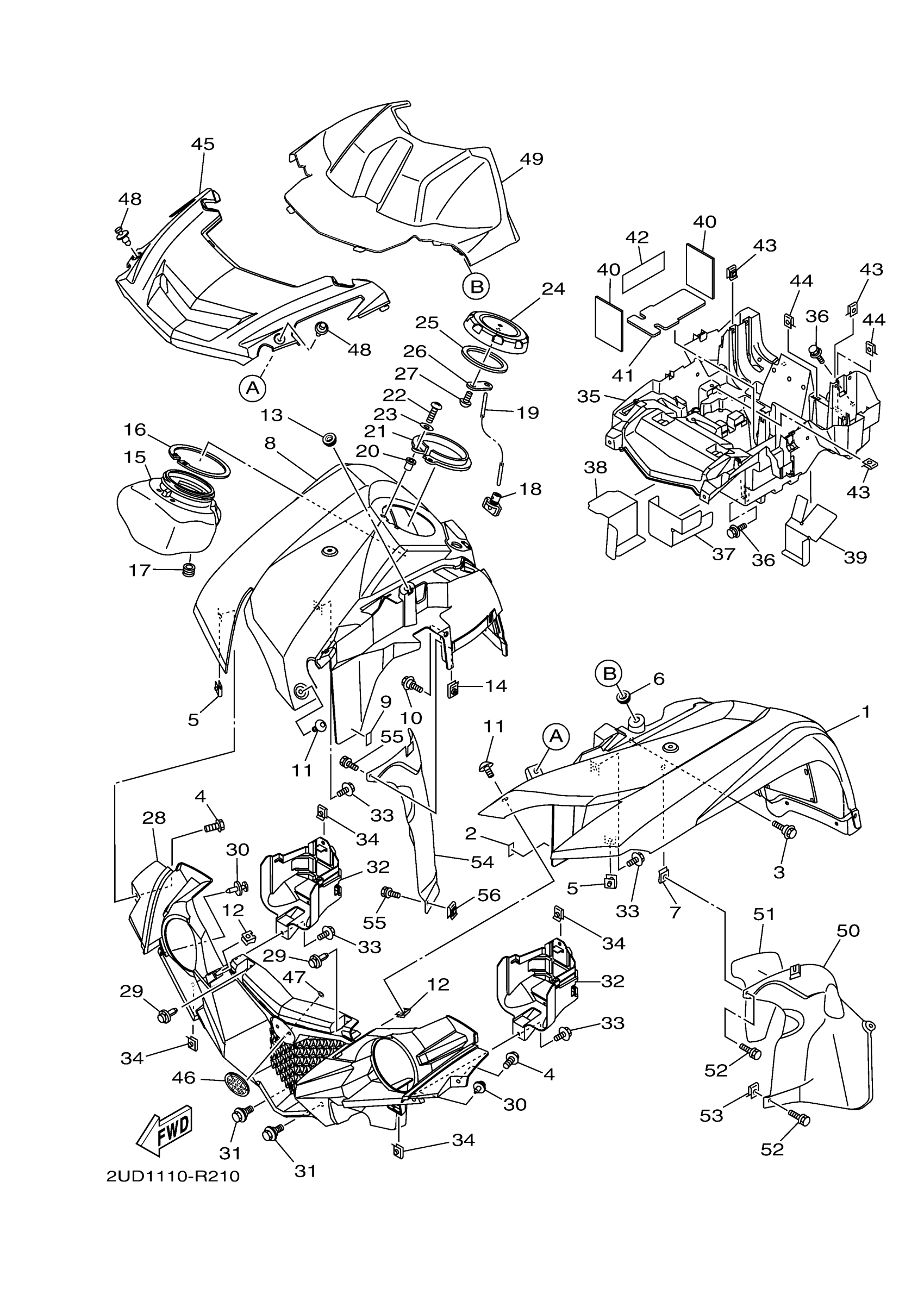

Yamaha YFM70GPLJS (GRIZZLY EPS 4WD LE) B1AP 2018 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

B1A-F1500-10-00

$379.99

2

DAMPER 1

3B4-21541-00-00

$4.21

3

BOLT

90109-06043-00

Unavailable

4

BOLT, WITH WASHER

90119-06159-00

$8.49

5

NUT, SPRING(4ES)

90183-06069-00

Unavailable

6

GROMMET

90480-13014-00

$8.49

7

NUT, SPRING(4ES)

90183-06069-00

Unavailable

8

FRONT FENDER COMP.

2UD-F1501-60-00

Unavailable

9

DAMPER 1

3B4-21541-00-00

$4.21

10

BOLT

90109-06043-00

Unavailable

11

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

12

NUT, SPRING(4ES)

90183-06069-00

Unavailable

13

GROMMET

90480-13014-00

$8.49

14

NUT, SPRING(4ES)

90183-06069-00

Unavailable

15

BOX 1

1HP-F838K-00-00

$23.99

16

SEAL, BOX 1

3B4-2838M-00-00

Unavailable

17

GROMMET

90480-13004-00

Unavailable

18

PLUG, DRAIN

3B4-215A1-00-00

Unavailable

19

STOPPER, OPEN

3B4-2845L-00-00

Unavailable

20

NUT(1KT)

90179-05523-00

Unavailable

21

HOLDER

3B4-2839N-01-00

Unavailable

22

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

CAP

1HP-F151B-00-00

Unavailable

25

SEAL

3B4-28307-00-00

Unavailable

26

PLATE 2

3B4-28487-00-00

Unavailable

27

SCREW, TAPPING (GLOVE BOX)

90164-05800-00

Unavailable

28

GRILLE, FRONT

2UD-F8309-00-00

Unavailable

29

RIVET

90269-07010-00

Unavailable

30

RIVET

90269-06081-00

Unavailable

31

BOLT

90109-06043-00

Unavailable

32

COVER, HEADLIGHT

2UD-F838E-00-00

Unavailable

33

BOLT, WITH WASHER(3RB)

90119-05193-00

Unavailable

34

NUT, SPRING

90183-051A0-00

Unavailable

35

BOX, BATTERY 1

1HP-H212B-02-00

Unavailable

36

BOLT, WITH WASHER

90119-06152-00

Unavailable

37

INSULATOR 1

1HP-H253E-01-00

Unavailable

38

INSULATOR 2

1HP-H253F-00-00

Unavailable

39

INSULATOR

1HP-H254E-01-00

Unavailable

40

INSU.

3B4-8233W-10-00

Unavailable

41

SEAT, BATTERY

3B4-82122-00-00

Unavailable

42

DAMPER

1HP-H2176-01-00

Unavailable

43

NUT, SPRING(4ES)

90183-06069-00

Unavailable

44

NUT, SPRING

90183-05008-00

Unavailable

45

FRONT PANEL COMP.

2UD-F330D-50-00

Unavailable

46

TUNING FORK MARK

2UD-F175B-00-00

Unavailable

47

NUT, SPRING

90183-06071-00

Unavailable

48

RIVET

90269-07010-00

Unavailable

49

PANEL ACCESS. COMP

B31-F83V0-40-00

Unavailable

50

FENDER, INNER

1HP-F1552-00-00

Unavailable

51

SEAL 1

1HP-F1575-01-00

Unavailable

52

BOLT, WITH WASHER

90119-06152-00

Unavailable

53

NUT, SPRING(4ES)

90183-06069-00

Unavailable

54

FENDER, INNER 2

1HP-F1553-00-00

Unavailable

55

BOLT, WITH WASHER

90119-06152-00

Unavailable

56

NUT, SPRING(4ES)

90183-06069-00

Unavailable
