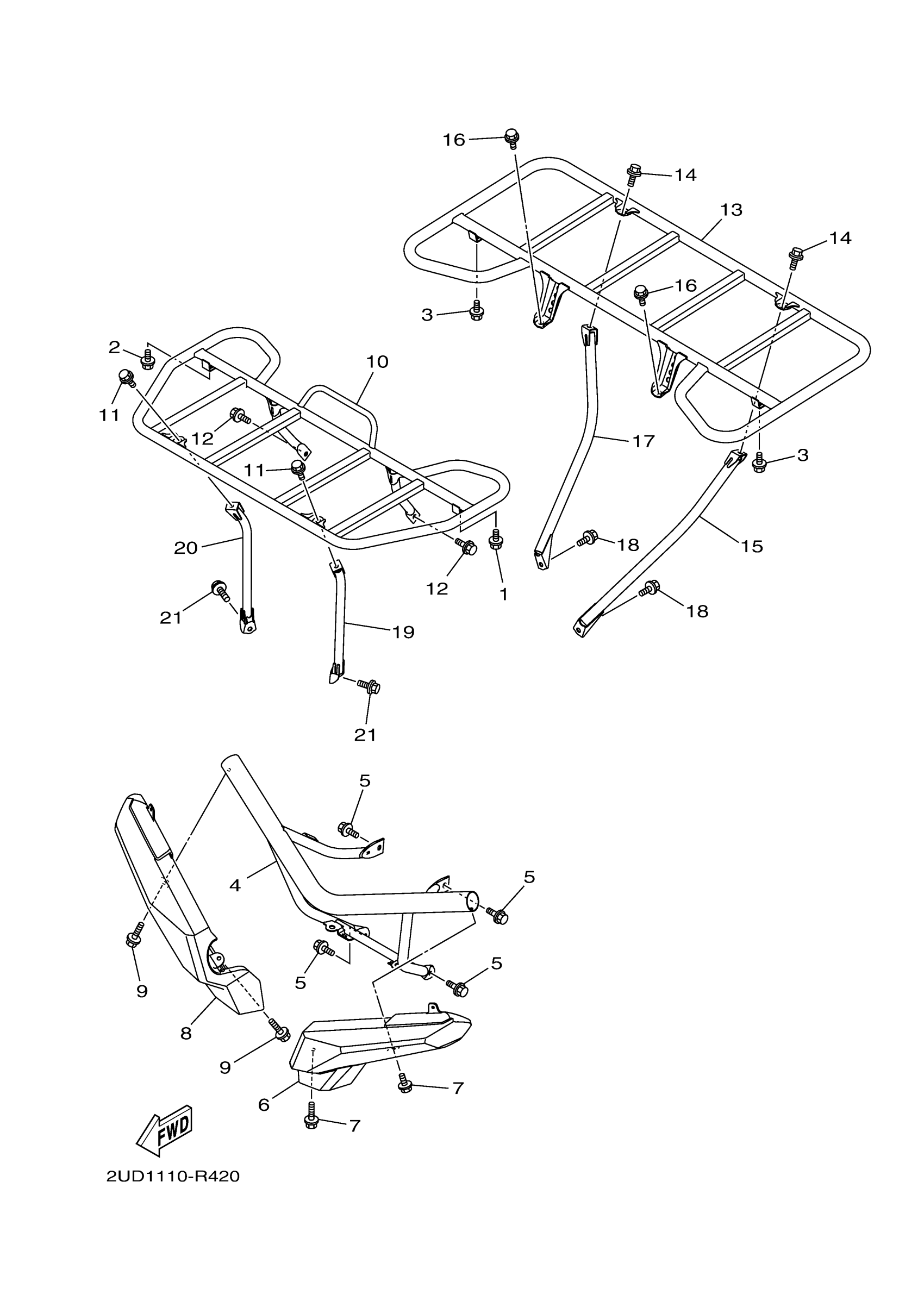

Yamaha YFM70GPLHR (GRIZZLY EPS 4WD LE) 2UDT 2017 GUARD Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06152-00

$2.56

2

BOLT, WITH WASHER

90119-06152-00

$2.56

3

BOLT, WITH WASHER

90119-06152-00

$2.56

4

BAR, CARRY FRONT

2UD-F845N-00-00

$212.66

5

BOLT, FLANGE

95817-08014-00

$1.81

6

COVER 1

2UD-F842M-00-00

$43.71

7

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

8

COVER 2

2UD-F842N-00-00

Unavailable

9

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

10

CARRIER, FRONT

2UD-F4841-01-00

Unavailable

11

BOLT, FLANGE

95817-08012-00

$3.71

12

BOLT, WITH WASHER

90119-08118-00

$5.39

13

CARRIER, REAR

2UD-F4842-00-00

$182.70

14

BOLT, FLANGE

95817-08014-00

$1.81

15

FRAME, CARRIER 1

2UD-F482J-00-00

$38.70

16

BOLT, WITH WASHER

90119-10044-00

Unavailable

17

FRAME, CARRIER 2

2UD-F482K-00-00

Unavailable

18

BOLT, WITH WASHER

90119-10044-00

Unavailable

19

FRAME, CARRIER 1

2UD-F2815-00-00

Unavailable

20

FRAME, CARRIER 2

2UD-F2816-00-00

Unavailable

21

BOLT, FLANGE

95817-08014-00

$1.81
