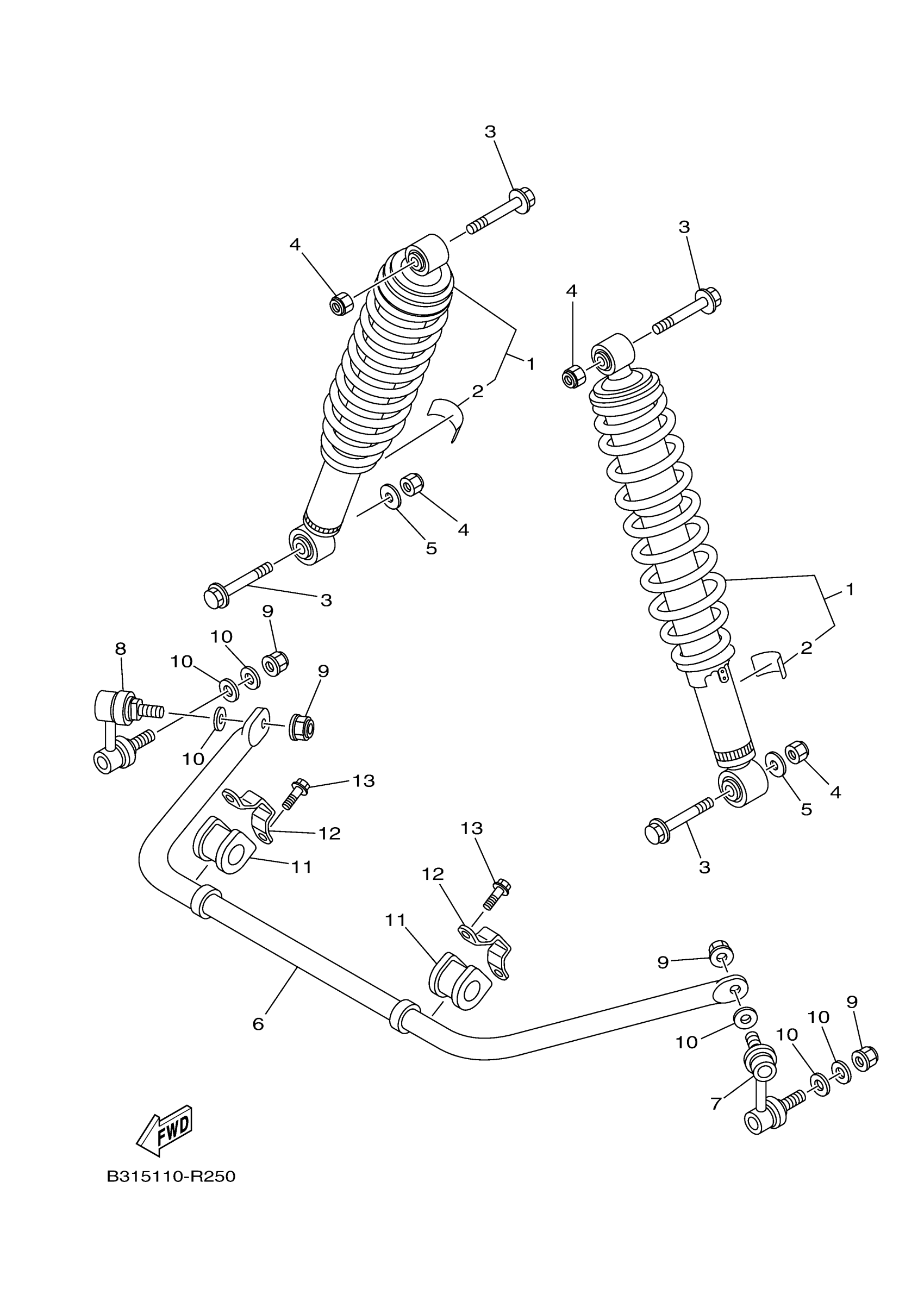

Yamaha YFM70GPLGR (GRIZZLY EPS 4WD LTD EDITION) B315 2016 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

2UD-F2200-31-00

$204.99

2

LABEL,WARNING

1HP-F2259-01-00

$15.49

3

BOLT, FLANGE

90105-10131-00

$5.60

4

NUT, SELF-LOCKING

90185-10012-00

$9.49

5

WASHER, PLATE

90201-10035-00

$4.19

6

BAR, STABILIZER

1HP-G7491-01-00

Unavailable

7

JOINT, STABILIZER 1

16B-2385L-10-00

$72.99

8

JOINT, STABILIZER 2

16B-2385M-10-00

$72.99

9

NUT, S/L FLANGE

95602-10200-00

$4.82

10

WASHER, PLATE

90201-10035-00

$4.19

11

BUSH, STABILIZER F

1HP-F386G-00-00

$4.21

12

COVER, STABILIZER

1HP-F386H-00-00

$5.49

13

BOLT, FLANGE

95817-08014-00

$5.60
