CRANKCASE COVER 1

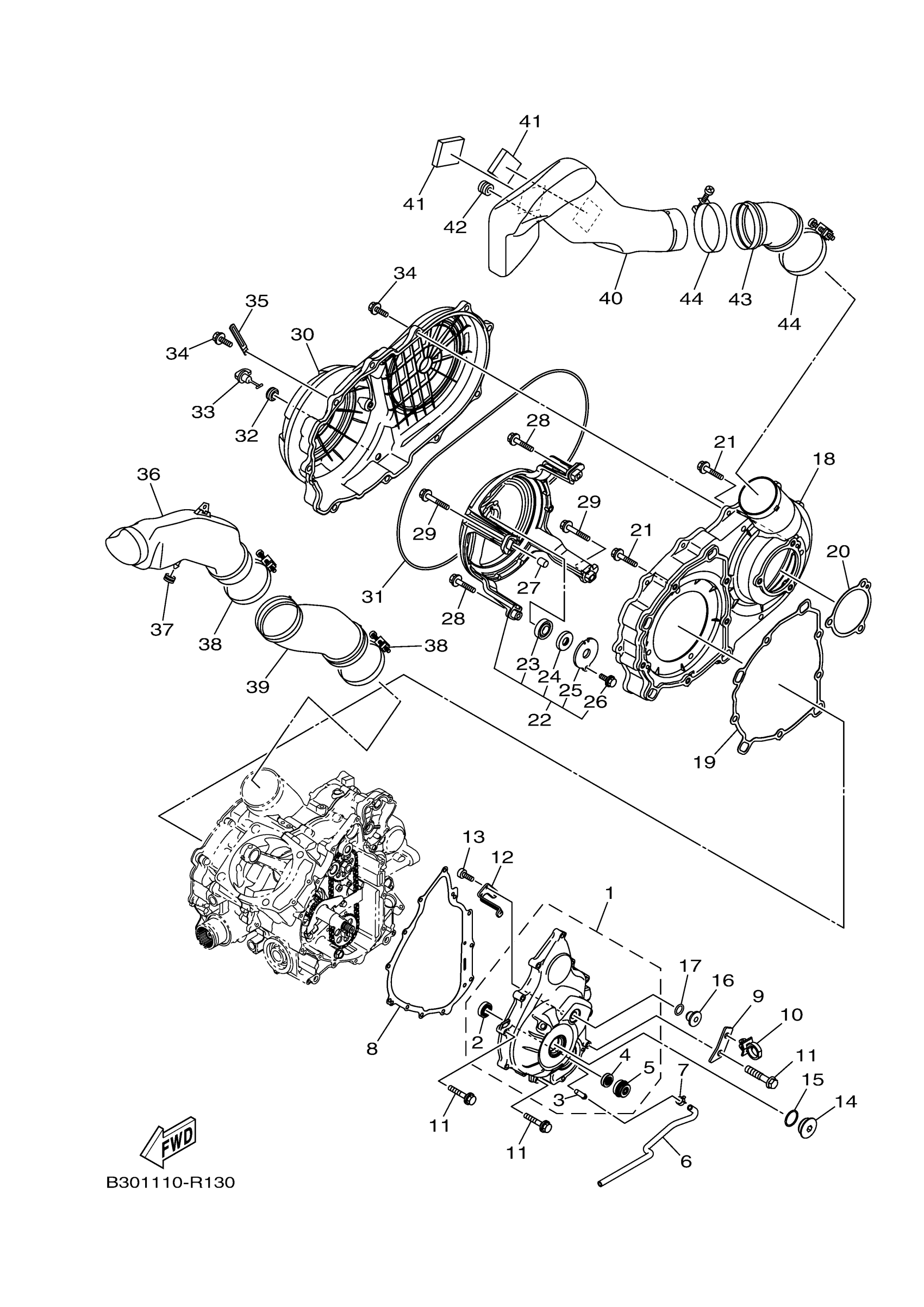

Yamaha YFM70GPLGR (GRIZZLY EPS 4WD LTD EDITION) B315 2016 CRANKCASE COVER 1 Diagram
#
1
CRANKCASE COVER AS
2MB-E5409-00-00
Unavailable
3
PIPE, DRAIN
2MB-E243K-00-00
Unavailable
6
HOSE 5
2MB-E244H-00-00
Unavailable
7
CLIP
2MB-E5179-00-00
Unavailable
9
PLATE
B16-E5191-00-00
Unavailable
10
CLAMP
B16-H1128-00-00
Unavailable
11
BOLT 1
2MB-E5481-50-00
Unavailable
12
PLATE
2MB-E5113-00-00
Unavailable
13
BOLT
2MB-E5187-00-00
Unavailable
14
PLUG, BLIND 2
2MB-E5168-00-00
Unavailable
16
PLUG, BLIND 2
2MB-E5169-00-00
Unavailable
17
O-RING
2MB-E4G97-00-00
Unavailable
18
COVER, CRANKCASE 2
B16-E5421-00-00
Unavailable
19
GASKET
2MB-E5453-00-00
Unavailable
20
SEAL, CRANKCASE
2MB-E5315-00-00
Unavailable
21
BOLT 2
2MB-E5482-10-00
Unavailable
22
HOUSING ASSY
2MB-E5480-00-00
Unavailable
23
BEARING
2MB-E5693-00-00
Unavailable
24
OIL SEAL
2MB-E4005-00-00
Unavailable
25
PLATE, BEARING COV
2MB-E5381-00-00
Unavailable
26
BOLT 2
2MB-E5482-00-00
Unavailable
27
PIN, DOWEL
2MB-E5181-00-00
Unavailable
28
BOLT 2
2MB-E5482-10-00
Unavailable
29
BOLT 2
2MB-E5482-30-00
Unavailable
30
COVER, CRANKCASE 3
B16-E5431-00-00
Unavailable
31
SEAL, CRANKCASE
2MB-E5379-00-00
Unavailable
32
GROMMET
2MB-E5365-00-00
Unavailable
33
PLUG, DRAIN
2MB-E5351-00-00
Unavailable
34
BOLT
2MB-E5768-00-00
Unavailable
35
CLAMP 2
B16-E5484-00-00
Unavailable
36
DUCT, AIR
1HP-E5471-00-00
Unavailable
37
GROMMET(4FU)
90480-13567-00
Unavailable
38
CLAMP,HOSE
90460-85135-00
Unavailable
39
SEAL, AIR DUCT
B16-E5472-00-00
Unavailable
40
DUCT, AIR
1HP-E5473-00-00
Unavailable
41
SEAT, BATTERY
1S3-82123-00-00
Unavailable
42
GROMMET
90480-13014-00
Unavailable
43
SEAL, AIR DUCT
1HP-E5474-00-00
Unavailable
44
CLAMP,HOSE
90460-85135-00
Unavailable
