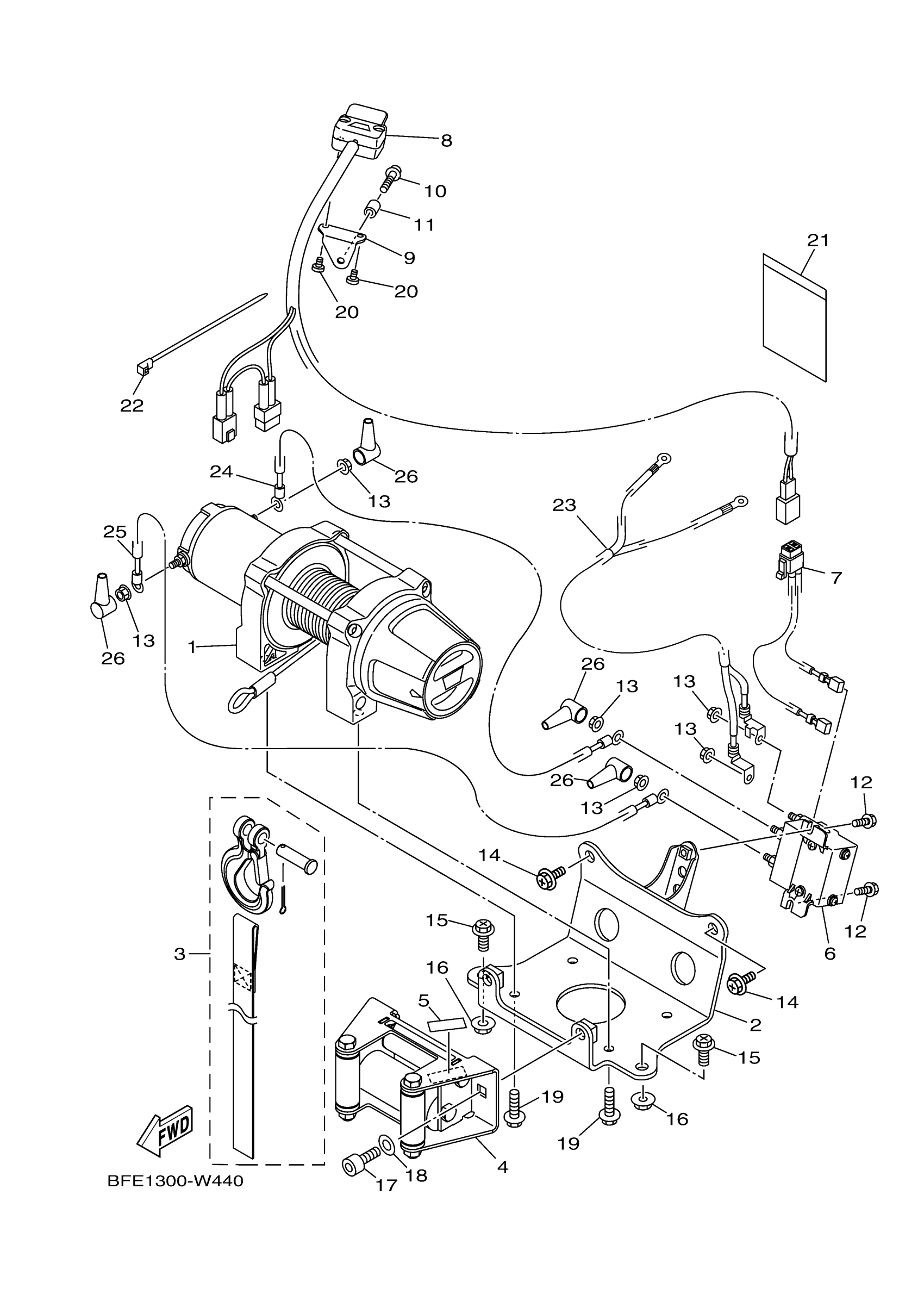

Yamaha YFM70GPHTH (GRIZZLY EPS HUNTING) DH94 2026 WINCH Diagram

#

Description
Price

1

WINCH

BFE-F845V-00-00

$541.86

2

BRACKET 1

BFE-F8426-00-00

$52.06

3

HOOK

BFE-F8488-00-00

$42.35

4

ROLLER

BFE-F178G-00-00

$59.65

5

LABEL 2

BAS-F8459-00-00

$4.54

6

CONTACTOR

BAS-H232W-00-00

$147.68

7

WIRE HARNESS

BFE-82105-00-00

$11.78

8

SWITCH ASSY

BFE-H259E-02-00

$55.54

9

BRACKET, SWITCH

BFE-F1453-00-00

Unavailable

10

BOLT, SMALL FLANGE

95027-06035-00

$1.85

11

COLLAR

90387-06113-00

$10.51

12

BOLT, WITH WASHER

90119-06240-00

$2.97

13

NUT, FLANGE

95702-06500-00

$1.98

14

BOLT, FLANGE

95812-10016-00

$8.25

15

BOLT, FLANGE

95817-10020-00

$5.10

16

NUT, FLANGE(8AB)

95707-10500-00

$1.66

17

BOLT

91312-10020-00

$5.25

18

WASHER, PLATE

90201-10033-00

$6.26

19

BOLT, FLANGE DEEP RECESS

95D32-08020-00

$0.46

20

SCREW, SPECIAL

BFE-F8382-00-00

$0.65

21

BAG INNER 1

B4F-F8479-00-00

$0.92

22

CLAMP(JN6)

90464-40825-00

$1.77

23

WIRE, SUB LEAD

BFE-H2309-00-00

$41.14

24

WIRE, LEAD 3

BFE-H2149-00-00

$14.18

25

WIRE, LEAD 4

BFE-H2148-00-00

$15.82

26

PROTECTOR

BAS-F3472-00-00

$4.31
