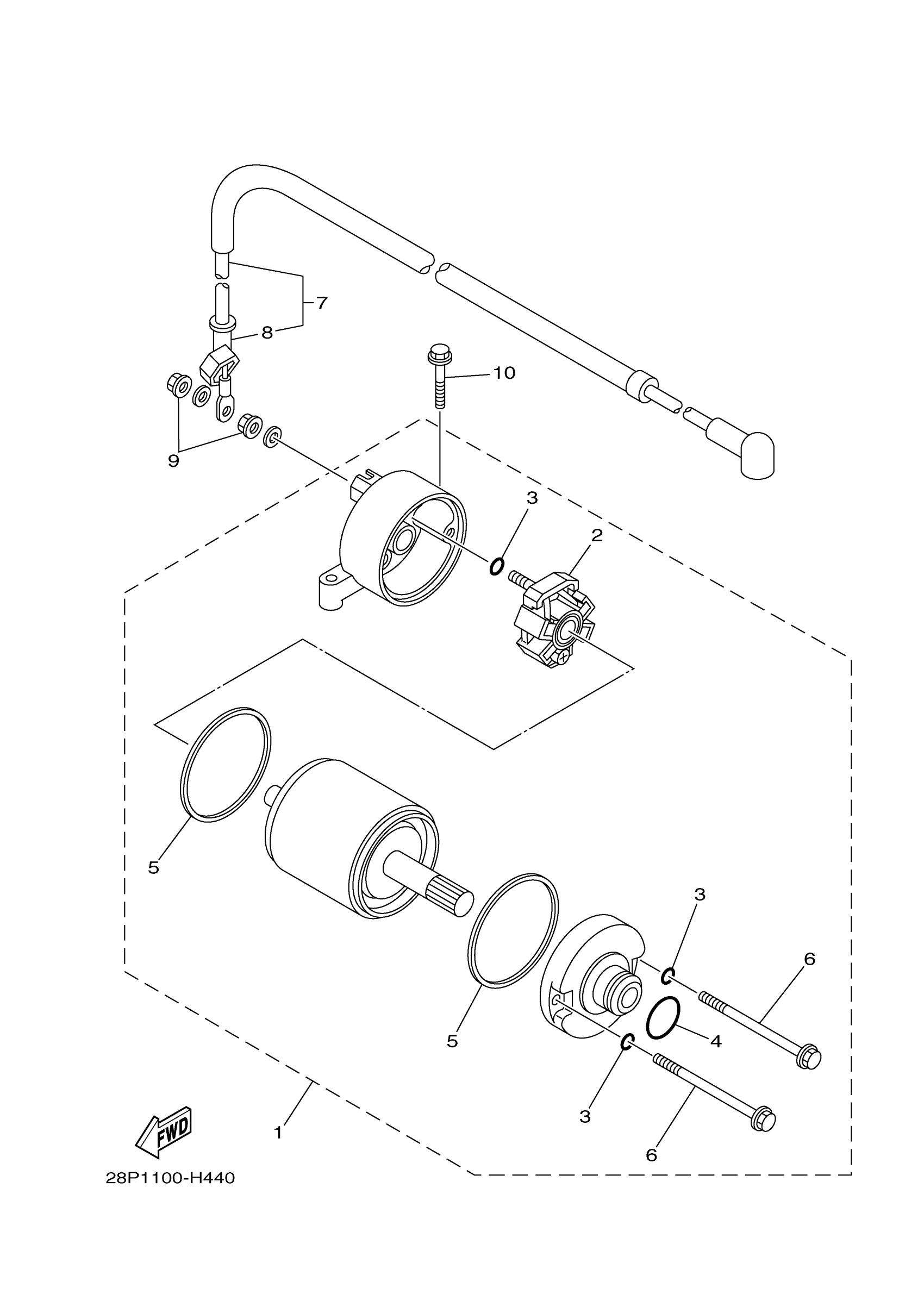

Yamaha YFM70GPHTH (GRIZZLY EPS HUNTING) DH94 2026 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

28P-81890-01-00

$217.79

2

BRUSH HOLDER ASSY

4B5-81840-00-00

$95.57

3

.. O-RING

3TB-81847-00-00

$2.31

4

O-RING (437)

93210-24235-00

$5.72

5

GASKET

35C-81844-00-00

$43.01

6

BOLT

28P-81826-00-00

$13.35

7

CORD, STARTER MOTOR

28P-81815-00-00

$70.78

8

.. CAP

5H0-81871-00-00

Unavailable

9

NUT

4XV-8182A-00-00

$6.28

10

BOLT, FLANGE

95022-06030-00

$1.40
