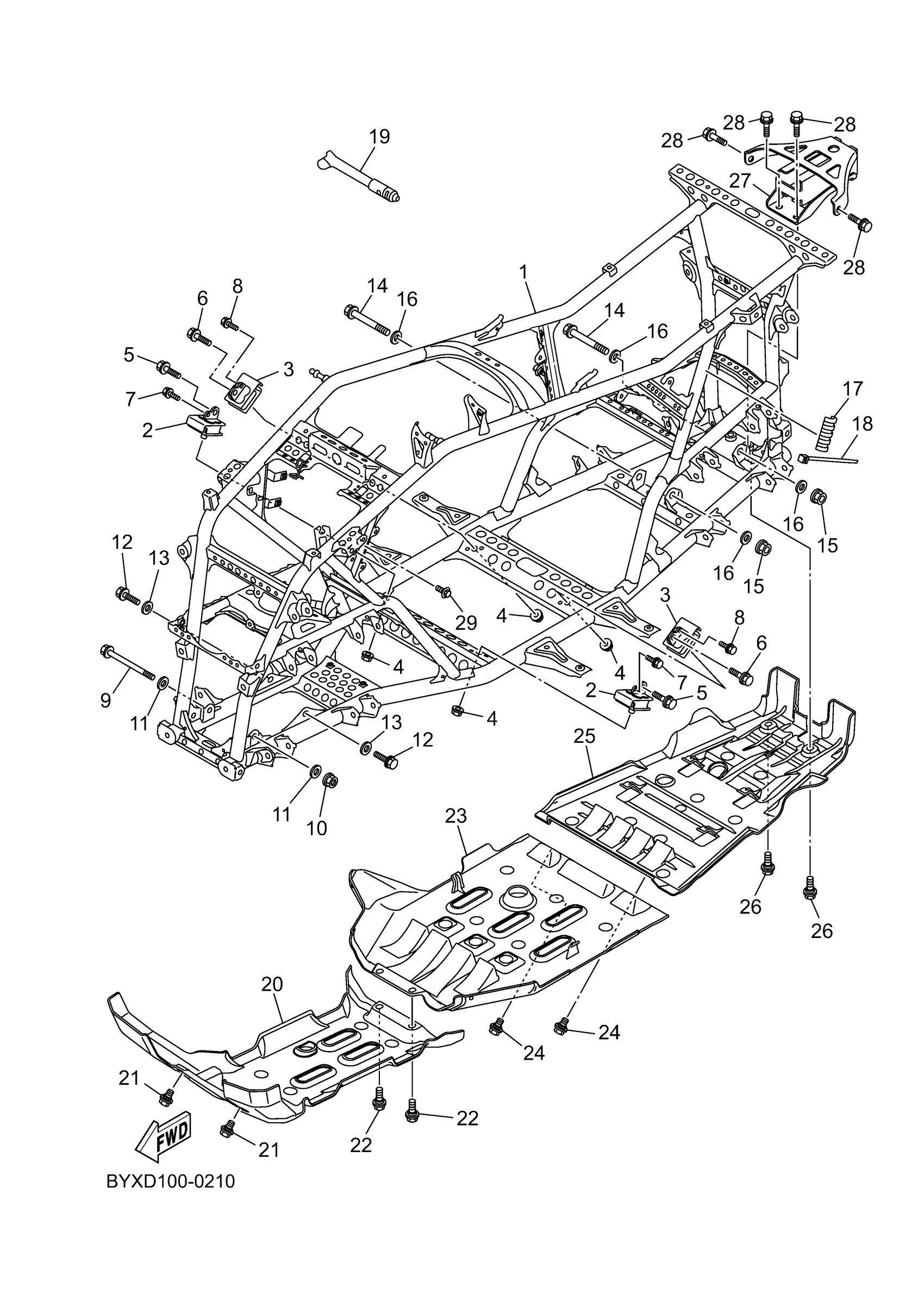

Yamaha YFM70GPHTH (GRIZZLY EPS HUNTING) DH94 2026 FRAME Diagram

#

Description
Price

1

FRAME COMP.

BYX-F1110-00-00

$605.99

2

DAMPER, RUBBER 1

B16-21485-00-00

$27.77

3

DAMPER, RUBBER 1

B16-21485-00-00

$27.77

4

NUT, SELF-LOCKING

90185-10011-00

$3.92

5

BOLT, FLANGE

95812-10035-00

$4.86

6

BOLT, FLANGE

95812-10035-00

$4.86

7

BOLT, FLANGE(2UJ)

95024-06016-00

$6.68

8

BOLT, FLANGE(2UJ)

95024-06016-00

$6.68

9

BOLT, FLANGE

90105-10219-00

$5.74

10

NUT, SELF-LOCKING

90185-10011-00

$3.92

11

WASHER, PLATE

90201-10035-00

$3.56

12

BOLT, FLANGE

95817-10030-00

$6.17

13

WASHER, PLATE

90201-10035-00

$3.56

14

BOLT, FLANGE

90105-10238-00

$6.15

15

NUT, SELF-LOCKING

90185-10011-00

$3.92

16

WASHER, PLATE

90201-10035-00

$3.56

17

DAMPER

3B4-2113B-01-00

$16.66

18

CLAMP(JN6)

90464-40825-00

$1.77

19

GAUGE, AIR

1NV-2811A-01-00

$49.11

20

GUARD, ENGINE 1

B16-F147A-00-00

$24.69

21

BOLT

90109-06202-00

$2.46

22

BOLT

90109-06214-00

$5.72

23

GUARD, ENGINE 2

1HP-F147E-02-00

$29.29

24

BOLT

90109-06214-00

$5.72

25

GUARD, ENGINE 3

B16-F147F-01-00

$30.94

26

BOLT

90109-06202-00

$2.46

27

RR HITCH ASSY

2SM-F3802-00-00

$111.99

28

BOLT, FLANGE

95812-10016-00

$8.25

29

BLOT, FLANGE DEEP RECESS

95D32-06012-00

$6.05
