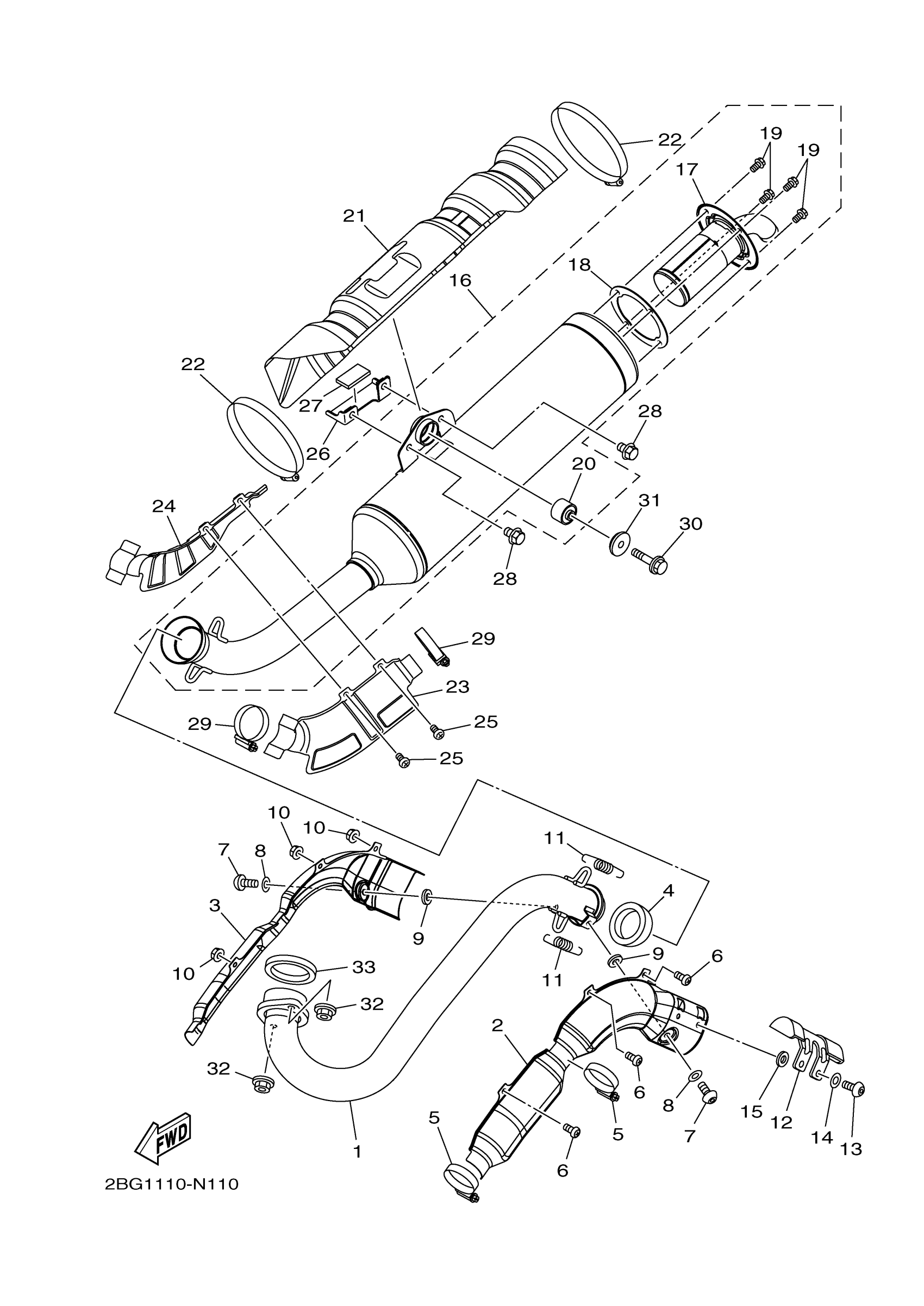

Yamaha YFM70GPHTH (GRIZZLY EPS HUNTING) DH94 2026 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

2BG-E4611-01-00

$75.37

2

COVER, EXHAUST

2BG-E4627-00-00

$41.91

3

PROTECTOR, EXT. PI

B16-E463B-00-00

$47.17

4

GASKET,MUFFLER

1HP-E4714-00-00

$31.49

5

HOSE CLAMP ASSY

90450-45806-00

$18.40

6

SCREW, PAN

98517-06012-00

$3.14

7

BOLT, BUTTON HEAD

92012-06010-00

$2.45

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

9

WASHER, PLATE

90201-05037-00

$3.49

10

NUT, FLANGE

95702-06500-00

$1.98

11

SPRING, TENSION

90506-30006-00

$14.64

12

PROTECTOR, SILENCE

1HP-E4758-00-00

$8.26

13

BOLT, BUTTON HEAD

92012-06012-00

$2.49

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.78

15

WASHER, PLATE

90201-05015-00

$6.29

16

MUFFLER COMP. 1

BVG-E4703-00-00

$396.95

17

SPARK ARRESTER ASS

2BG-E4780-00-00

$60.18

18

GASKET, SILENCER

2BG-E4755-00-00

$18.95

19

BOLT, FLANGE

95022-06012-00

$3.00

20

DAMPER,FOOTREST

1HP-F7414-00-00

$20.12

21

PROTECTOR, MUFFLER

1HP-E4718-00-00

$40.43

22

HOSE CLAMP ASSY

90450-99805-00

$37.45

23

PROTECTOR ASSY 1

1HP-E471C-00-00

$40.82

24

PROTECTOR ASSY., 2

1HP-E472C-00-00

$41.27

25

SCREW, PAN

98517-06012-00

$3.14

26

STOPPER 1

1HP-E477U-00-00

$20.37

27

MAT 1

1HP-E4733-00-00

$17.00

28

BOLT, FLANGE

95817-08012-00

$3.98

29

HOSE CLAMP ASSY

90450-45806-00

$18.40

30

BOLT, FLANGE

95817-08040-00

$5.43

31

WASHER

3B4-14759-01-00

$15.08

32

NUT,FLANGE(J10)

95702-08500-00

$0.80

33

GASKET, EXHAUST PIPE

3EG-14613-00-00

$20.15
