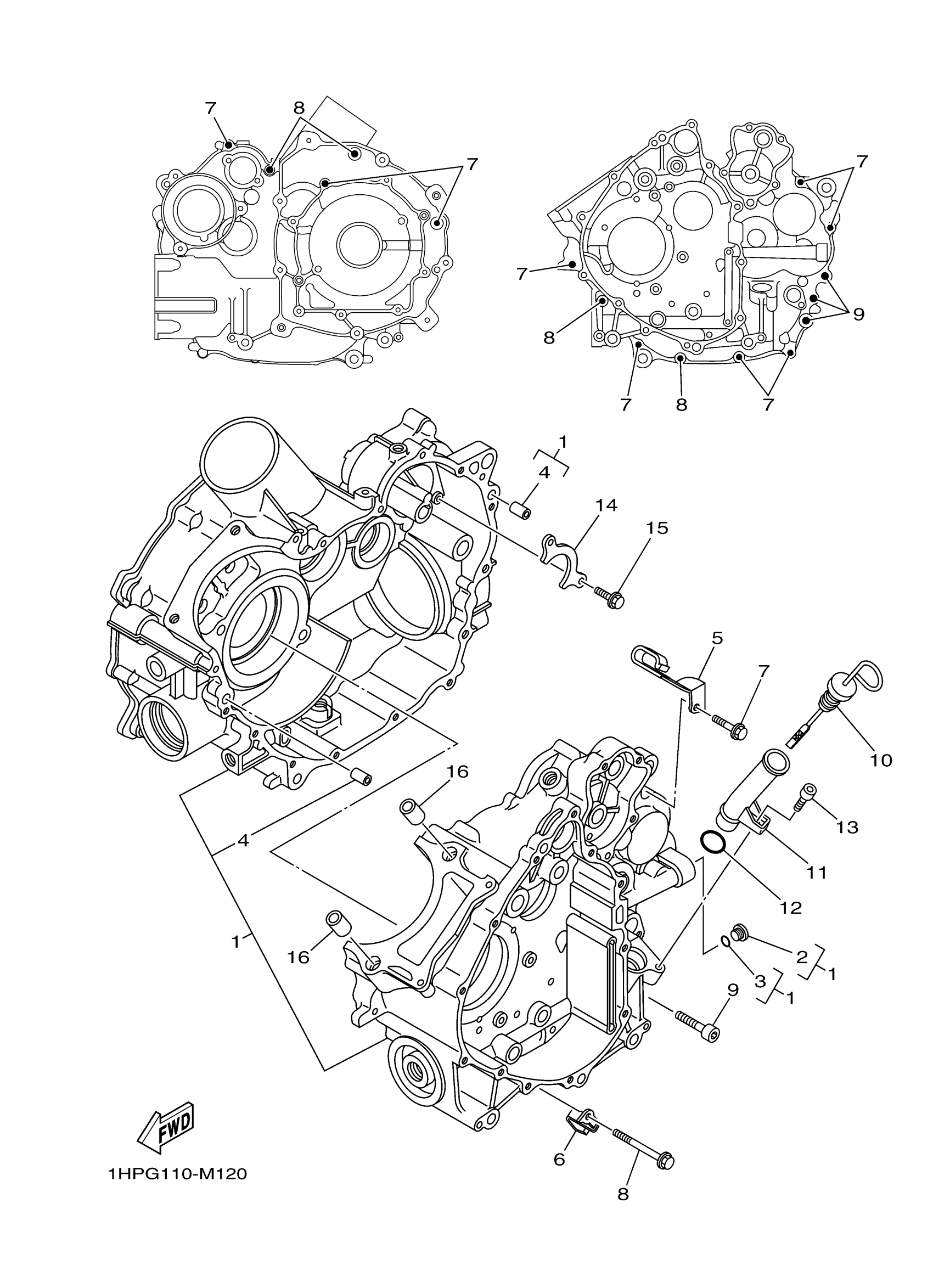

Yamaha YFM70GPHSH (GRIZZLY EPS HUNTING) BYXG 2025 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3B4-15100-27-00

Unavailable

2

PLUG

36Y-15189-01-00

Unavailable

3

O-RING(1L9)

93210-16325-00

$5.47

4

PIN, DOWEL(2VG)

99530-10116-00

$3.14

5

CLAMP

90462-16003-00

Unavailable

6

CLAMP

90462-08049-00

$3.35

7

BOLT, FLANGE

95022-06030-00

$1.31

8

BOLT, FLANGE

95022-06060-00

$5.84

9

BOLT,SOCKET

91314-08040-00

$4.89

10

PLUG, OIL LEVEL

3B4-15362-01-00

$19.67

11

PIPE, OIL

3B4-15112-02-00

$36.21

12

O-RING (26H)

93210-21631-00

$5.99

13

BOLT,SOCKET

91317-06012-00

$5.75

14

PLATE, BEARING COVER

3B4-15388-00-00

$3.55

15

BOLT, FLANGE

95022-06020-00

$3.11

16

PIN, DOWEL

99530-14016-00

Unavailable
