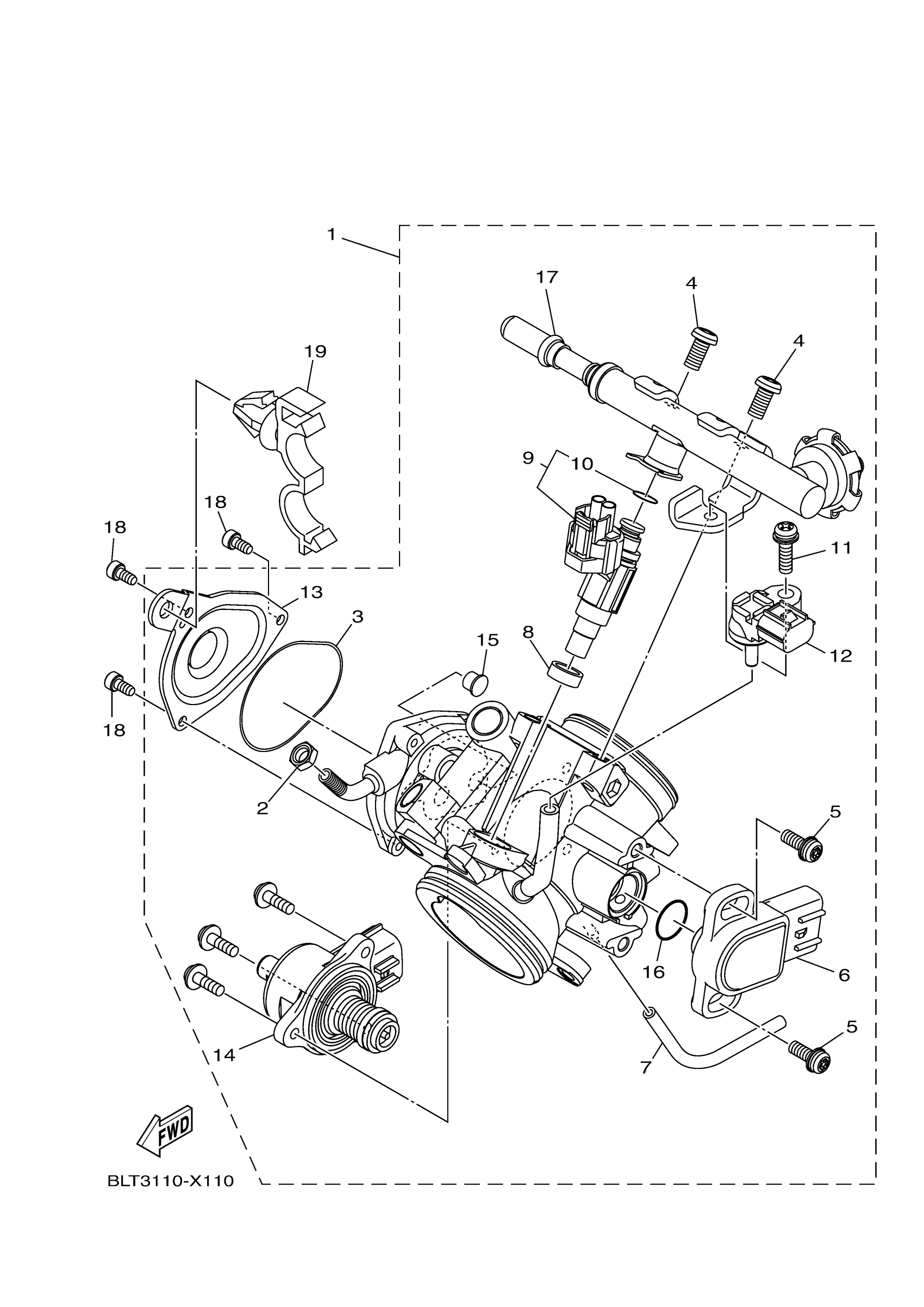

Yamaha YFM70GPHNH (GRIZZLY EPS HUNTING) BLT6 2022 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

B4F-13750-02-00

$753.99

2

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

3

O-RING

5LP-14147-00-00

$11.99

4

SCREW, PAN

98517-06012-00

$3.78

5

SCREW

8CC-14216-10-00

$7.99

6

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

7

HOSE, AIR

1XD-13543-00-00

Unavailable

8

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

9

INJECTOR

1XD-13761-00-00

$163.99

10

O-RING

1XD-14147-00-00

$14.49

11

SCREW

2C0-14216-00-00

$3.28

12

SENSOR, PRESSURE

5S7-82380-00-00

$187.99

13

COVER 1

B16-14293-00-00

Unavailable

14

VALVE, CONTROL

63P-1312A-02-00

Unavailable

15

GUIDE, CABLE

1UY-14155-00-00

$18.49

16

O-RING

5YP-14562-00-00

Unavailable

17

DELIVERY PIPE ASSY

B16-13160-00-00

Unavailable

18

BOLT

91312-04008-00

Unavailable

19

CLAMP

90464-20010-00

Unavailable
