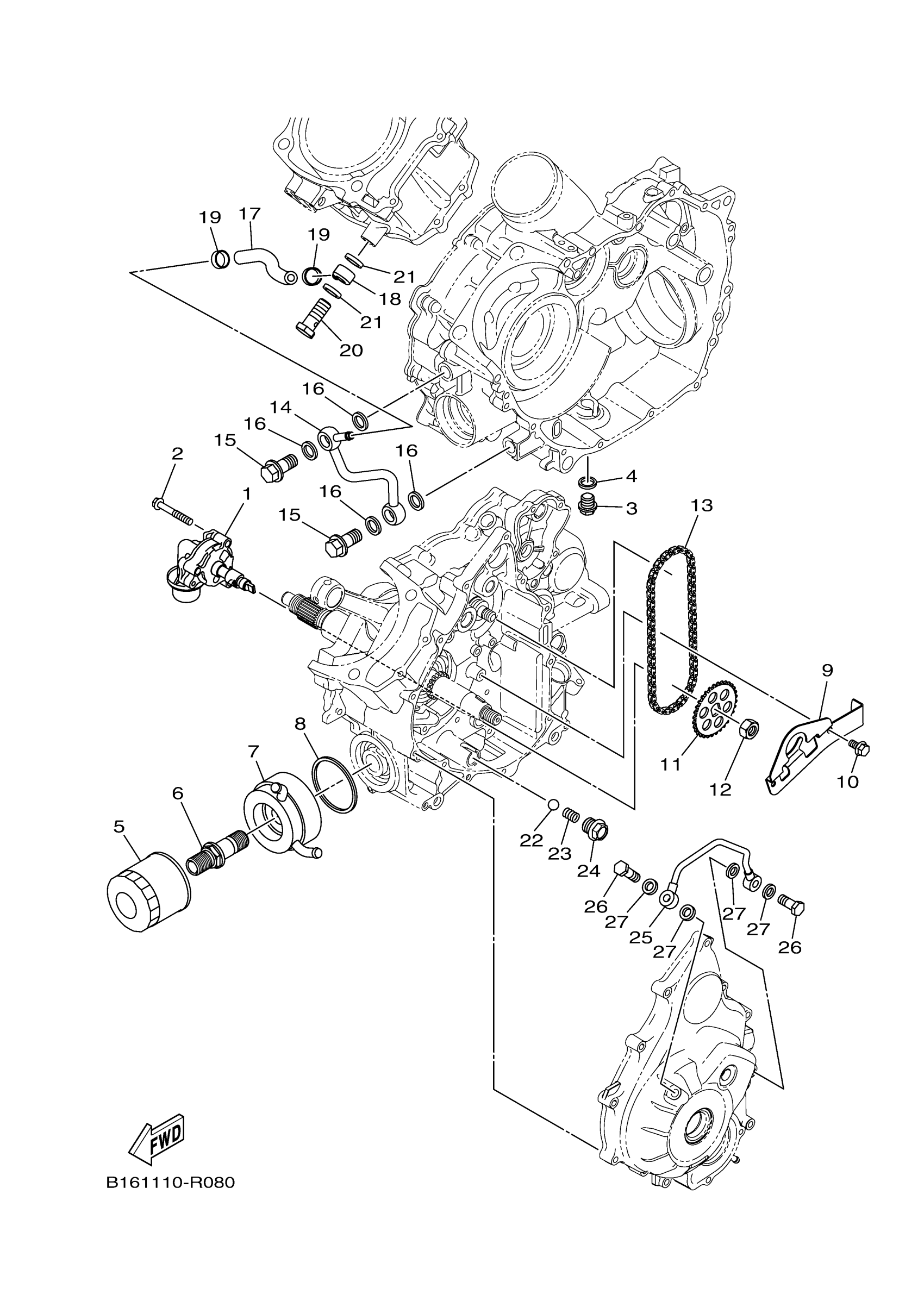

Yamaha YFM70GPHJH (GRIZZLY EPS HUNTER) B1AE 2018 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

2MB-E3300-00-00

Unavailable

2

BOLT 1

2MB-E5481-30-00

$1.56

3

PLUG, BLIND

2MB-E8149-00-00

$2.60

4

GASKET

2MB-E1198-00-00

$2.91

5

ELEMENT ASSY, OIL CLEANER

5DM-13440-00-00

$20.99

6

BOLT 1

B16-E3573-00-00

Unavailable

7

OIL COOLER ASSY

B16-E3470-00-00

Unavailable

8

GASKET

B16-E3475-00-00

$12.49

9

GUIDE, STOPPER 3

2MB-E2221-00-00

$41.99

10

BOLT 1

2MB-E5481-40-00

Unavailable

11

SPROCKET, DRIVEN

2MB-E3355-00-00

Unavailable

12

NUT, SPECIAL

2MB-E1459-00-00

$1.56

13

CHAIN, PRIMARY

2MB-E1456-00-00

Unavailable

14

PIPE, DELIVERY 2

2MB-E3171-00-00

Unavailable

15

BOLT, BANJO

2MB-E3165-00-00

Unavailable

16

GASKET

2MB-E8363-00-00

Unavailable

17

HOSE, OIL 1

2MB-E316F-00-00

Unavailable

18

PIPE, DELIVERY 3

2MB-E3181-00-00

Unavailable

19

CLAMP

2MB-E5485-00-00

Unavailable

20

BOLT, BANJO

2MB-E3166-00-00

Unavailable

21

GASKET

2MB-E1195-00-00

Unavailable

22

BALL

2MB-E8218-00-00

Unavailable

23

SPRING

2MB-E3469-00-00

Unavailable

24

PLUG

2MB-E3455-00-00

Unavailable

25

PIPE, DELIVERY 1

2MB-E3161-00-00

Unavailable

26

BOLT, UNION

2MB-E2858-00-00

Unavailable

27

GASKET

2MB-E3476-00-00

Unavailable
