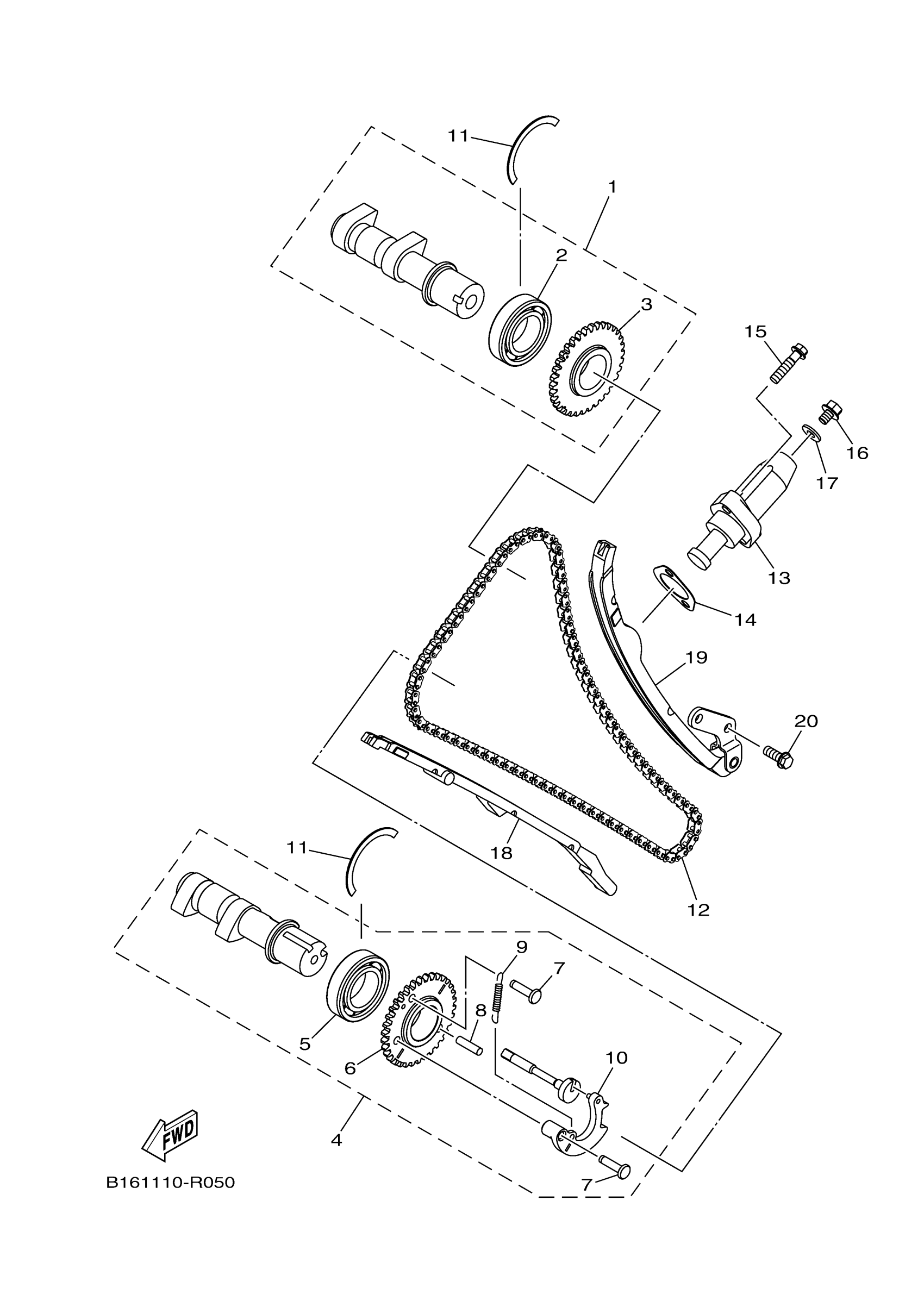

Yamaha YFM70GPHHH (GRIZZLY EPS HUNTER) 2UDH 2017 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

2MB-E2170-00-00

$432.74

2

BEARING, CAMSHAFT

2MB-E2179-00-00

Unavailable

3

SPROCKET, CAM CHAI

2MB-E2176-00-00

Unavailable

4

CAMSHAFT ASSY 2

2MB-E2180-01-00

$816.99

5

BEARING, CAMSHAFT

2MB-E2179-00-00

Unavailable

6

SPROCKET, CAM CHAI

2MB-E2177-00-00

Unavailable

7

PIVOT

2MB-H431W-00-00

Unavailable

8

PIN, DECOMPRESSION

2MB-E2284-00-00

$4.24

9

SPRING, DECOMPRESSION

2MB-E2287-01-00

$3.49

10

WEIGHT

2MB-E217A-00-00

Unavailable

11

CIRCLIP

2MB-E2842-00-00

$3.26

12

CHAIN ASSY

2MB-E2190-00-00

$160.05

13

TENSIONER ASSY, CA

2MB-E2210-00-00

$426.85

14

GASKET, TENSIONER

2MB-E2213-00-00

$1.34

15

BOLT 1

2MB-E5481-20-00

Unavailable

16

BOLT 1

2MB-E5481-00-00

Unavailable

17

GASKET

2MB-E21E2-00-00

Unavailable

18

DAMPER, CHAIN 1

2MB-E2251-00-00

Unavailable

19

DAMPER, CHAIN 2

2MB-E2252-00-00

Unavailable

20

BOLT 2

2MB-E5482-00-00

Unavailable
