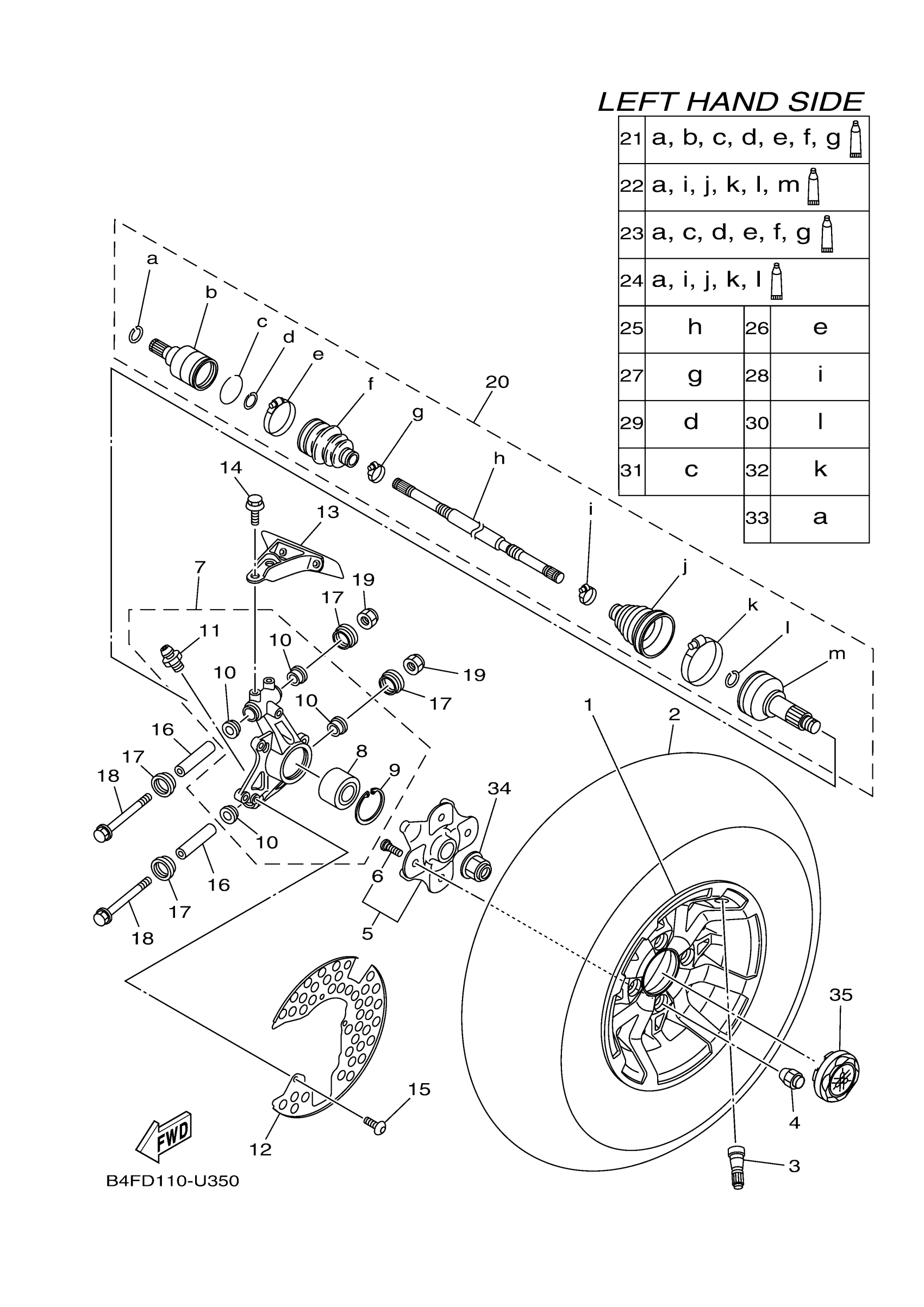

Yamaha YFM70GPATG (GRIZZLY EPS) DH91 2026 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

B32-F5338-00-00

$188.49

2

TIRE (AT26X10-12 MU06Y**TL)

94110-12819-00

$272.66

3

VALVE, RIM

93900-00812-00

$7.49

4

NUT

90179-10032-00

$11.83

5

HUB ASSY 2

B16-F510D-03-00

$51.07

6

BOLT, SERRATION

90114-10014-00

$2.74

7

REAR KNUCKLE ASSY

2BG-F530F-01-00

$130.67

8

BEARING

93305-00602-00

$98.89

9

CIRCLIP

99009-55500-00

$7.26

10

BUSH, SOLID(2NL)

90381-17067-00

$12.49

11

NIPPLE, GREASE

93700-06M03-00

$7.15

12

RING, WHEEL 1 (LEF

BB5-F514A-00-00

$12.25

13

PLATE 1

1HP-F539F-00-00

$17.08

14

BOLT

90109-06840-00

$1.17

15

SCREW, BIND(1JK)

98980-06010-00

$5.20

16

SPACER

5KM-23448-00-00

$15.04

17

COVER, THRUST 1

3JN-23517-00-00

$3.92

18

BOLT, FLANGE

90105-10212-00

$5.62

19

NUT, SELF-LOCKING

90185-10012-00

$2.98

20

REAR DRIVE SHAFT A

2UD-2531H-01-00

$239.74

21

DOUBLE OFF SET JOI

B16-2530V-01-00

$172.84

22

BALL JOINT SET

28P-2510F-10-00

$416.38

23

BOOT SET(DOUBLE OF

B16-2510H-01-00

$66.45

24

BOOT SET (BALL JOI

28P-2510G-10-00

$52.34

25

SHAFT

2UD-2518E-10-00

$100.48

26

BOOT BAND(DOUBLE O

B16-2511H-00-00

$10.02

27

BOOT BAND (SMALL)

B16-2512G-00-00

$7.02

28

BOOT BAND (SMALL)

28P-2512G-00-00

$14.25

29

SNAP RING

B16-2512J-00-00

$3.25

30

CIRCLIP

3B4-2512H-00-00

$5.12

31

CIRCLIP

B16-25182-00-00

$3.11

32

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

$13.06

33

CLIP, SPRING

3B4-2536E-00-00

$6.43

34

NUT

90179-20016-00

$11.20

35

WHEEL CAP ASSY.

1RB-F530B-00-00

$12.27
