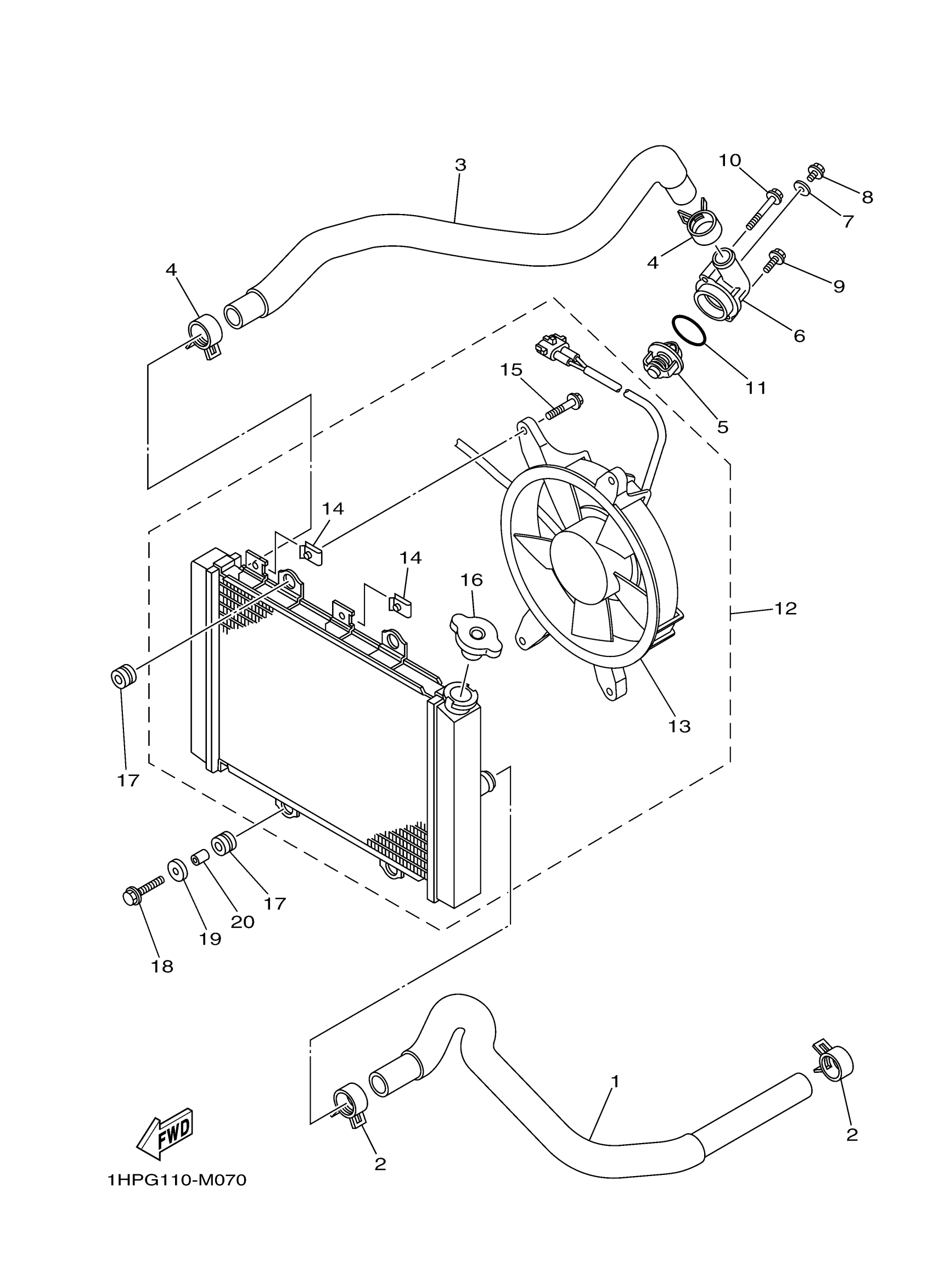

Yamaha YFM70GPATG (GRIZZLY EPS) DH91 2026 RADIATOR & HOSE Diagram

#

Description
Price

1

HOSE 1

1HP-E2576-00-00

$34.97

2

CLIP

90467-26189-00

$5.86

3

HOSE 3

1HP-E2578-00-00

$26.66

4

CLIP

90467-26189-00

$5.86

5

THERMOSTAT

1XD-12411-01-00

$31.72

6

COVER, THERMOSTAT

1S3-12413-00-00

$41.97

7

GASKET 256113960000

90430-06014-00

$7.23

8

BOLT, FLANGE

95022-06010-00

$5.45

9

BOLT, FLANGE

95022-06020-00

$3.32

10

BOLT, FLANGE

95022-06045-00

$2.48

11

O-RING (132)

93210-41042-00

$5.72

12

RADIATOR ASSY

B16-E2460-02-00

Unavailable

13

BLOWER ASSY

B16-E2405-01-00

$175.77

14

. NUT SPRING

1HP-E2535-00-00

$4.85

15

BOLT, BLOWER HOLDING

1HP-E2675-00-00

$3.94

16

CAP, RADIATOR

1XD-E2462-00-00

Unavailable

17

GROMMET(2GH)

90480-12475-00

$6.68

18

BOLT, FLANGE

95817-06020-00

$2.69

19

WASHER

90209-06012-00

$4.71

20

COLLAR

90387-06113-00

$10.51
