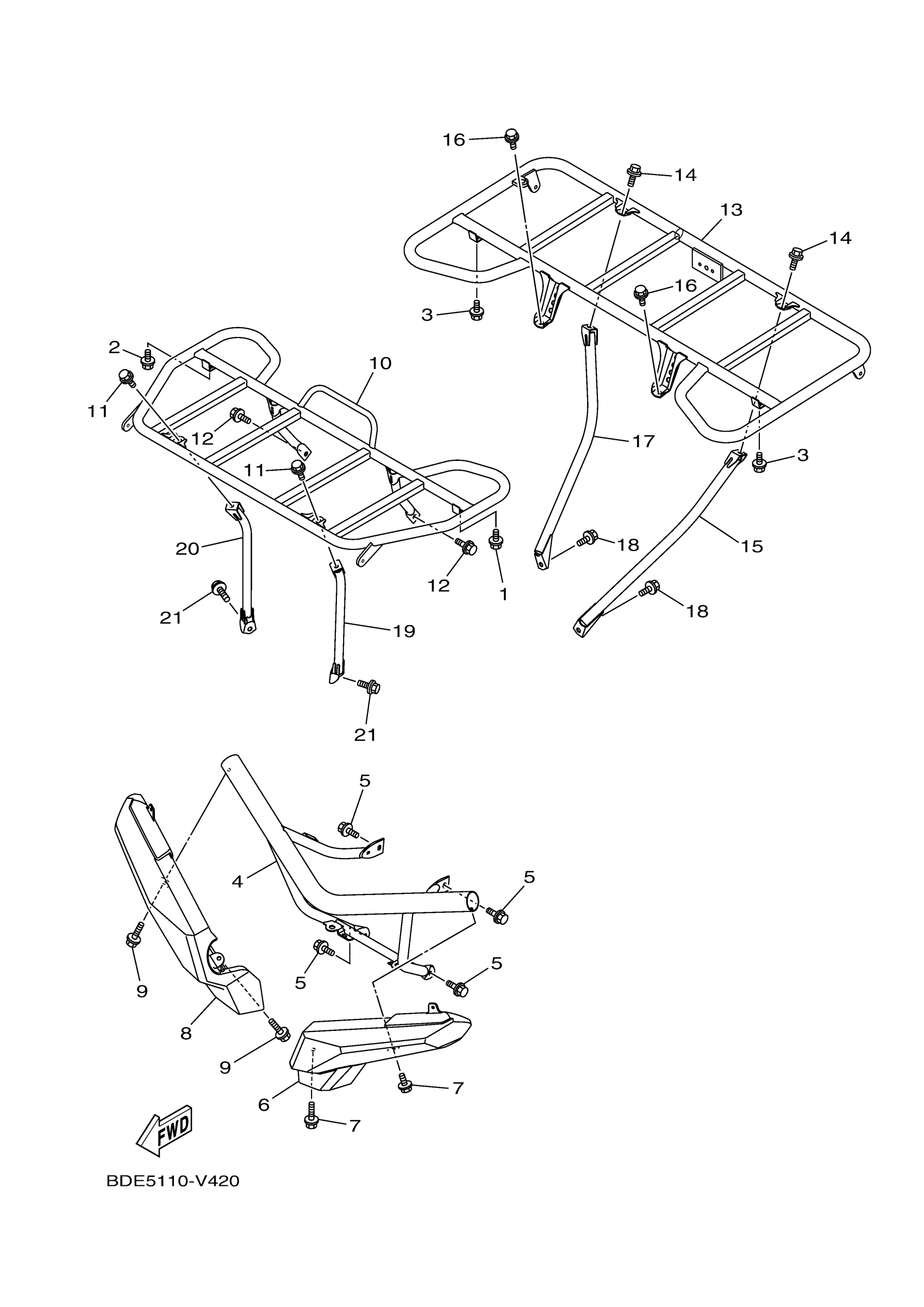

Yamaha YFM70GPATG (GRIZZLY EPS) DH91 2026 GUARD Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06152-00

$2.74

2

BOLT, WITH WASHER

90119-06152-00

$2.74

3

BOLT, WITH WASHER

90119-06152-00

$2.74

4

BAR, CARRY FRONT

2UD-F845N-10-00

Unavailable

5

BOLT, FLANGE

95817-08014-00

$1.94

6

COVER 1

2UD-F842M-00-00

$46.72

7

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.23

8

COVER 2

2UD-F842N-00-00

$46.72

9

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.23

10

CARRIER, FRONT

2UD-F4841-21-00

$168.71

11

BOLT, FLANGE

95817-08012-00

$3.98

12

BOLT, WITH WASHER

90119-08118-00

$5.77

13

CARRIER, REAR

2UD-F4842-40-00

$191.17

14

BOLT, FLANGE

95817-08014-00

$1.94

15

FRAME, CARRIER 1

2UD-F482J-10-00

Unavailable

16

BOLT, WITH WASHER

90119-10044-00

$6.51

17

FRAME, CARRIER 2

2UD-F482K-10-00

$36.05

18

BOLT, WITH WASHER

90119-10044-00

$6.51

19

FRAME, CARRIER 1

2UD-F2815-10-00

$32.05

20

FRAME, CARRIER 2

2UD-F2816-10-00

$32.05

21

BOLT, FLANGE

95817-08014-00

$1.94
