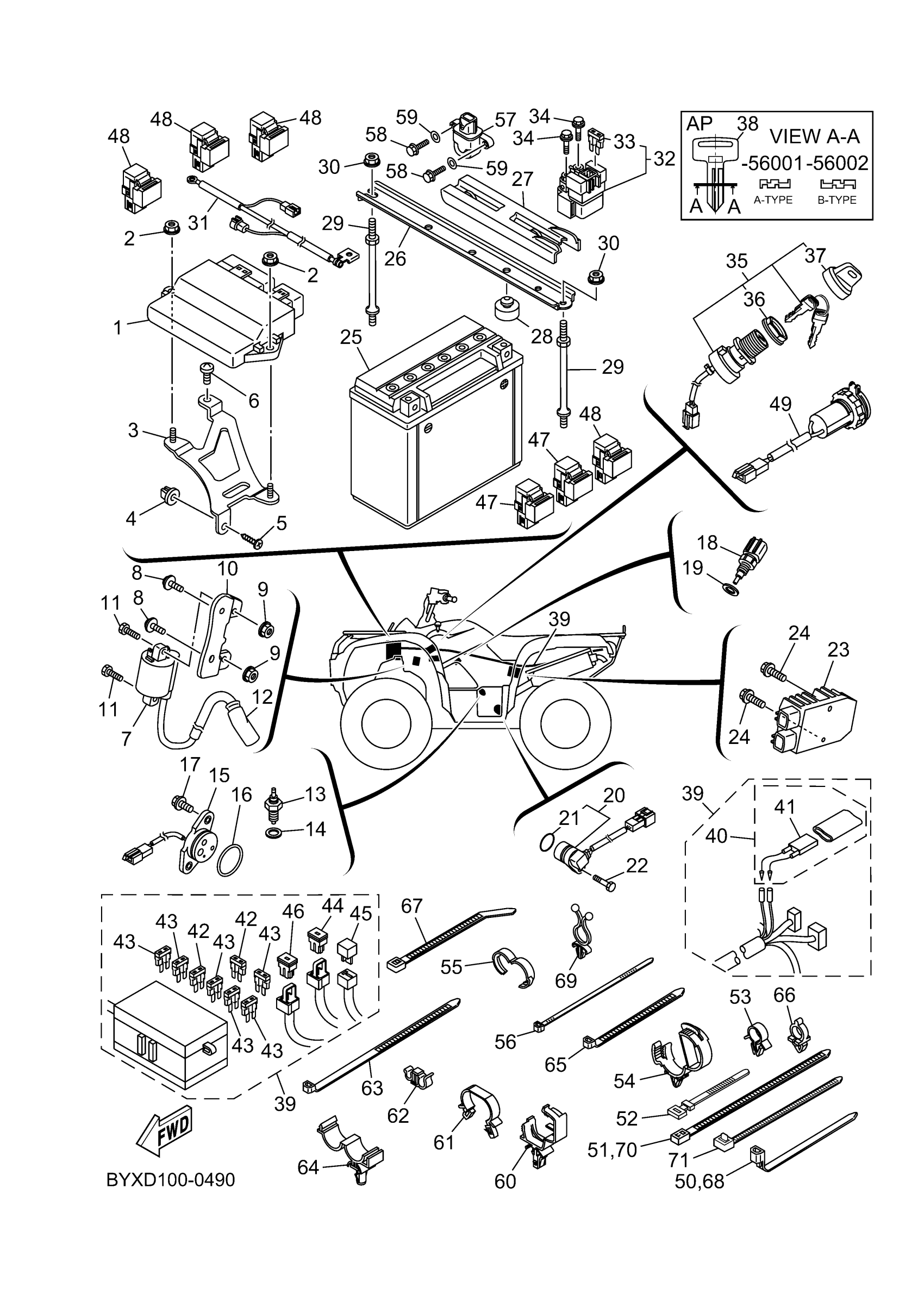

Yamaha YFM70GPATG (GRIZZLY EPS) DH91 2026 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNI

BYX-8591A-00-00

$1,005.99

2

NUT, FLANGE

95702-06500-00

$1.98

3

BRACKET, UNIT

BVG-H5991-00-00

$6.83

4

PLUG(4BP)

90338-08226-00

$1.63

5

SCREW, TAPPING(JA3)

97707-60520-00

$6.68

6

SCREW, BIND(J39)

98980-06014-00

$5.66

7

IGNITION COIL ASSY

1D7-H2310-05-00

$16.74

8

BOLT, HEXAGON

97017-06020-00

$2.55

9

NUT, U FLANGE

95604-06200-00

$2.35

10

BRACKET, IGNITION COIL

B4F-82316-00-00

$3.63

11

BOLT, WITH WASHER

90119-06209-00

$5.45

12

PLUG CAP ASSY

5VK-82370-00-00

$42.40

13

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$52.07

14

GASKET (1KH,1.0T)

90430-10148-00

$4.74

15

NEUTRAL SWITCH ASSY

3B4-82540-03-00

Unavailable

16

O-RING (371)

93210-29196-00

$6.45

17

BOLT, WITH WASHER

90119-06137-00

$6.25

18

THERMOSENSOR ASSY

5YP-85790-00-00

$54.91

19

GASKET(2GH)

90430-12202-00

$7.09

20

SENSOR, SPEED

3B4-83755-01-00

$115.46

21

O-RING

4D9-81168-00-00

$3.71

22

BOLT,SOCKET HEAD

91314-06020-00

$2.05

23

RECTIFIER & REGULATOR ASSY

1D7-81960-11-00

Unavailable

24

BOLT, FLANGE DEEP RECESS

95D32-06020-00

$0.74

25

BATTERY ASSY (YUASA YTX20L-BS)

5FU-H2100-21-00

$165.99

26

BRACKET, BATTERY

1HP-H2128-00-00

$6.11

27

COVER, BATTERY

3B4-82129-01-00

$3.35

28

PAD, SEAT

B4F-F4741-00-00

$1.12

29

SCREW, FITTING

3B4-82133-20-00

$19.43

30

NUT, FLANGE

95702-06500-00

$1.98

31

WIRE, MINUS LEAD

BVG-82116-00-00

$62.23

32

STARTER RELAY ASSY (2768113-A)

3B4-81940-00-00

$76.02

33

FUSE (12V 15A)

36Y-82151-00-00

$4.08

34

BOLT, FLANGE

95022-06008-00

$4.70

35

MAIN SWITCH ASSY

28P-82510-02-00

$60.93

36

NUT, MAIN SWITCH

3HN-82569-00-00

$5.26

37

CAP, KEY

3HN-82579-00-00

$12.27

38

KEY, BLANK (A-TYPE)

90890-56001-00

$2.92

38

KEY, BLANK (B-TYPE)

90890-56002-00

$2.92

39

WIRE HARNESS ASSY

BYX-82590-00-00

$997.99

40

CIRCUIT BREAKER ASSY

5GT-82180-00-00

$27.83

41

THERMO SWITCH ASSY

4GB-82560-00-00

$33.54

42

FUSE

5JJ-82151-20-00

$6.42

43

. FUSE (10A)

67F-82151-40-00

$6.67

44

FUSE

BDW-82151-D0-00

$9.06

45

DIODE ASSY

3WP-81980-00-00

$18.85

46

FUSE

BDW-82151-A0-00

$9.06

47

RELAY ASSY

5DM-81950-01-00

$24.72

48

RELAY ASSY (8DM-11)

8DM-81950-11-00

$23.86

49

TERMINAL COMP.

1HP-H254B-10-00

$15.91

50

CLAMP(4FM)

90464-15195-00

$2.77

51

CLAMP(JN6)

90464-40825-00

$1.77

52

BAND, SWITCH CORD

437-83936-01-00

$4.63

53

CLAMP(3XV)

90464-15157-00

$6.17

54

CLAMP(4AP)

90464-20181-00

$2.80

55

CLAMP

90464-16001-00

$1.71

56

CLAMP

5Y9-12491-00-00

$6.38

57

SENSOR, LEAN ANGLE

3B4-82576-10-00

$51.47

58

BOLT(6A1)

97095-05016-00

$1.46

59

WASHER, PLAIN (646)

92990-05600-00

Unavailable

60

CLAMP(4SV)

90464-20237-00

$1.78

61

CLAMP(4NK)

90464-24230-00

$5.62

62

CLAMP

90464-09013-00

$4.15

63

BAND, SWITCH CORD

25G-83936-01-00

$4.12

64

CLAMP

90464-16012-00

$5.43

65

CLAMP (6E5)

90465-13M11-00

$5.72

66

CLAMP

90464-12830-00

$1.02

67

CLAMP

90465-10098-00

$2.24

68

CLAMP(4FM)

90464-15195-00

$2.77

69

CLAMP(6H4)

90464-12M35-00

$2.45

70

CLAMP(JN6)

90464-31827-00

$2.63

71

CLAMP

90464-48800-00

$3.54
