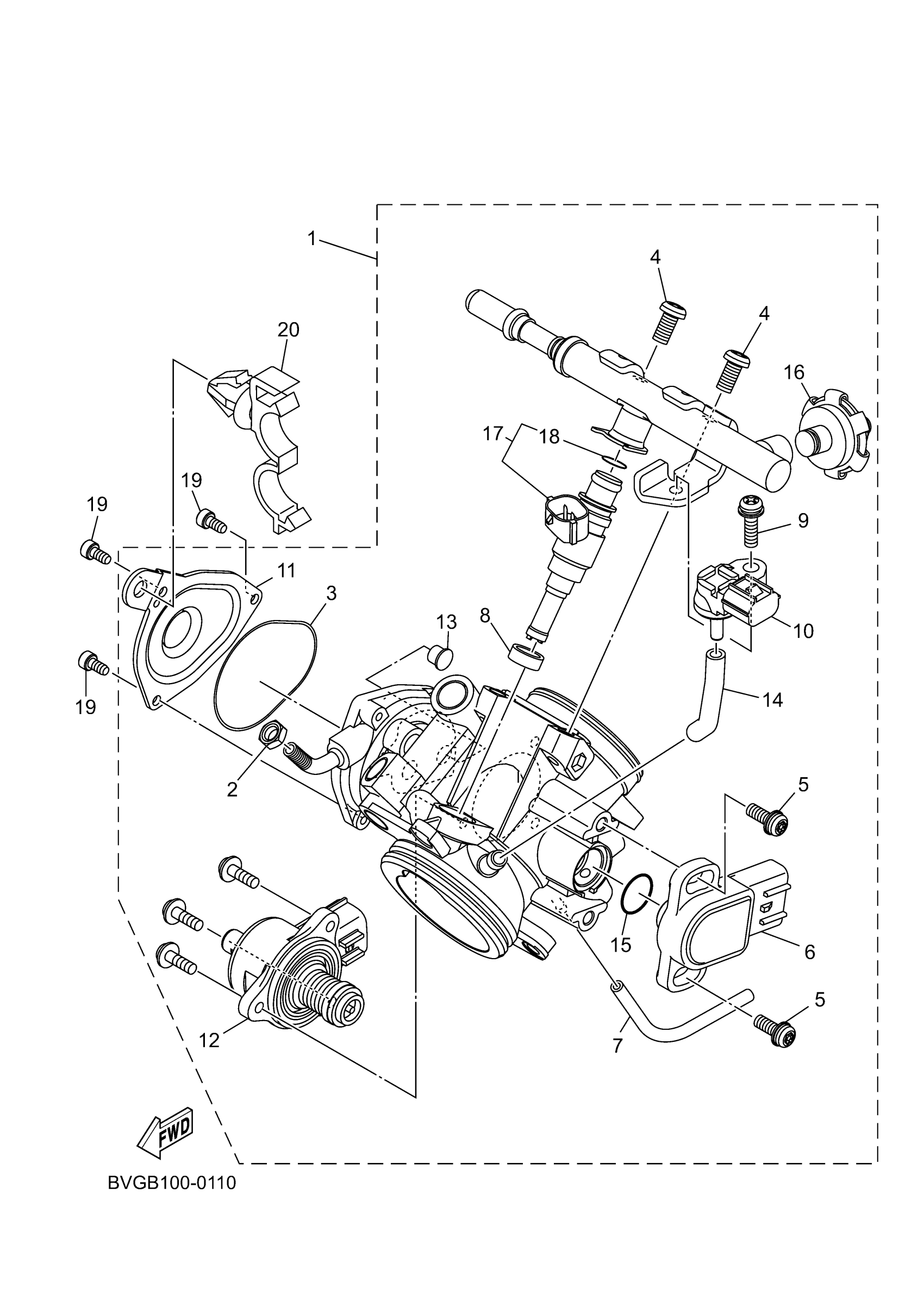

Yamaha YFM70GPASD (GRIZZLY EPS) BYXD 2025 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

BVG-13750-00-00

$819.99

2

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

3

O-RING

5LP-14147-00-00

$11.99

4

SCREW, PAN

98517-06012-00

$3.78

5

SCREW

8CC-14216-10-00

$7.99

6

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

7

HOSE, AIR

1XD-13543-00-00

Unavailable

8

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

9

SCREW

2C0-14216-00-00

$3.28

10

SENSOR, PRESSURE

5S7-82380-00-00

$187.99

11

COVER 1

B16-14293-00-00

Unavailable

12

VALVE, CONTROL

63P-1312A-02-00

Unavailable

13

GUIDE, CABLE

1UY-14155-00-00

$18.49

14

PIPE

8FP-14349-20-00

$7.49

15

O-RING

5YP-14562-00-00

$7.99

16

DAMPER

5VK-13982-00-00

Unavailable

17

INJECTOR ASSY

3B4-13761-00-00

Unavailable

18

O-RING

5PS-14147-00-00

Unavailable

19

BOLT

91312-04008-00

Unavailable

20

CLAMP

90464-20010-00

Unavailable
