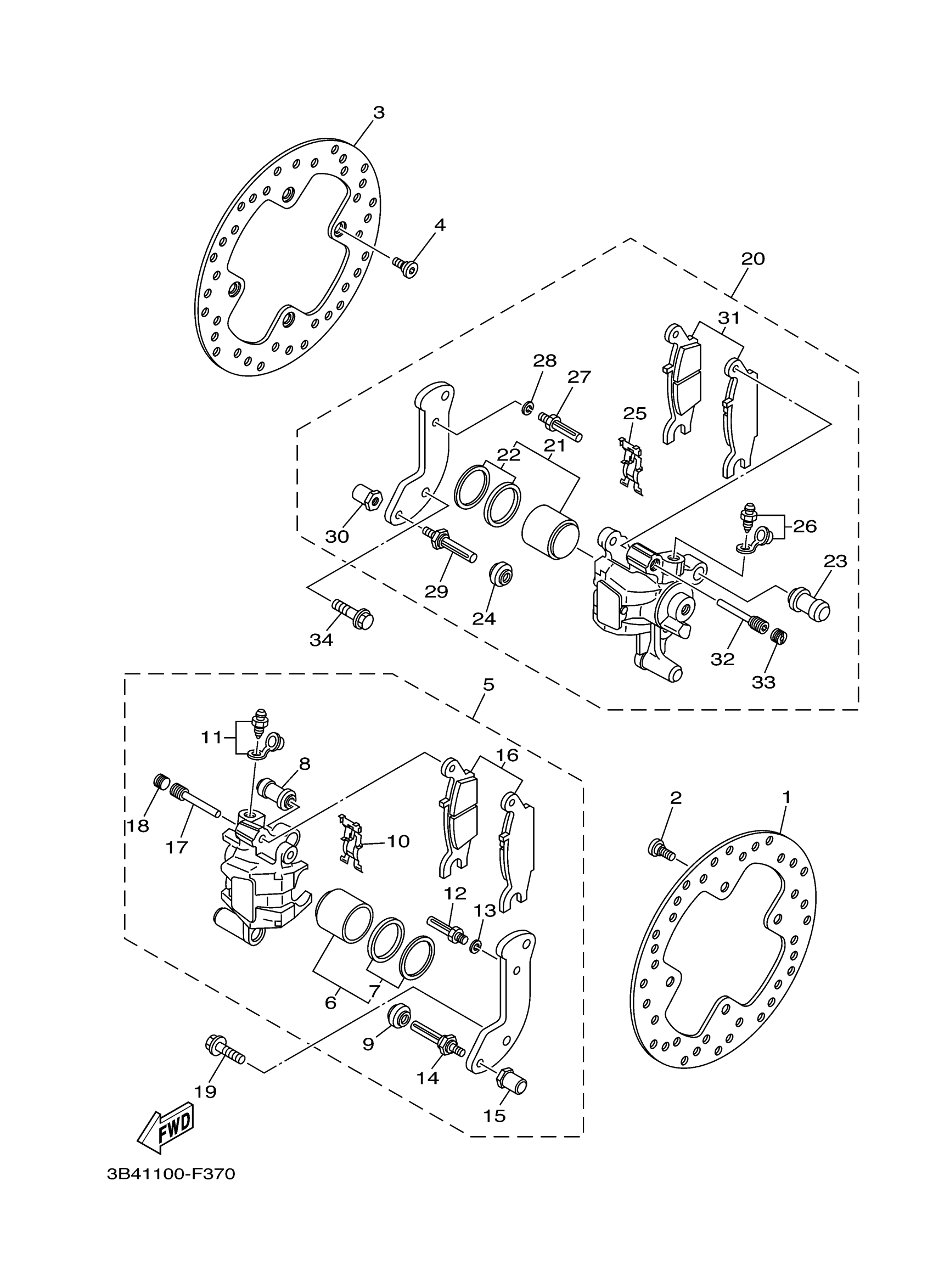

Yamaha YFM70GPASD (GRIZZLY EPS) BYXD 2025 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 1

1HP-F582V-00-00

$64.99

2

BOLT

90109-08087-00

$8.49

3

DISC, REAR BRAKE 1

1HP-F582V-00-00

$64.99

4

BOLT

90109-08087-00

$8.49

5

CALIPER ASSY, REAR 1

3B4-2580V-11-00

$313.99

6

PISTON ASSY, CALIPER

3B4-W0057-20-00

$85.99

7

CALIPER SEAL KIT

3B4-W0047-00-00

$15.49

8

BOOT 2

1UY-25937-51-00

$14.49

9

BOOT, CALIPER

3JD-25917-00-00

$8.99

10

SUPPORT, PAD

5DH-25919-50-00

$20.99

11

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

12

BOLT

1UY-25926-51-00

$4.47

13

WASHER, SPRING

1UY-25938-51-00

Unavailable

14

BOLT

3JD-25926-00-00

$7.99

15

NUT

3JD-25961-00-00

$8.99

16

BRAKE PAD KIT 2

3B4-W0046-00-00

Unavailable

17

PIN, PAD

3GD-25933-00-00

Unavailable

18

PLUG

5DH-25916-00-00

Unavailable

19

BOLT, FLANGE

90105-08161-00

Unavailable

20

CALIPER ASSY, REAR 2

3B4-2580W-11-00

Unavailable

21

PISTON ASSY, CALIPER

3B4-W0057-20-00

$85.99

22

CALIPER SEAL KIT

3B4-W0047-00-00

$15.49

23

BOOT 2

1UY-25937-51-00

$14.49

24

BOOT, CALIPER

3JD-25917-00-00

$8.99

25

SUPPORT, PAD

5DH-25919-50-00

$20.99

26

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

27

BOLT

1UY-25926-51-00

$4.47

28

WASHER, SPRING

1UY-25938-51-00

Unavailable

29

BOLT

3JD-25926-00-00

$7.99

30

NUT

3JD-25961-00-00

$8.99

31

BRAKE PAD KIT 2

3B4-W0046-10-00

Unavailable

32

PIN, PAD

3GD-25933-00-00

Unavailable

33

PLUG

5DH-25916-00-00

Unavailable

34

BOLT, FLANGE

90105-08161-00

Unavailable
