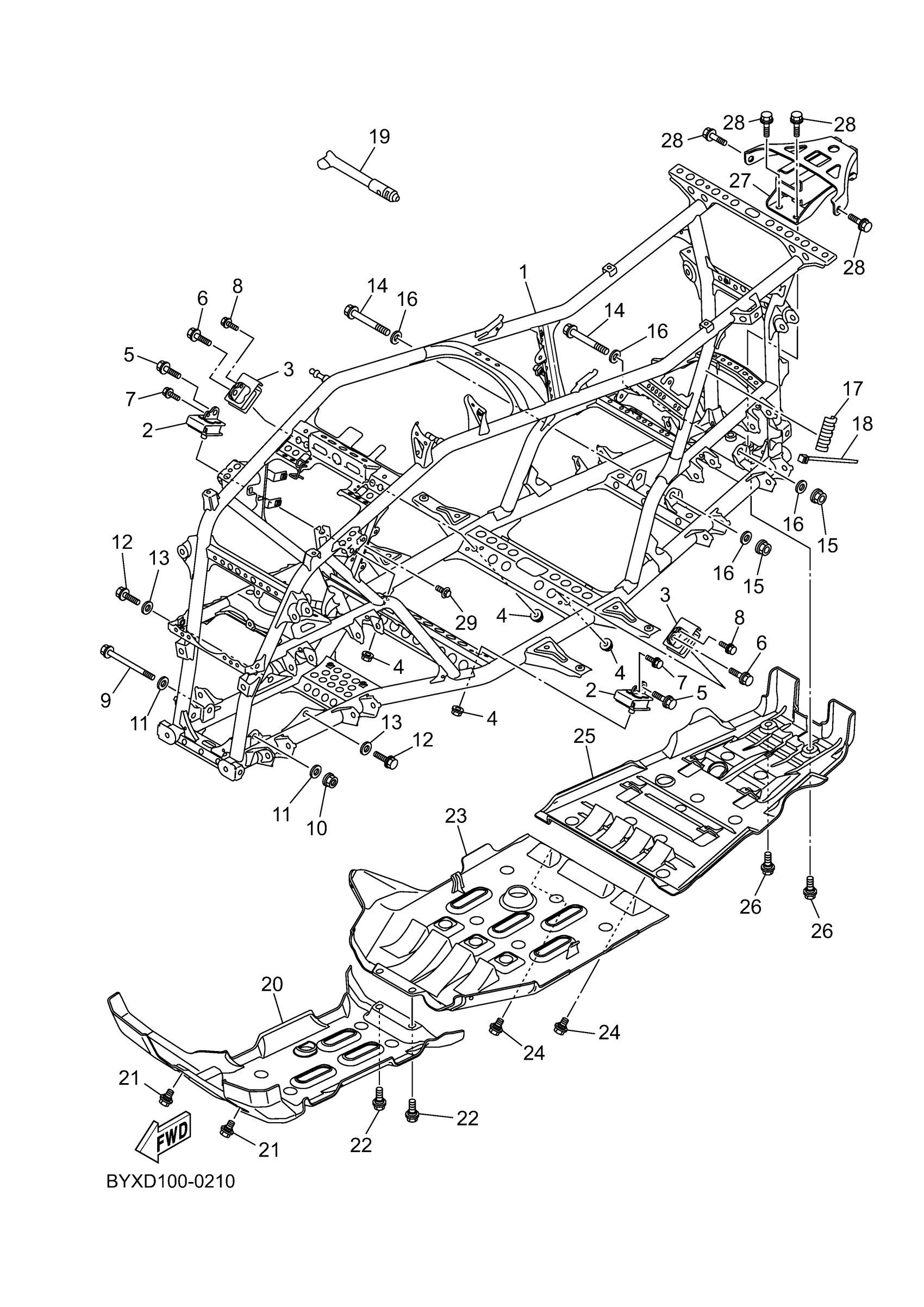

Yamaha YFM70GPASD (GRIZZLY EPS) BYXD 2025 FRAME Diagram
#
Description
Price
1
FRAME COMP.
BYX-F1110-00-00
Unavailable
17
DAMPER
3B4-2113B-01-00
Unavailable
18
CLAMP(JN6)
90464-40825-00
Unavailable
19
GAUGE, AIR
1NV-2811A-01-00
Unavailable
20
GUARD, ENGINE 1
B16-F147A-00-00
Unavailable
21
BOLT
90109-06202-00
Unavailable
22
BOLT
90109-06214-00
Unavailable
23
GUARD, ENGINE 2
1HP-F147E-02-00
Unavailable
24
BOLT
90109-06214-00
Unavailable
25
GUARD, ENGINE 3
B16-F147F-01-00
Unavailable
26
BOLT
90109-06202-00
Unavailable
27
RR HITCH ASSY
2SM-F3802-00-00
Unavailable
28
BOLT, FLANGE
95812-10016-00
Unavailable
29
BLOT, FLANGE DEEP RECESS
95D32-06012-00
Unavailable
