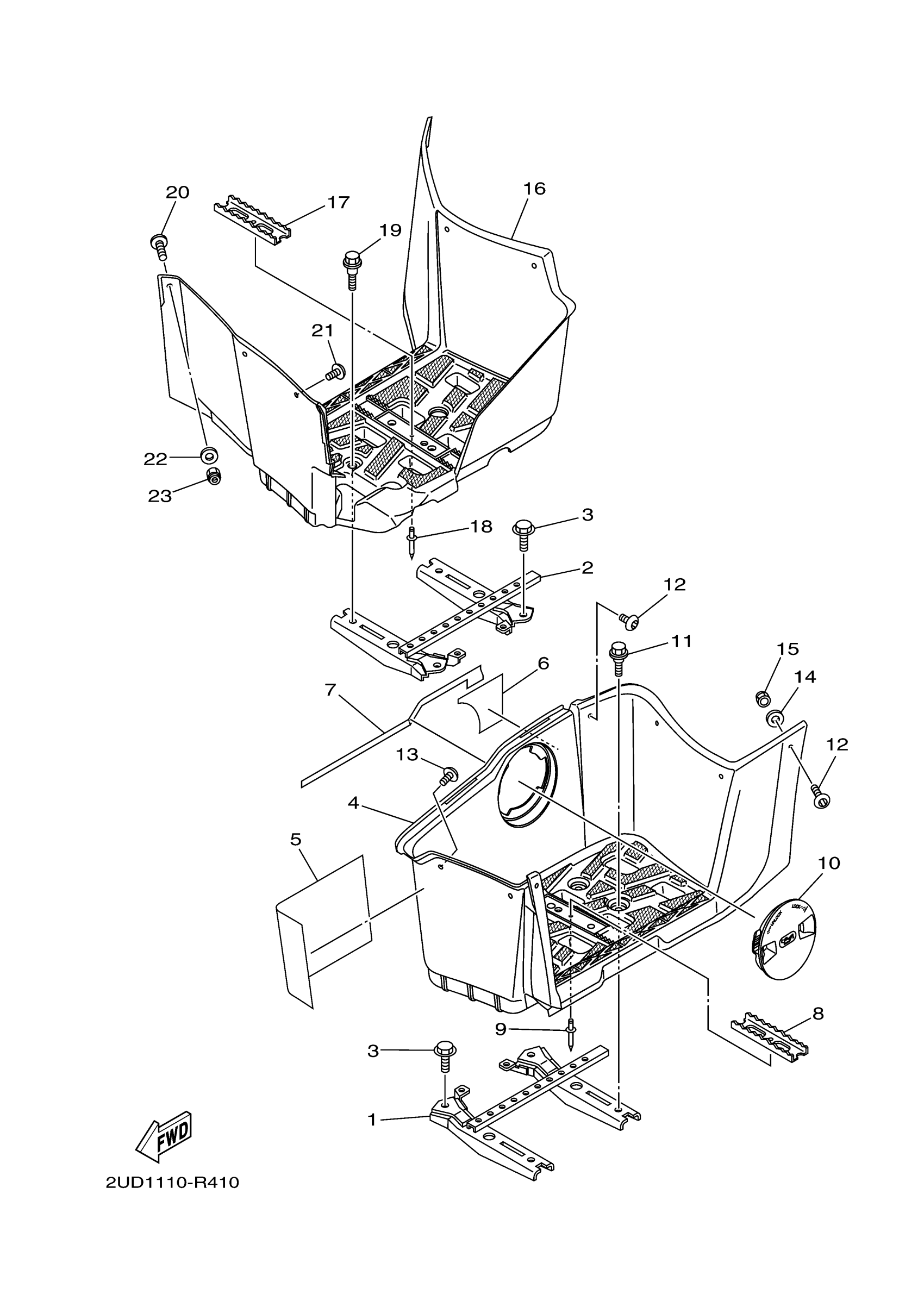

Yamaha YFM70GPAKW (GRIZZLY EPS 4WD) B4FD1 2019 STAND FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST

1HP-F7452-00-00

$58.99

2

BRACKET, FOOTREST

1HP-F7462-00-00

$61.99

3

BOLT, FLANGE

95817-08012-00

$5.49

4

COVER 1

1HP-F7453-00-00

$67.99

5

SEAL 1

3B4-21732-00-00

$10.99

6

SEAL 3

1HP-F2875-01-00

$6.99

7

SEAL 2

2BG-F2874-01-00

$4.21

8

ARM 1

5UH-F741A-10-00

$5.49

9

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

10

COVER 3

1HP-F8239-00-00

Unavailable

11

BOLT

90109-06043-00

Unavailable

12

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

13

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$5.60

14

WASHER, PLATE

90201-06078-00

$5.60

15

NUT, NYLON

95707-06300-00

$3.50

16

COVER 2

1HP-F7463-00-00

Unavailable

17

ARM 1

5UH-F741A-10-00

$5.49

18

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

19

BOLT

90109-06043-00

Unavailable

20

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

21

BOLT,HEX. SOCKET BUTTON

90111-06137-00

$5.60

22

WASHER, PLATE

90201-06078-00

$5.60

23

NUT, NYLON

95707-06300-00

$3.50
