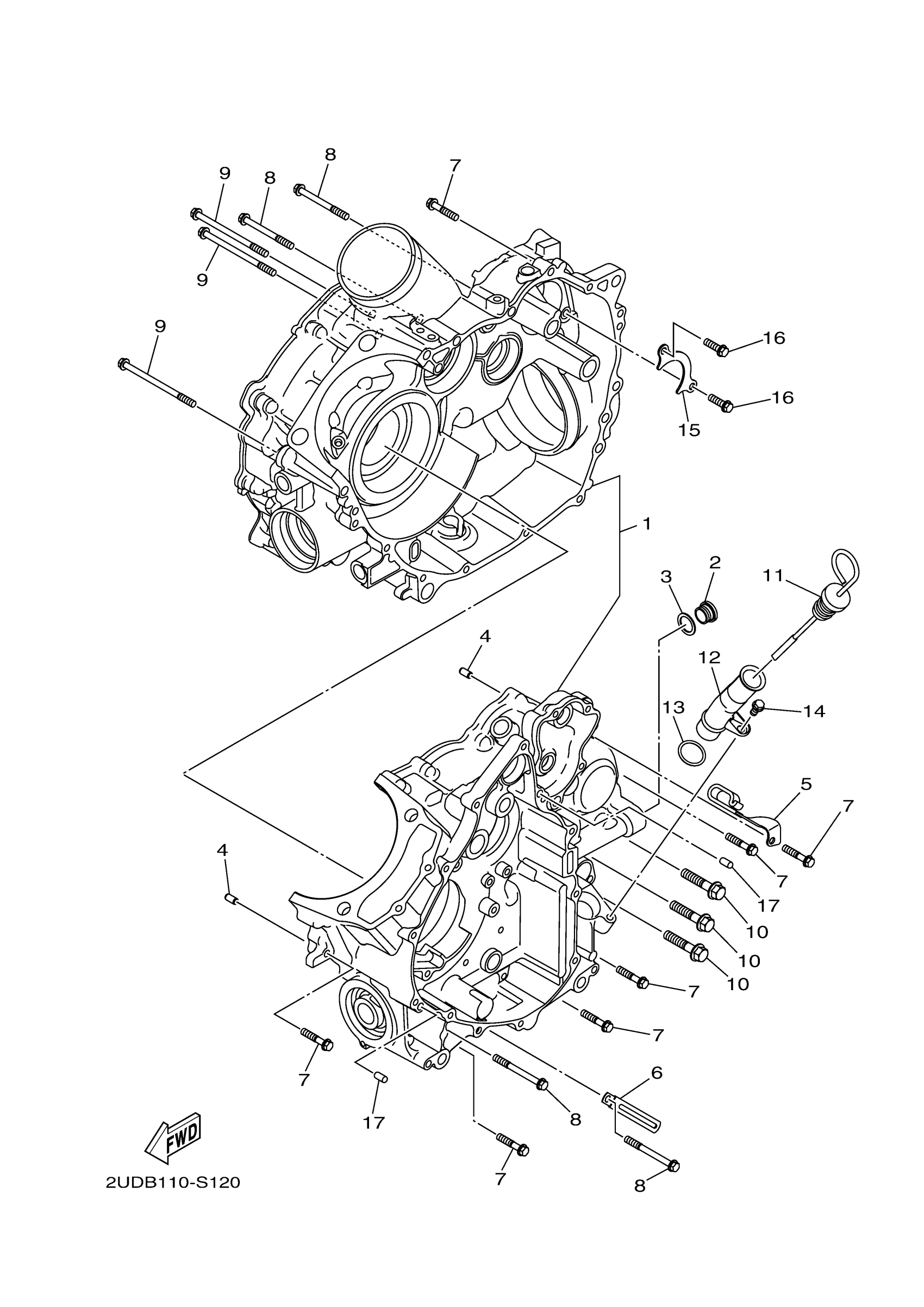

Yamaha YFM70GDXHG (GRIZZLY) B306 2017 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

2MB-E5100-01-00

Unavailable

2

PLUG, BLIND 1

2MB-E5167-00-00

$5.49

3

GASKET, BLIND PLUG

2MB-E5175-00-00

$0.94

4

PIN, DOWEL

2MB-E5184-00-00

$1.98

5

HOLDER

2UD-E546C-00-00

Unavailable

6

CLAMP 2

B16-E5484-00-00

$2.55

7

BOLT 1

2MB-E5481-50-00

Unavailable

8

BOLT 1

2MB-E5481-C0-00

$1.98

9

BOLT 1

2MB-E5481-90-00

$3.90

10

BOLT

2MB-E2623-00-00

Unavailable

11

PLUG, OIL LEVEL

3B4-15362-01-00

$25.99

12

PIPE, OIL

3B4-15112-02-00

$56.99

13

O-RING

2MB-E2439-00-00

$4.84

14

BOLT 1

2MB-E5481-60-00

$1.40

15

PLATE, BEARING COV

2MB-E5388-00-00

$6.99

16

BOLT 1

2MB-E5481-10-00

Unavailable

17

PIN, DOWEL

2MB-E5184-00-00

$1.98
