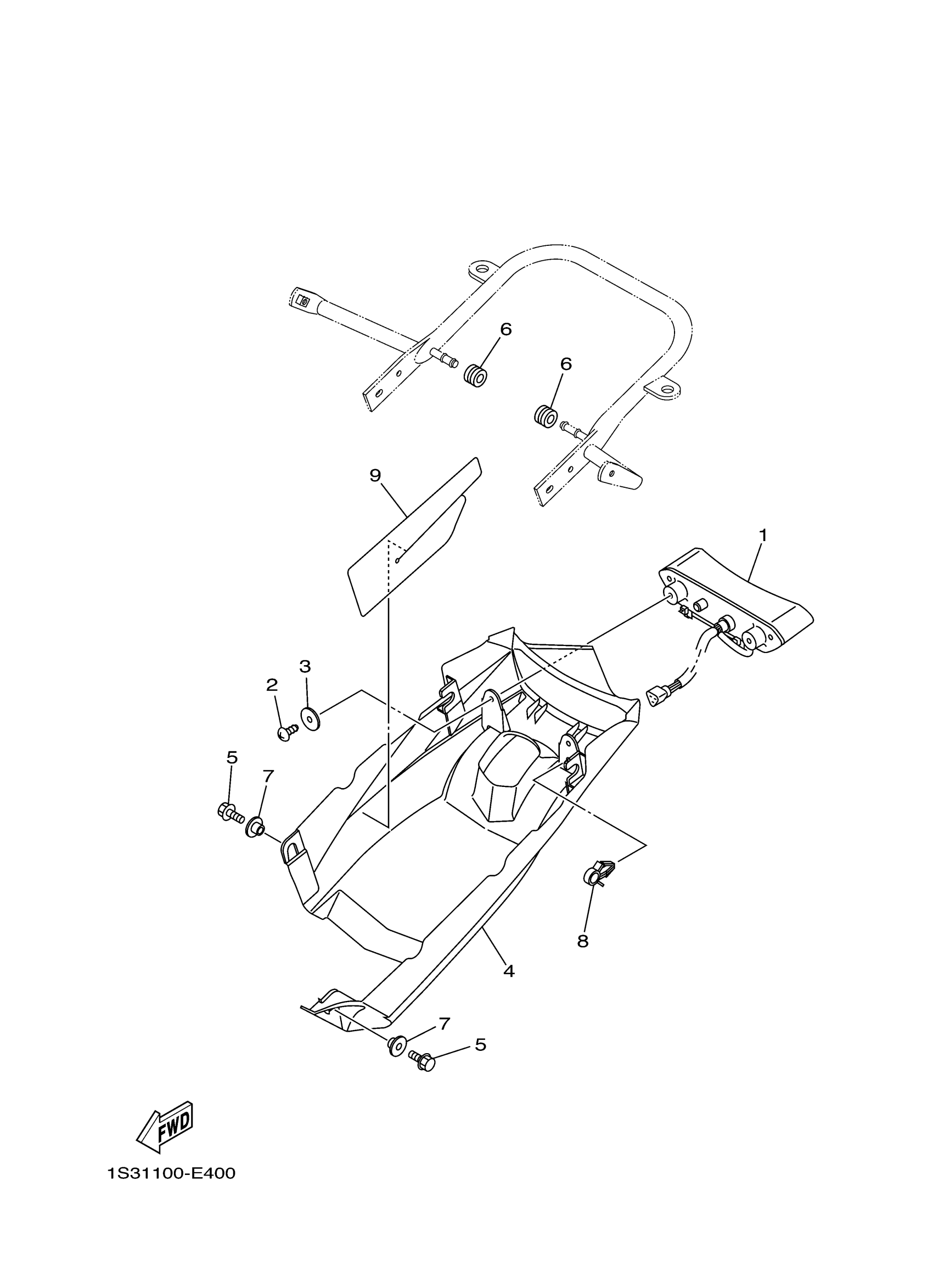

Yamaha YFM700RV (RAPTOR 700) 1S31 2006 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

1S3-84710-01-00

$141.35

2

SCREW, TAPPING(4MV)

97707-50016-00

$1.16

3

WASHER PLATE 829771780000

90201-05033-00

$6.62

4

COVER, TAILLIGHT

1S3-84716-00-00

$52.60

4

COVER, TAILLIGHT

1S3-84716-10-00

$55.57

5

BOLT, FLANGE

95817-06010-00

$3.65

6

GROMMET 839774310000

90480-14023-00

$4.34

7

COLLAR (8G8)

90387-06648-00

$6.62

8

CLAMP(3XV)

90464-15157-00

$5.75

9

DAMPER, TAIL 1

1S3-84736-00-00

$4.66
