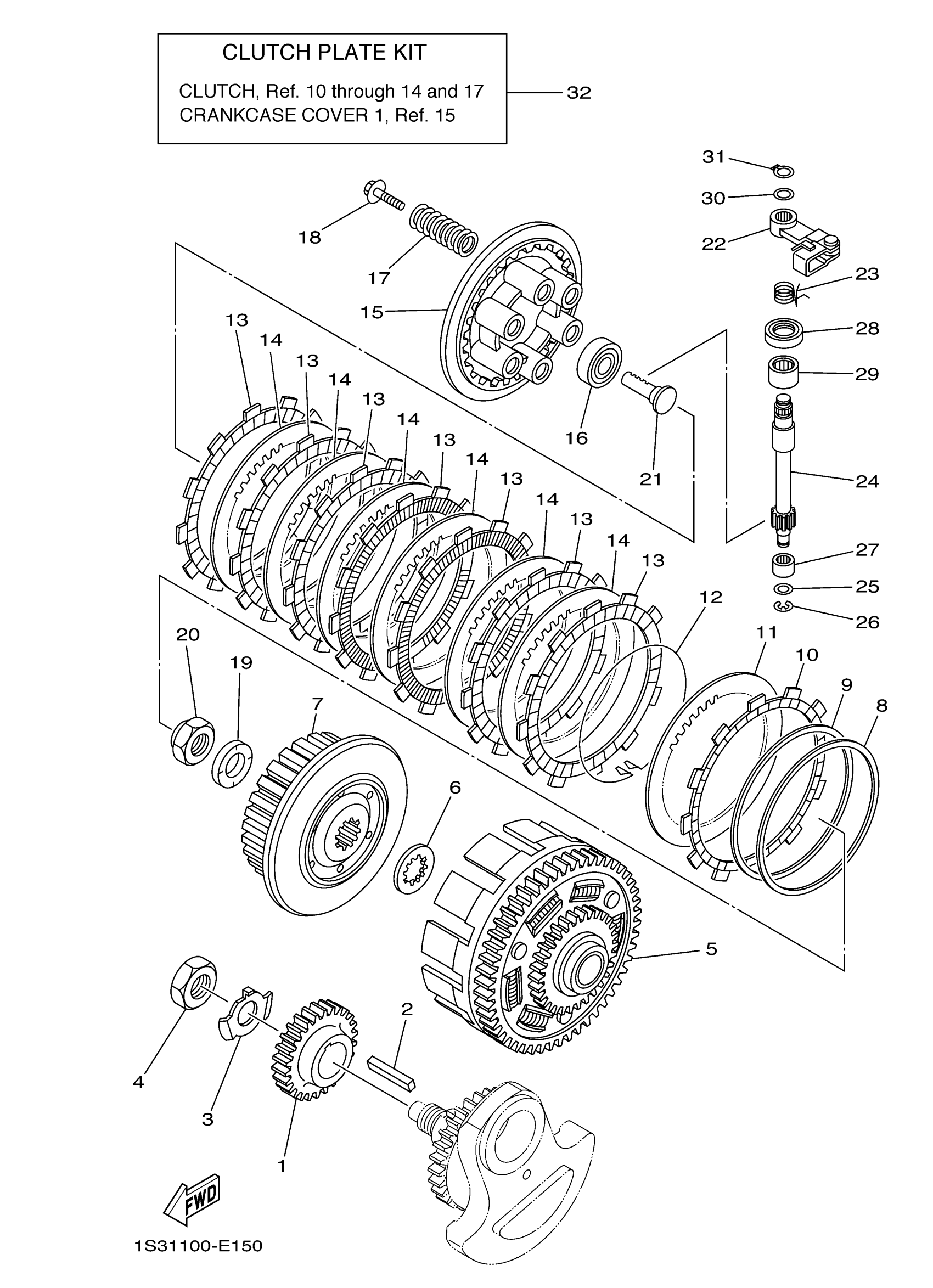

Yamaha YFM700RV (RAPTOR 700) 1S31 2006 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

1S3-16111-00-00

$112.82

2

KEY, STRAIGHT

90282-07003-00

$9.09

3

WASHER, LOCK

90215-20006-00

$5.23

4

NUT (4X7)

90170-20274-00

$12.93

5

PRIMARY DRIVEN GEAR COMP.

1S3-16150-00-00

$293.43

6

PLATE, THRUST 1

2JN-16154-00-00

$16.92

7

BOSS, CLUTCH

1S3-16371-00-00

$118.55

8

PLATE, SEAT

5JG-16384-00-00

$33.60

9

SPRING, CLUTCH BOSS

5JG-16383-00-00

$34.85

10

PLATE, FRICTION 2

5TG-16331-00-00

$13.33

11

PLATE, CLUTCH 2

4X7-16325-10-00

$14.64

12

RING, CLUTCH BOSS

4X7-16385-00-00

$3.98

13

PLATE, FRICTION

5TA-16321-00-00

$21.48

14

PLATE, CLUTCH 2

4X7-16325-10-00

$14.64

15

PLATE, PRESSURE 1

1S3-16351-00-00

$62.23

16

BEARING(2JN)

93306-00315-00

Unavailable

17

SPRING, COMPRESSION(3GM)

90501-230E4-00

Unavailable

18

SCREW, WITH WASHER

90159-06029-00

Unavailable

19

WASHER, CONICAL SPRING

90208-20001-00

Unavailable

20

NUT

90179-20022-00

Unavailable

21

ROD, PUSH 1

4XV-16356-01-00

Unavailable

22

PUSH LEVER ASSY

3LD-16340-01-00

Unavailable

23

SPRING, TORSION

90508-18018-00

Unavailable

24

AXLE, PUSH LEVER

5EB-16382-00-00

Unavailable

25

WASHER(6TA)

92907-08600-00

Unavailable

26

CIRCLIP

99080-07600-00

$2.82

27

BEARING

93317-11096-00

Unavailable

28

OIL SEAL (3X3)

93102-15212-00

Unavailable

29

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

30

WASHER, PLATE (2W5)

90201-10614-00

Unavailable

31

CIRCLIP(10W)

99009-10400-00

Unavailable

32

CLUTCH PLATE KIT

1S3-W001G-00-00

Unavailable
