Description

Price

1

HANDLEBAR

1S3-26111-10-00

$94.99

2

GRIP (LEFT)

5LP-26241-00-00

$24.99

3

PROTECTOR, HANDLEBAR

1S3-26124-00-00

$17.49

4

THROTTLE LEVER ASSY

4KB-26250-22-00

$162.99

5

CAP, GEAR

4KB-2628F-20-00

$36.99

6

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

7

SCREW(3HE)

90149-04278-00

$2.39

8

SCREW, PAN HEAD

98517-05020-00

$4.25

9

NUT, U

95617-05100-00

$9.49

10

NUT, HEXAGON SMALL

95317-05700-00

$8.49

11

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

12

SPRING

1NV-26304-00-00

$11.99

13

GASKET

4KB-2628G-00-00

$13.49

14

WASHER

1NV-26129-00-00

$6.99

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

BAND, SWITCH CORD

437-83936-01-00

Unavailable

17

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

18

SCREW, PAN HEAD

98517-05020-00

$4.25

19

WASHER(3SX)

92907-05100-00

Unavailable

20

CABLE, THROTTLE 1

1S3-26311-11-00

Unavailable

21

CABLE, CLUTCH

1S3-26335-01-00

Unavailable

22

REV. LEVER ASSY.

1S3-26150-10-00

Unavailable

23

CABLE, CONTROL 1

1S3-2637E-00-00

Unavailable

24

DAMPER

1S3-26113-00-00

Unavailable

25

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

26

WASHER(1RW)

92907-05600-00

Unavailable

27

CLAMP(4FM)

90464-15195-00

Unavailable

28

CLAMP

90464-25267-00

Unavailable

29

COVER, HANDLE LEVER 1

31A-26372-00-00

Unavailable

30

CABLE, BRAKE

1S3-26341-00-00

Unavailable

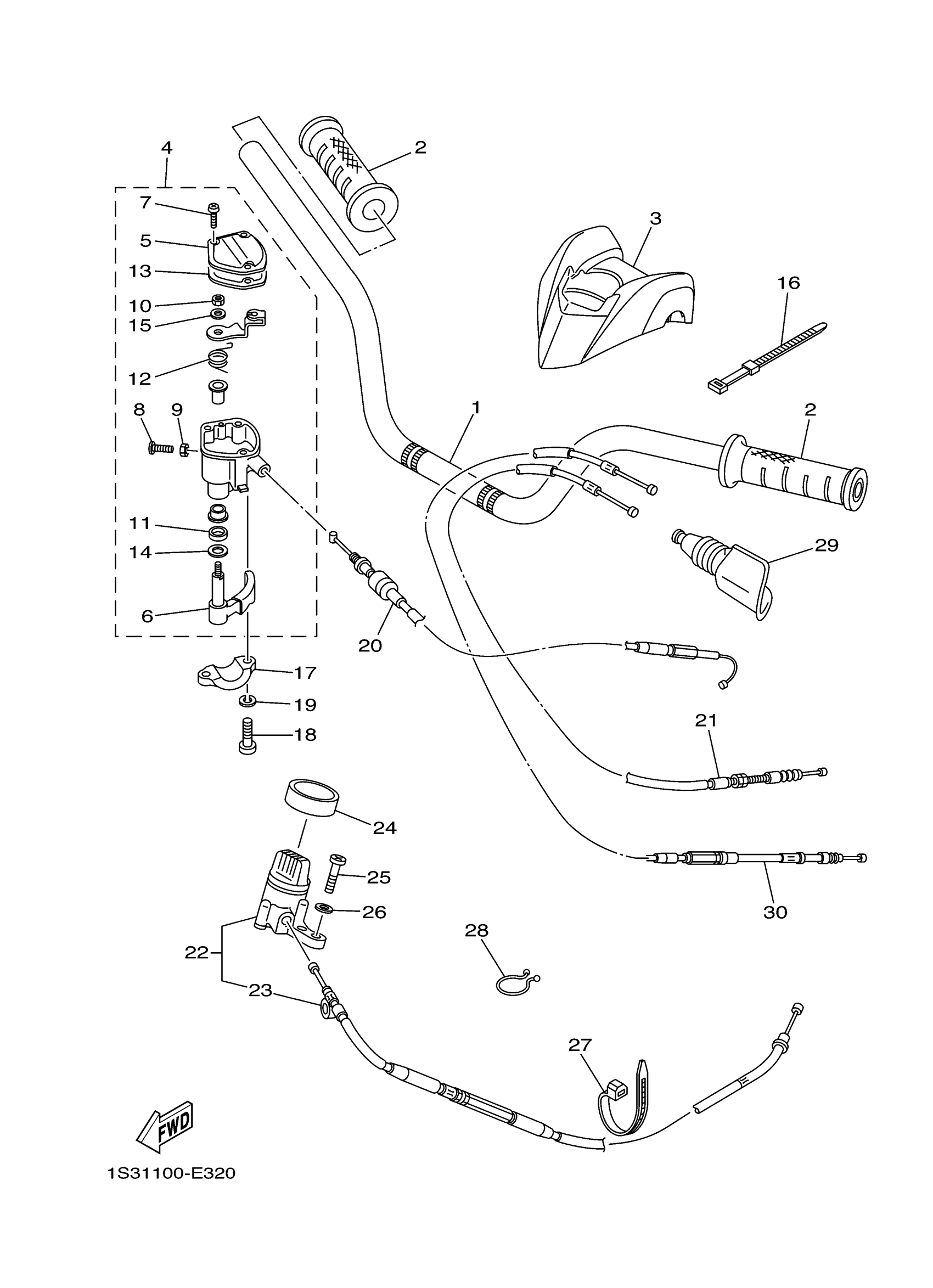

Yamaha YFM700RSPV (RAPTOR 700 50TH ANNIVERSARY) 1S34 2006 STEERING HANDLE CABLE Diagram

HANDLEBAR

GRIP (LEFT)

PROTECTOR, HANDLEBAR

THROTTLE LEVER ASSY

CAP, GEAR

LEVER, THROTTLE

SCREW(3HE)

SCREW, PAN HEAD

NUT, U

NUT, HEXAGON SMALL

OIL SEAL (9X15X4-256)

SPRING

GASKET

WASHER

. WASHER, SPECIAL

BAND, SWITCH CORD

HOLDER, LEVER LOWER

SCREW, PAN HEAD

WASHER(3SX)

CABLE, THROTTLE 1

CABLE, CLUTCH

REV. LEVER ASSY.

CABLE, CONTROL 1

DAMPER

SCREW, PAN HEAD(4MY)

WASHER(1RW)

CLAMP(4FM)

CLAMP

COVER, HANDLE LEVER 1

CABLE, BRAKE
